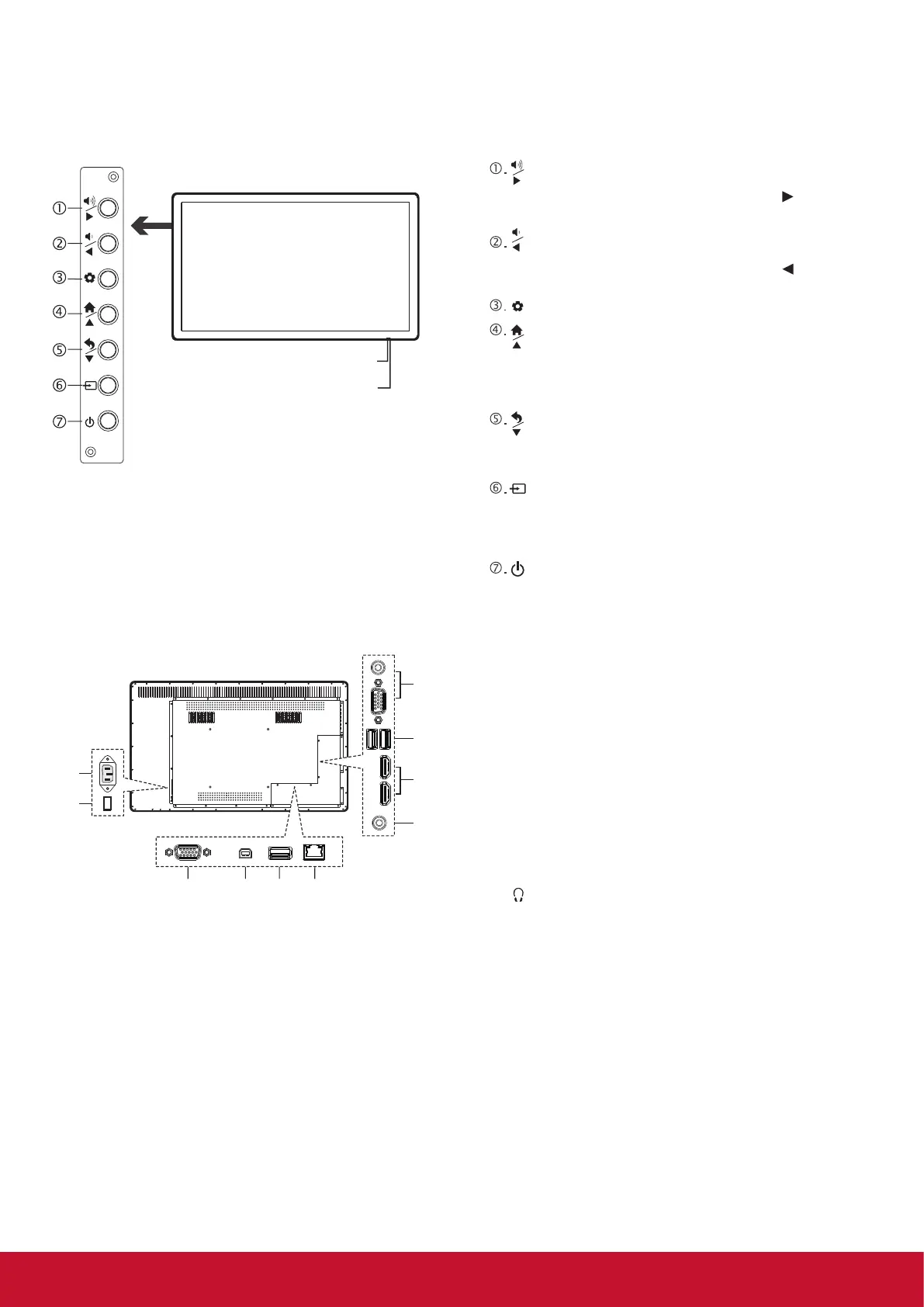

2. Parts and Functions
2.1. Control Panel
Remote Sensor
Power Indicator
: Press the button to volume up.
In the menu, this button also serves as
direction
button.
: Press the button to volume down.
In the menu, this button also serves as
direction
button.
: Press the button to open the setting menu.
: Press the button to display desktop (Home page) on
the screen.
In the menu, this button also serves as ▲ direction
button.
: Press the button to return to previous menu.
In the menu, this button also serves as ▼ direction
button
: Press the button to display input source menu or exit
the menu screen.
In the menu, this button also serves as the OK button.
: Switch the poster power on or standby.
2.2. Input/Output Terminals
2
1
3
8
9
4
5
2
6 7
1. PC IN
Enable connection to PC or other external devices with
VGA/AUDIO ports.
2. USB 2.0/3.0
USB standard interface, enable connection to USB 2.0,
USB 3.0 standard devices. When connecting, please
select the appropriate port.
3. HDMI1/2 Input
To connect with those equipments with HDMI or DVI
interface.HDMI1(MHL): Connect an MHL - enabled device
such as a cell phone to this jack to view the external
device’s screen on your poster. HDMI2(ARC): Connect an
ARC-enabled home theater receiver to this jack.
4.
Connect headphones to this jack. The poster is the current
audio output.
5. RS-232
For service, software upgrades and the other uses.
6. Touch Out
Output the touch for external devices connected to PC or
HDMI port which support touch system.
7. LAN IN
Enable connection to cable and log on to Internet.
8. AC IN
Plug the AC cord into this jack and into a power outlet.
(~100-240V 50Hz/60Hz)
9. Power Switch
Push to (1) to connect the power, push to (O) to cut off.
Note: Power switch can not be covered, and should keep the
power switch can be conveniently operated.
