21

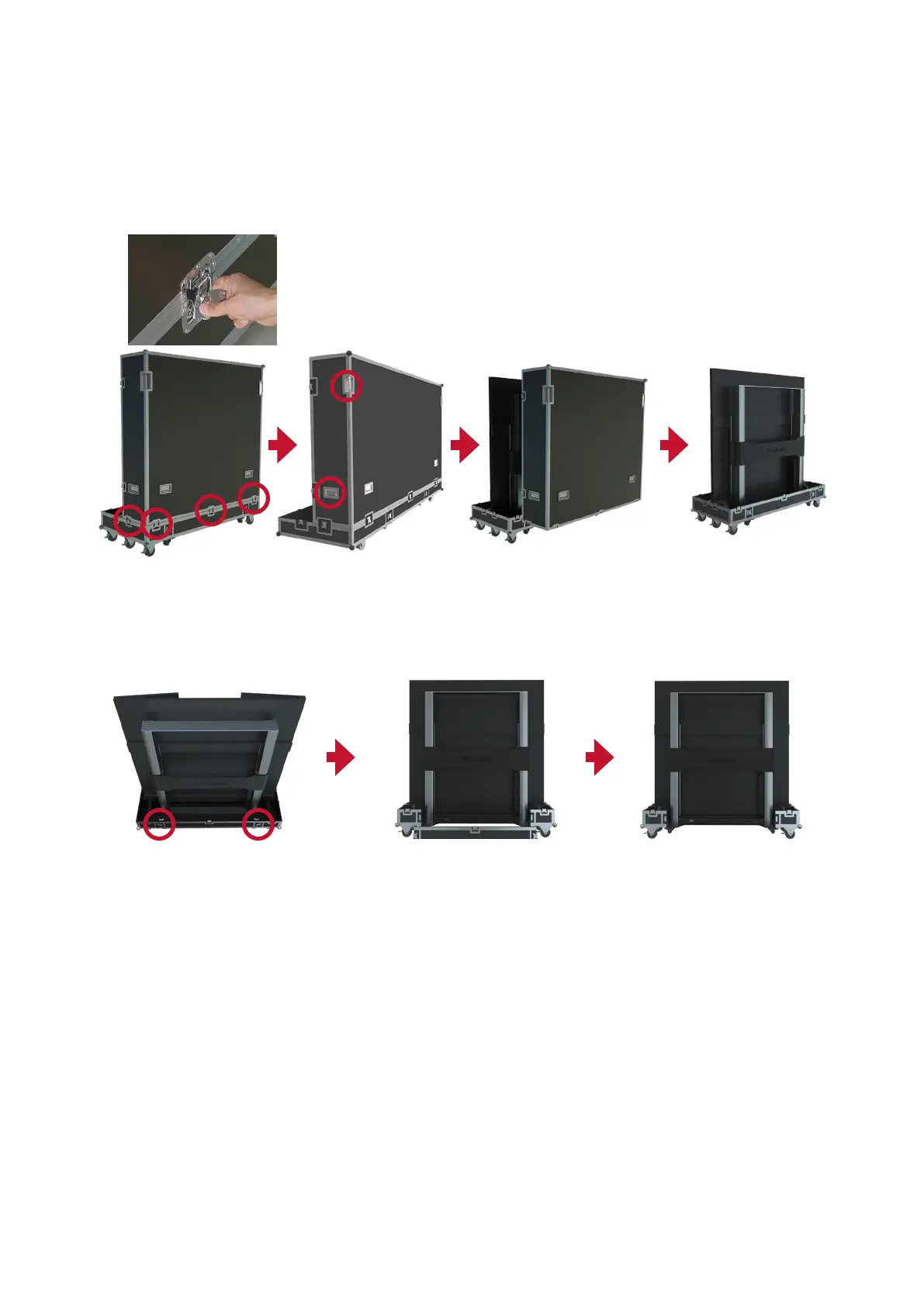

4. As shown below, pull the handle of the lock-ups, and rotate the handle
counterclockwise to unlock the ve (5) lock-ups connecng the Back Cover with
the Boom Plate, ensuring that each lock-up will not be interlocked. Two people
will need to grip the handles, as indicated by the red circles below, and pull.
While liing, li o the Back Cover to another locaon, ensuring to keep the
cover level.
5. As shown in the red circles below, open the four (4) lock-ups of the Movable
plate at the boom of the ight case. Li the Movable plate while holding up the
boom of it. Pull out the Movable plate from behind to separate.
