Function Keys Description:
(a) Key function:
Power switch: This is a “software Key”, Turns the display on and off. The power indicator will lit “Green”
when the display is on.
“1” key: Turn on /off OSD menu / Exist this menu to go back previous menu.
: Down side to select item / decrease value.
: Up side to select item / increase value.
. keys are direct access for Contrast and Brightness adjustment.
(b) “2” key: a select key / go to next sub menu.
(c) Pressing “2” & power keys at same time will enter the factory optimized OSD Menu.
(d) Selected
∩
icon and then pressing “2” key will do demagnetize CDT, if pressing maintain to
more than 3 sec will de force MCU to enter burn in state for production line burning.
(e). Press key will auto adjust the display.

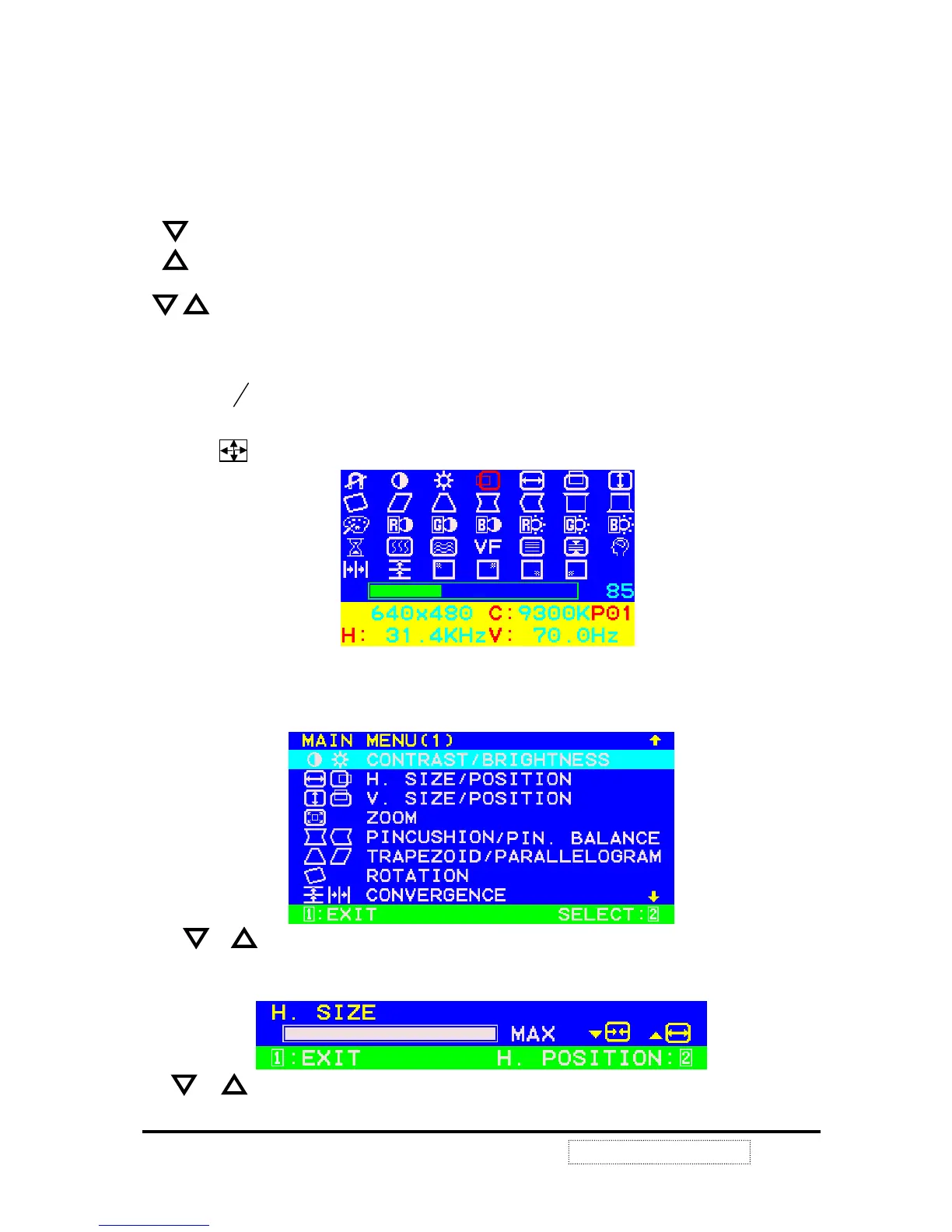

Factory OSD Menu
OSD menu descriptions:
Press “1” key to display a basic main menu (1) shown as below.
Using and keys to move a cyan window bar get your desired items. If it is selected, then pressing
“2” key to display Sub menu as below to start adjustment.
Use and to decrease / increase value on selected item. Noted that the menu can do two items
adjust pressing “2” change to another one in toggle.
ViewSonic Corporation
Confidential – Do Not Copy
P90f-1
To Next Page
