6.

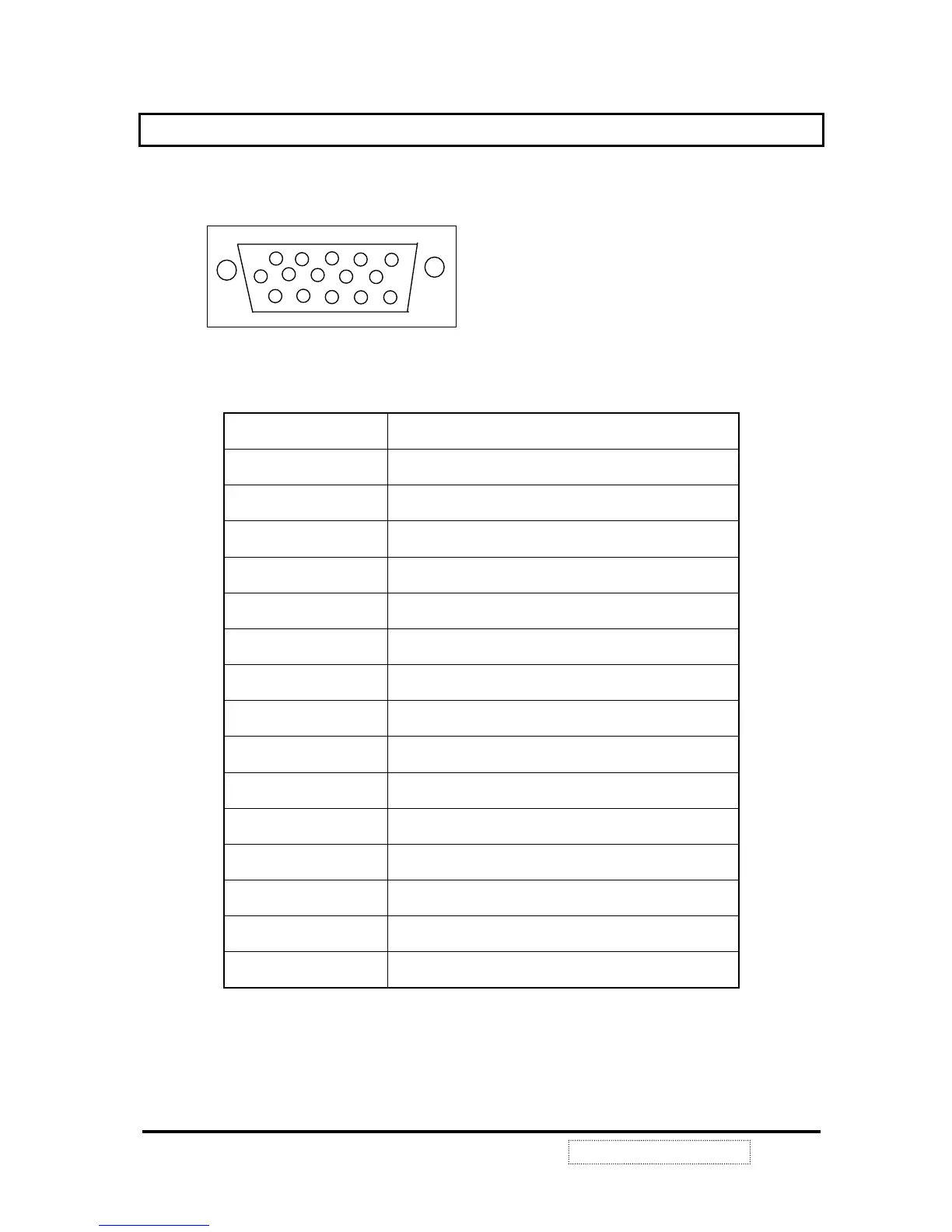

CONNECTOR PIN ASSIGNMENTS
6-1 The Pin-assignments of the 15pin D-sub male miniature connector are shown
below:
6-2 15 Pin Min D-sub male connector
PIN NO PIN DESCRIPTION
1 RED
2 GREEN
3 BLUE
4 NO CONNECTION
5 GROUND
6 R-GROUND
7 G-GROUND
8 B-GROUND
9 +5V PC97
10 GROUND
11 NO CONNECTION
12 SDA FOR DDC
13 H.SYNC.
14 V.SYNC.
15 SCL FOR DDC
