ViewSonic PJ560D User Manual

ViewSonic 6 PJ557DC/PJ559DC/PJ560DC

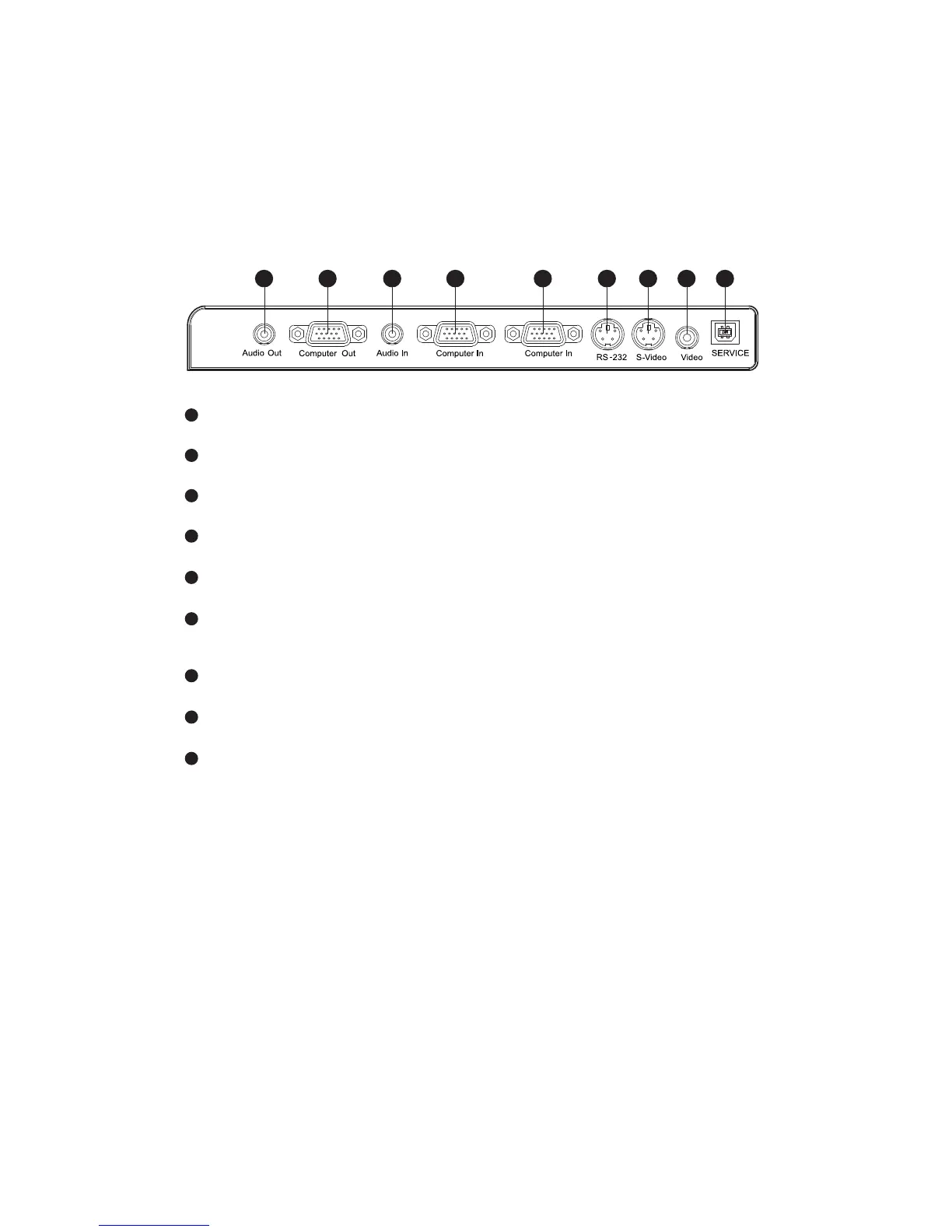

Connection Ports
Audio Out
Connect to a speaker or other audio input equipment.
Computer Out
Connect to a computer display, etc.
Audio In
Connect an audio output from video equipment to this jack.
Computer In
Connect image input signal (analog RGB or component) to this jack.
Computer In
Connect image input signal (analog RGB or component) to this jack.
RS-232
When operating the projector via a computer, connect this to the controlling computer's
RS-232C port.
S-Video
Connect S-Video output from video equipment to this jack.
Video
Connect composite video output from video equipment to this jack.
SERVICE
This connector is for firmware update.
1 2 3 4 5 6 7 8 9
1
2
3
4
5
6
7
8
9

ViewSonic PJ560D Specifications

General

Brand	ViewSonic
Model	PJ560D
Category	Projector
Language	English
