ViewSonic TD1630-3 User Manual

5

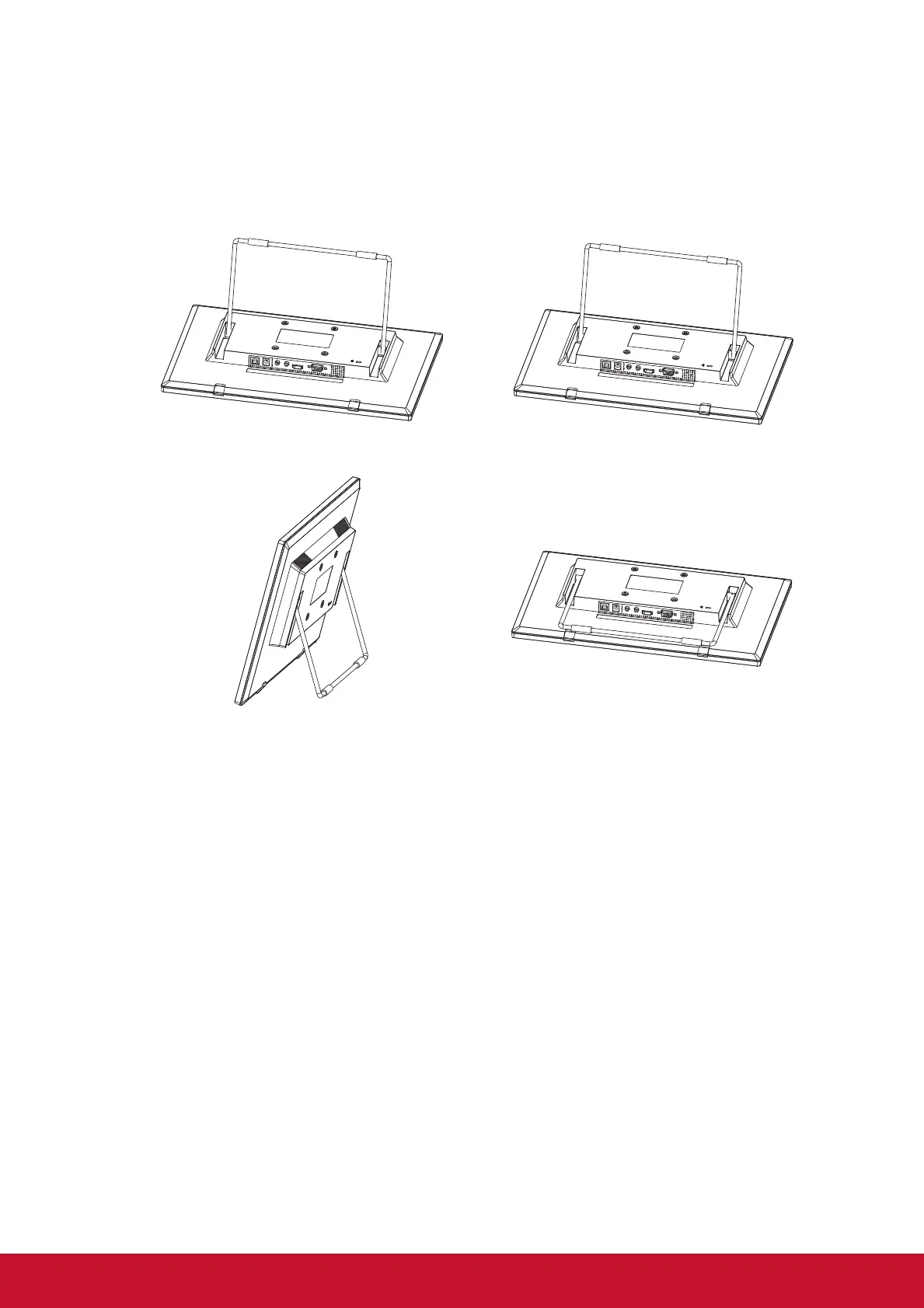

Hardware Installation
A. Pull the stand upwards
B. Pull the stand downwards
1
1
2 2

ViewSonic TD1630-3 Specifications

General

Panel type	TN
Pixel pitch	0.252 x 0.252 mm
Screen shape	Flat
Response time	12 ms
Display diagonal	15.6 \
Touch technology	Multi-touch
Touchscreen type	Multi-user
Display brightness	220 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	56 - 75 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 61 kHz
Touchscreen technology	Projected capacitive system
Viewing angle, vertical	60 °
Contrast ratio (typical)	500:1
Display number of colors	262144 colors
Display diagonal (metric)	39.6 cm
Viewing angle, horizontal	90 °
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 720 (HD 720), 1366 x 768
Number of simultaneous touchpoints	10
Certification	CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
Product color	Black
Display viewable area (HxV)	344.23 x 193.54 mm
Cables included	AC, Audio (3.5mm), USB, VGA
Audio input	1
HDMI version	1.4
Tilt angle range	15 - 50 °
Panel mounting interface	75 x 75 mm
AC input voltage	100-240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.5 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Package depth	86 mm
Package width	453 mm
Package height	389 mm
Package weight	2500 g
NVIDIA G-SYNC	No
Windows operating systems supported	Windows 10, Windows 7, Windows 8
RMS rated power	2 W
Number of speakers	2
Sustainability certificates	CE, ErP, REACH, RoHS
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	37.15 mm
Width (with stand)	379.24 mm
Height (with stand)	247.12 mm
Weight (with stand)	1320 g
