Making Connecons
Connecng to Power
AC Adapter

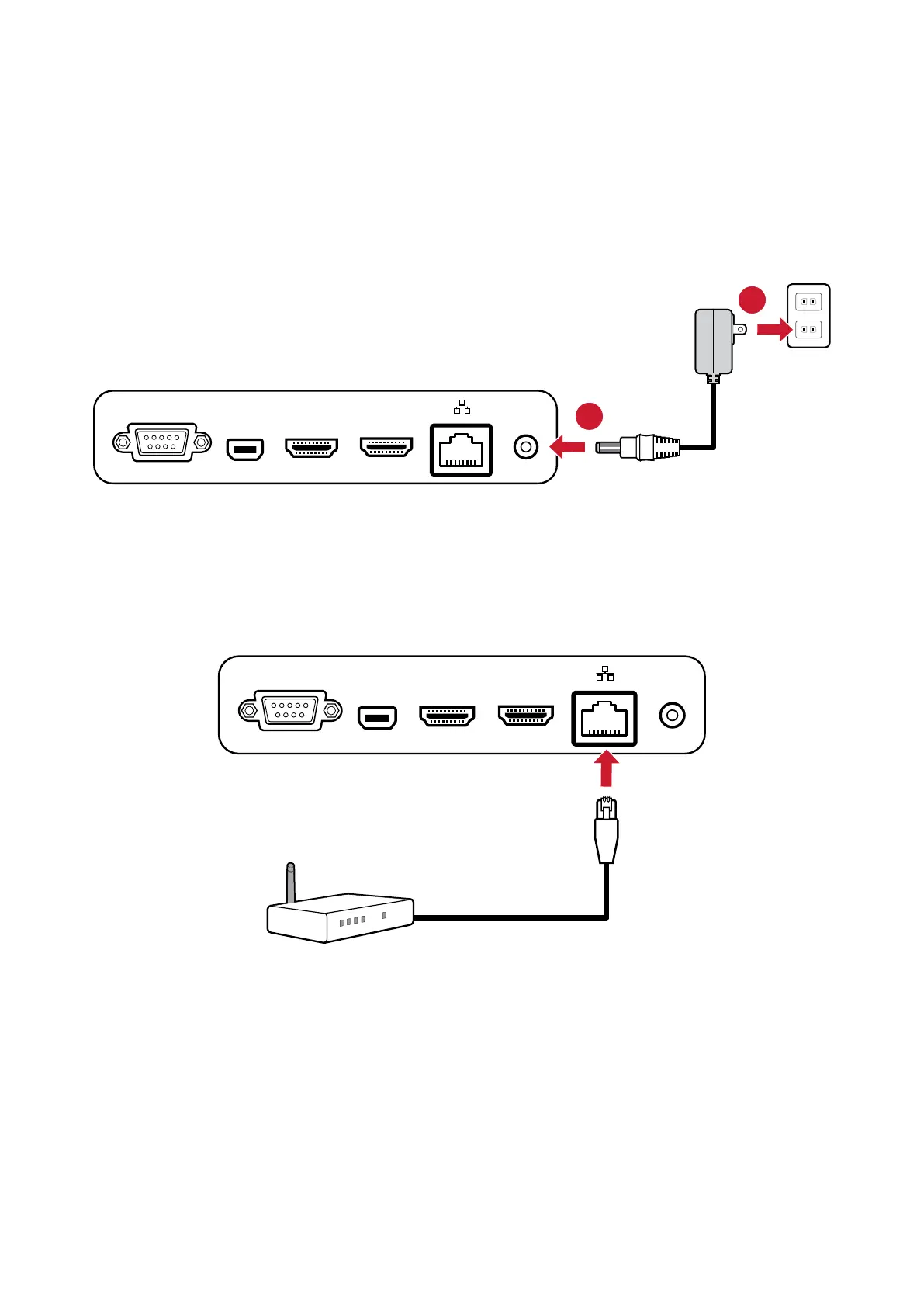

1. Connect the power cord to the POWER jack at the rear of the VBS200-A.
2. Plug the AC adapter into a power outlet.
REWOPNI IMDHPD INIM232SR HDMI OUT
REWOPNI IMDHPD INIM232SR HDMI OUT
1
2
RJ45 Cable
PoE (Power over Ethernet)
The VBS200-A supports PoE (Power over Ethernet) when connected to a Power
Device (PD) or Power Source Equipment (PSE) and can power itself via the LAN
port.
REWOPNI IMDHPD INIM232SR HDMI OUT
REWOPNI IMDHPD INIM232SR HDMI OUT
1
2
RJ45 Cable
1. Connect a Power Device (PD) or Power Source Equipment (PSE) to a power
outlet.
2. Connect one end of a RJ45 cable to the Power Device (PD)/Power Source
Equipment (PSE).
3. Connect the other end of the RJ45 cable to the LAN port of the VBS200-A.
NOTE: If both AC Adapter and PoE power sources are available, the VBS200-A
will use the AC adapter as the main power source.
