ViewSonic VBS200-A - Connecting to External Devices; Display Device Connection

12
Connecng to External Devices
Display Device Connecon

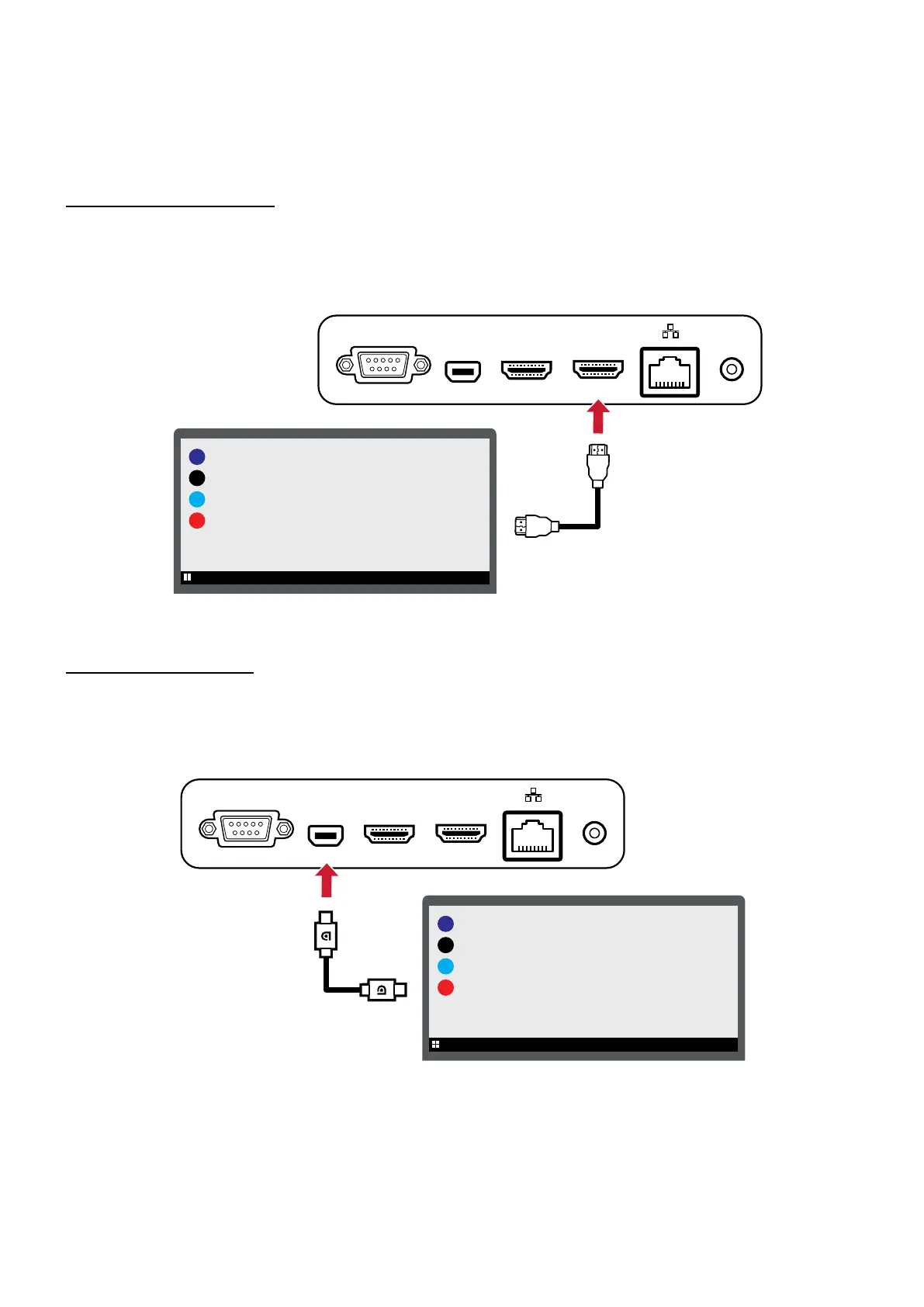

The VBS200-A can connect to an external display via HDMI or DisplayPort.
HDMI Out Connecon
To display content from the VBS200-A, connect one end of an HDMI cable to the
HDMI port of your display device. Then connect the other end of the cable to the
HDMI OUT port of the VBS200-A.
RESET
USB 3.0USB 2.0MICRO SD AUDIO OUT
RESET
USB 3.0USB 2.0MICRO SD AUDIO OUT
REWOPNI IMDHPD INIM232SR HDMI OUT
REWOPNI IMDHPD INIM232SR HDMI OUT
IFP / Monitor
IFP / Monitor
RJ-45
Internet
Router
Serial Port Cable
RJ-45
IFP / Monitor
Projector
Mini DP Connecon
To display content from the VBS200-A, connect one end of a DisplayPort cable to
the DisplayPort port of your display device. Then connect the other end of the cable
to the MINI DP port of the VBS200-A.
RESET
USB 3.0USB 2.0MICRO SD AUDIO OUT
RESET
USB 3.0USB 2.0MICRO SD AUDIO OUT
REWOPNI IMDHPD INIM232SR HDMI OUT
REWOPNI IMDHPD INIM232SR HDMI OUT
IFP / Monitor
IFP / Monitor
RJ-45
Internet
Router
Serial Port Cable
RJ-45
IFP / Monitor
Projector
