Always place the device on a flat, stable surface.
Failure to do so may cause the device to fall and
damage the device and/or result in personal injury.
Wall Mounting
Refer to the table below for the standard dimensions for wall mount kits.
For use only with a UL certified wall mount
kit/bracket. To obtain a wall-mounting kit or height
adjustment base, contact ViewSonic® or your local
dealer.
Maximum
Loading
Hole Pattern (W x
H)
Interface Pad (W x H x
D)
Pad
Hole
Screw Specification &
Quantity
14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm - 4 pieces

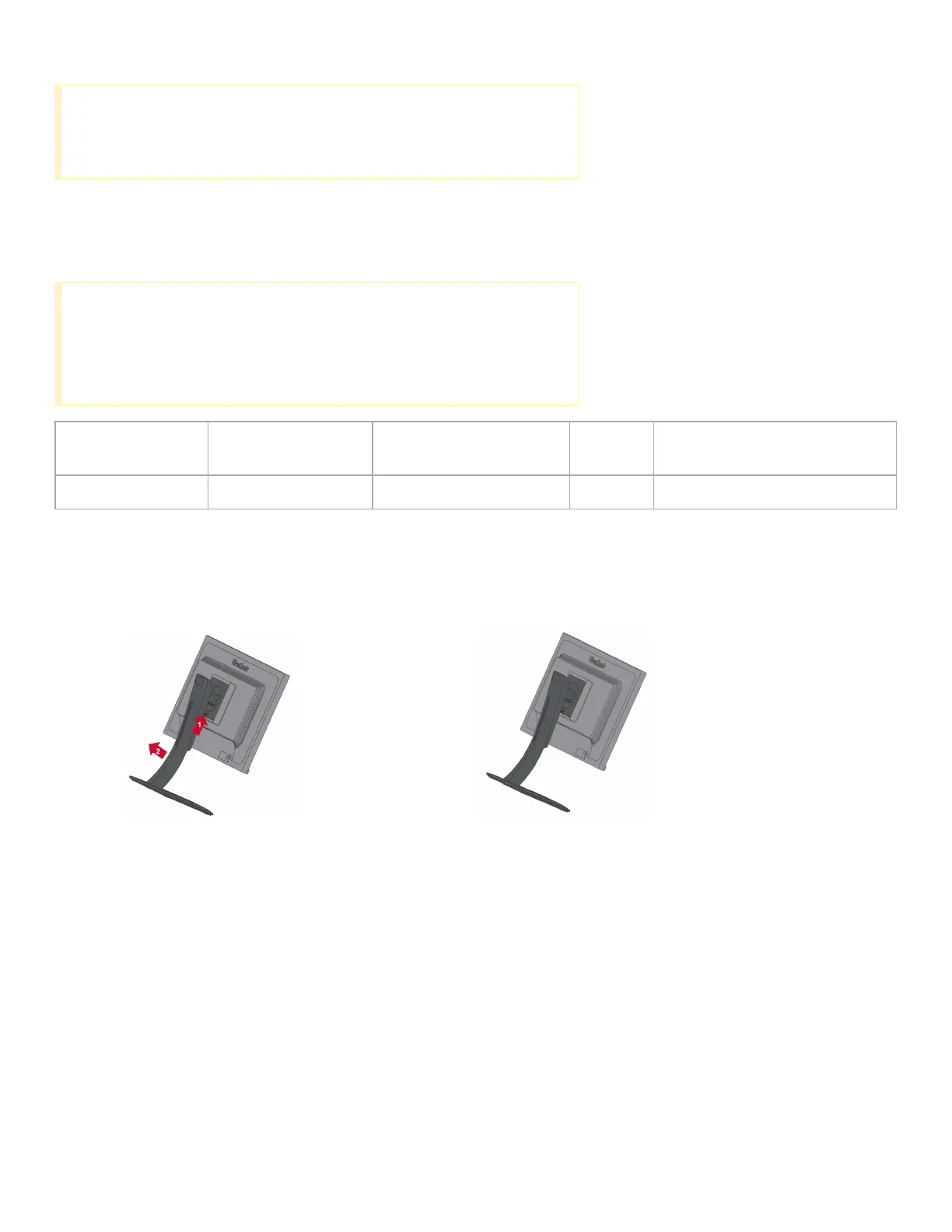

1. Turn off the device and disconnect all cables.
2. Place the device on a flat, stable surface with the screen facing down.
3. Pull down slightly to disengage the hooks and remove the stand.
4. Attach the mounting bracket to the VESA mounting holes at the rear of the monitor. Then secure it
with four (4) screws (M4 x 10 mm).
5. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.
