ViewSonic VX2262WM - 22" LCD Monitor - AP1117 D33 LA(701): DC Power Convert, Convert to 3.3 V; Block Diagram; PIN Descriptions

- 21 –
ViewSonic Corporation
Confidential - Do Not Cop VX2262wm/wmp
AP1117D33LA(701): DC power convert, convert to 3.3v.
SST25LF020A-33-4C-SAE(U402): SST’s serial flash family features a four-wire,
SPI-com-patible interface that allows for a low pin-count package occupying less board
space and ultimately lowering total system costs. The SST25LF020A/040A devices
significantly improve performance, while lowering power consumption. The total energy
consumed is a function of the applied voltage, current, and time of application. The
SST25LF020A/040A devices operate with a single 3.0-3.6V power supply. The
SST25LF020A devices are offered in an 8-lead SOIC 150 mil body width (SA) package.

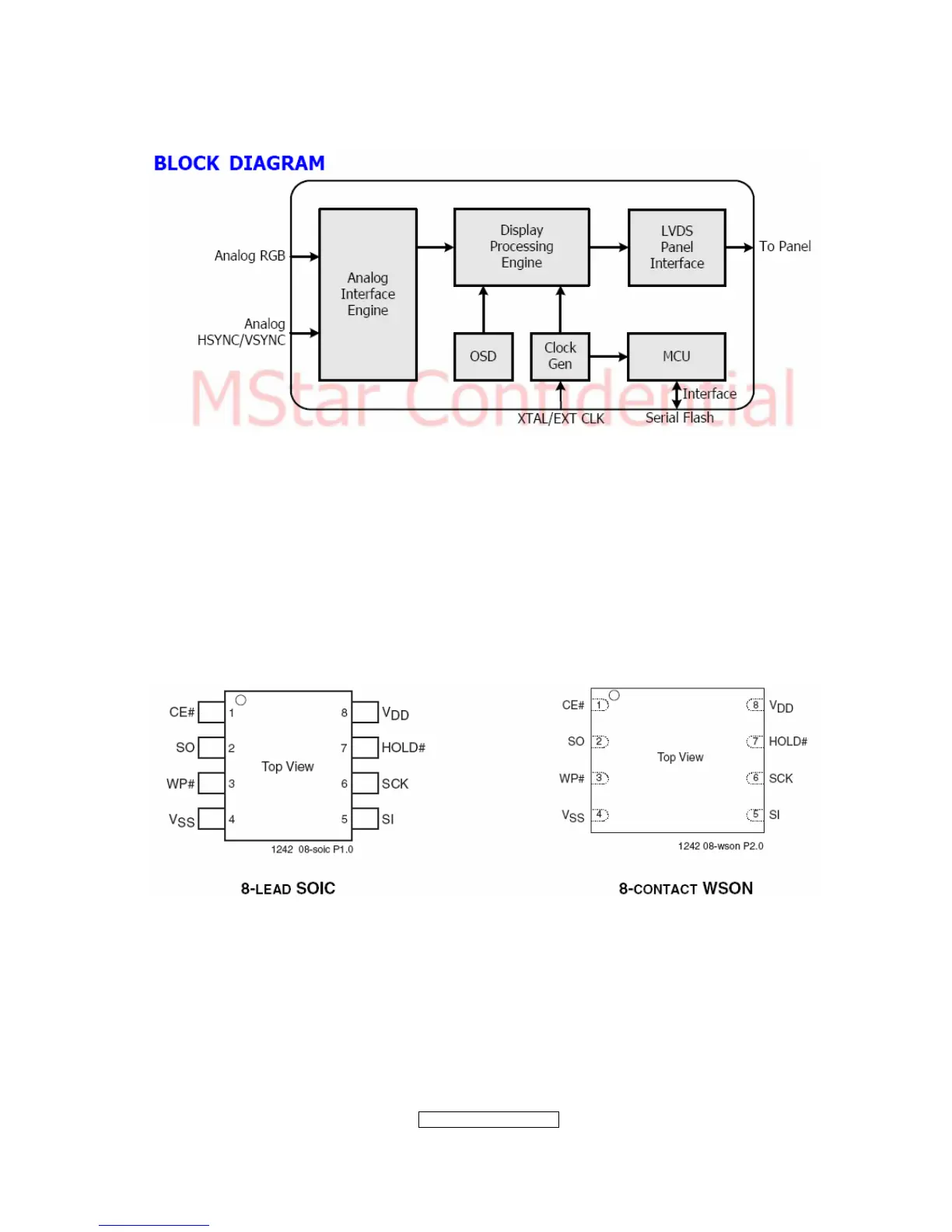

Pin Diagram:
PIN Descriptions:
