ViewSonic VX2262WM - 22" LCD Monitor - Disassemble Process; Tools for Disassembly; Disassembly Procedure; Disassembly Visuals

- 65 –
ViewSonic Corporation
Confidential - Do Not Cop VX2262wm/wmp
9. Disassemble Process
9.1 Units Disassemble Process
9.1.1 Tools
 Glove
 Big cross screwdriver
 Small cross screwdriver
 Prize equipment or abandoned IC card
 Screw box
 Cushion
 Six angle sleeve spanner
9.1.2 Disassemble process
1、 Tide up the worktable, spread straight cushion, put the monitor on it, the front side
adown.（Picture 1）
2、 Remove the decorate slice of the back cover. （Picture 2）
3、 Disassemble the 4 screws that fix the stand, remove the stand.（Picture 3）
4、 Disassemble the screws of the back cover.（Picture 4）
5、 Prize up the bezel, and rip up the bezel downwards.（as showed in the following the
picture 5,6,7,8）
6、 Disassemble the Key board. （picture 9,10）
7、 Remove the bezel, refer to the following picture 11,12 .
8、 Disassemble the 4 pins of the backlight, as showed in the following the picture13,14.
9、 Disassemble the 4 fixed screws of the panel, as showed in the following the
picture15,16.
10、 Lift up the main frame and lift down the LVDS connectors according to the direction of
the arrowhead, refer to the following picture 17,18.
11、 That’s all. The disassemble process of the unit is over.

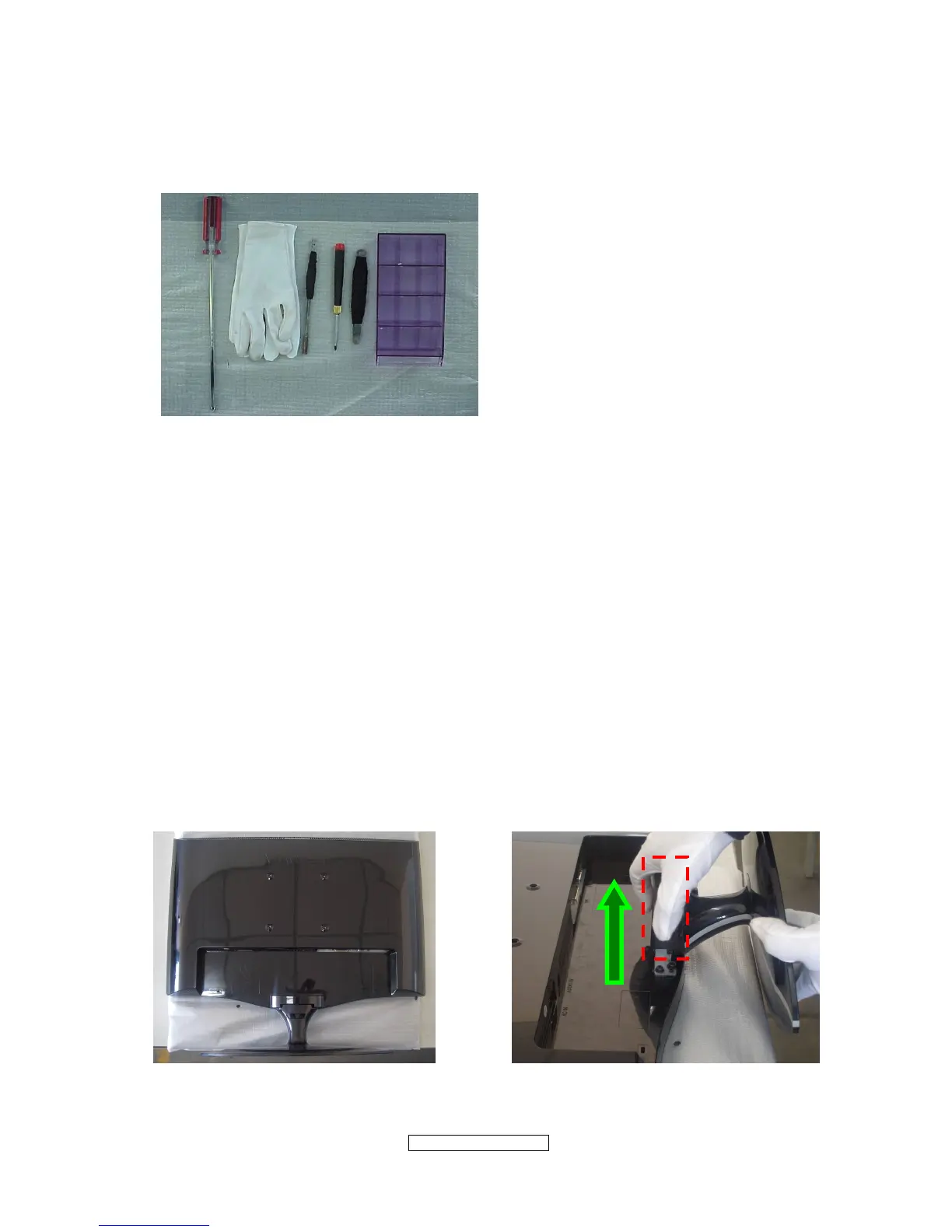

9.1.3 Show pictures
：
（Picture 1） （Picture 2）
