ViewSonic VX2262WM - 22" LCD Monitor User Manual

- 76 –
ViewSonic Corporation
Confidential - Do Not Cop VX2262wm/wmp

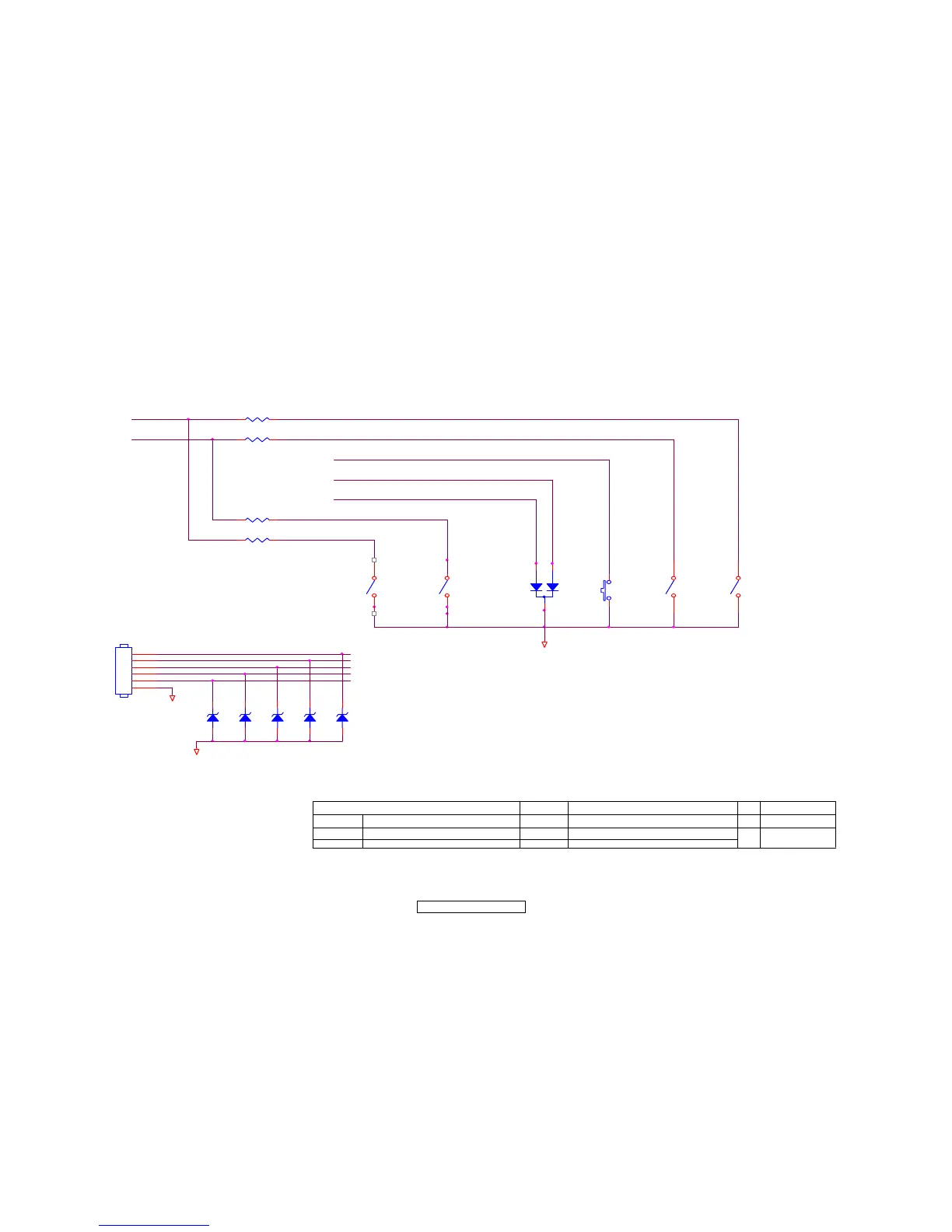

11.7 Key Pad
GND
YELLOW
C
VX2262wm
A
22Thursday , January 03, 2008
715G2970-A
<
称爹 >
1. Key board
G2970-A-X-X-2-071229
OE M MOD EL Size
Rev
Date
Sheet
of
TPV MOD EL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
SW002
BLUE
KEPC8JC5
KEY2
R004 2K OHM 1% 1/10W
BLUE
YELLOW
DOWN
POWER
SW005
SW
D101
UDZSNP5. 6B
POWER
R002 3K 1/10W
UP
SW004
SW
D102
UDZSNP5. 6B
D104
UDZSNP5. 6B
R001 3K 1/10W
KEY1
GND
KEY2
SW001
UP
BLUE
YELLOW
LED001
2
3 1
DOWN
SW3
CN001
CONN
1
2
3
4
5
6
KEY1
D103
UDZSNP5. 6B
D105
UDZSNP5. 6B
R003 2K OHM 1% 1/10W
KEY2
KEY1
GND
POWER
