- 24 –
ViewSonic Corporation
Confidential - Do Not Cop VX2262wm/wmp
TL494IDR(IC801): The TL494 incorporates all the functions required in the construction
of a pulse-width-modulation (PWM) control circuit on a single chip. Designed
primarily for power-supply control, this device offers the flexibility to tailor the
power-supply control circuitry to a specific application.

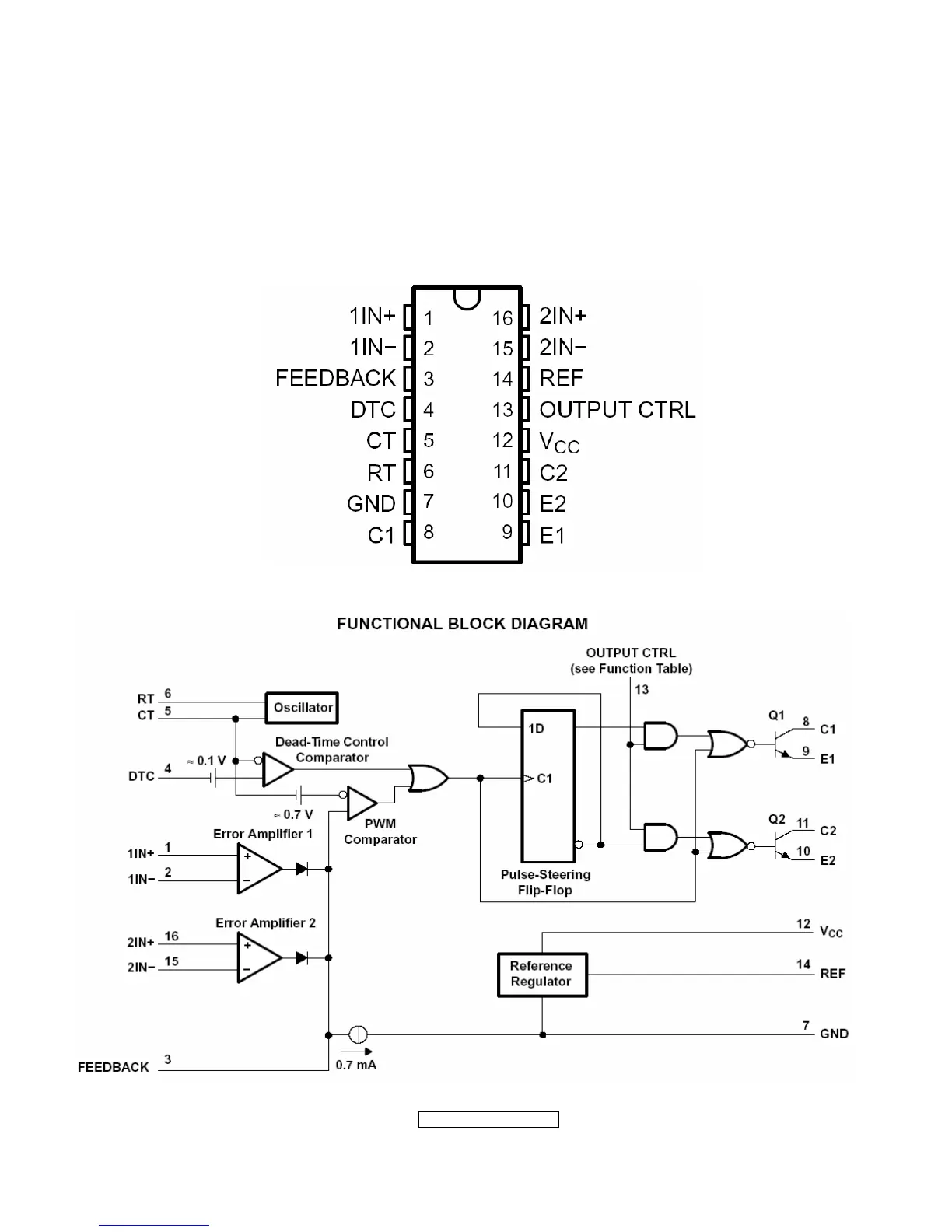

PIN Descriptions:
