ViewSonic VX910 Service Manual

2.3

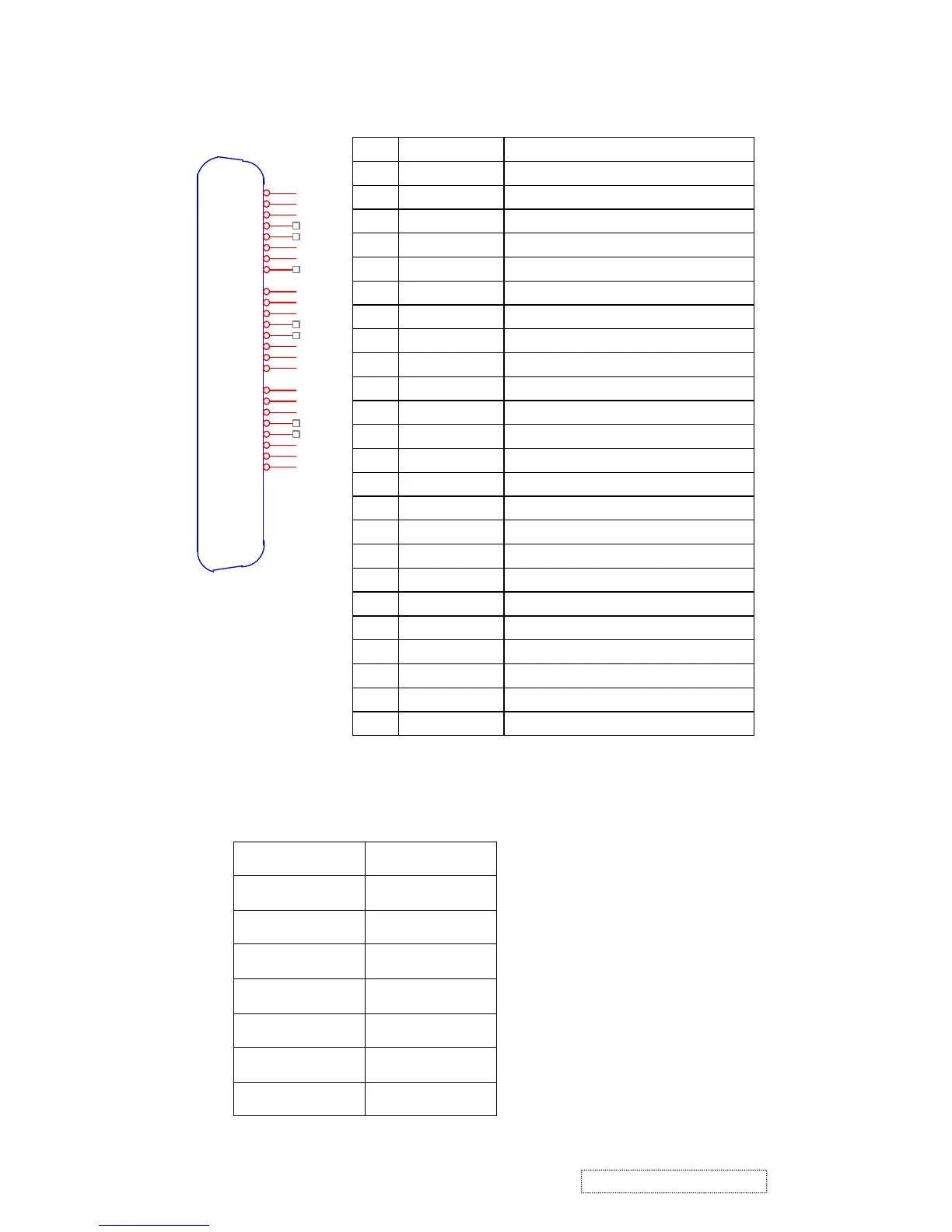

Video signal connector for digital input: 24pin DVI-D connector
CN9
DVI-D
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
RX2-
RX2+
GND
RX4-
RX4+
SCL
SDA
VS
RX1-
RX1+
GND
RX3-
RX3+
5V
GND
HP
RX0-
RX0+
GND
RX5-
RX5+
GND
RXC+
RXC-
3. ELECTRICAL SPECIFICATIONS
3.1 Standard conditions
Display Area
404.2 x 330.0 mm
Video Signal
0.7Vpp
Contrast
Max.
Brightness
Max.
Ambient
20 +/- 5 °C
Input
AC
Warming up
> 30 min
Display
1280 x 1024
Pin No.
Signal Name Description
1 RX2- TMDS negative differential input, channel 2
2 RX2+ TMDS positive differential input, channel 2
3 GND Logic Ground
4 RX4- Reserved. No connection
5 RX4+ Reserved. No connection
6 SCL DDC2B Clock
7 SDA DDC2B Data
8 VS Reserved. No connection
9 RX1- TMDS negative differential input, channel 1
10 RX1+ TMDS positive differential input, channel 1
11 GND Logic Ground
12 RX3- Reserved. No connection
13 RX3+ Reserved. No connection
14 +5V Power
15 GND Logic Ground
16 HP SENSE Pin, Pull High
17 RX0- TMDS negative differential input, channel 0
18 RX0+ TMDS positive differential input, channel 0
19 GND Logic Ground
20 RX5- Reserved. No connection
21 RX5+ Reserved. No connection
22 GND Logic Ground
23 RXC+ TMDS positive differential input, reference clock
24 RXC- TMDS negative differential input, reference clock
11
ViewSonic Corporation Confidential
-
Do Not Copy VX910

ViewSonic VX910 Specifications

General

Pixel pitch	0.294 mm
Response time	16 ms
Display diagonal	19 \
Display resolution	1280 x 1024 pixels
Vertical scan range	50 - 85 Hz
Horizontal scan range	24 - 82 kHz
Viewable size, vertical	301 mm
Viewable size, horizontal	376 mm
Viewing angle, horizontal	160 °
Display brightness (typical)	250 cd/m²
Certification	TCO’99, TÜV/GS, TÜV/ERGO, ISO13406-2 (class 2), CE, UL, cUL, FCC-B, CB, ENERGY, NOM, NEMKO, NEMKO ERGO, GOST-R, SASO, PCBC, VCCI, BSMI, CCC, PSB, C-TICK, Argentina-S, Green Mark
Market positioning	-
Power management	TCO’99, ENERGY Standards
Tilt angle range	5 - 20 °
Compatibility	PC/Mac
Operating relative humidity (H-H)	10 - 90 %
Maximum operating temperature range (T-T)	0 - 40 °C

Weight and Dimensions

Depth (without stand)	468 mm
Width (without stand)	431 mm
Height (without stand)	201 mm
Weight (without stand)	6700 g
