ViewSonic VX910 Service Manual

Adjusting the Screen Image
Use the buttons on the front control panel to display and adjust the OnView
®
controls which display on the screen. The OnView controls are explained at the
top of the next page.

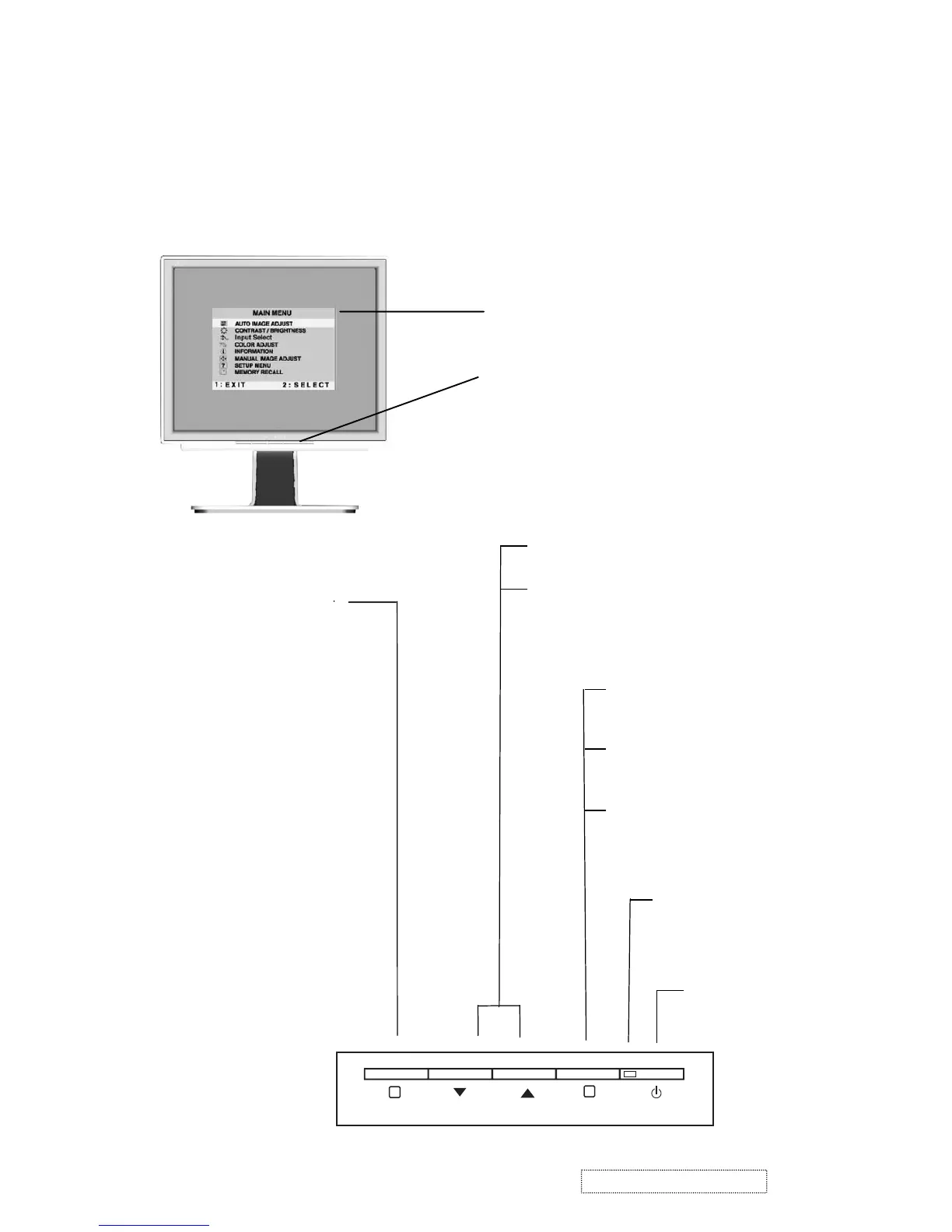

Front Control Panel
shown below in detail
Main Menu
With OnView controls
Scrolls through menu options and
adjusts the displayed control.
Also a shortcut to display the
Contrast adjustment control
screen.
Power
On/Off
Displays the control
screen for the highlighted
control.
Also toggles between two
controls on some
screens.
Also a shortcut to toggle
between analog and
digital connections.
Power light
Green = ON
Orange = Power
Saving
Displays the Main Menu
or exits the control screen
and saves adjustments
1
2
3. Front Panel Function Control Description
3
ViewSonic Corporation Confidential
-
Do Not Copy VX910

ViewSonic VX910 Specifications

General

Pixel pitch	0.294 mm
Response time	16 ms
Display diagonal	19 \
Display resolution	1280 x 1024 pixels
Vertical scan range	50 - 85 Hz
Horizontal scan range	24 - 82 kHz
Viewable size, vertical	301 mm
Viewable size, horizontal	376 mm
Viewing angle, horizontal	160 °
Display brightness (typical)	250 cd/m²
Certification	TCO’99, TÜV/GS, TÜV/ERGO, ISO13406-2 (class 2), CE, UL, cUL, FCC-B, CB, ENERGY, NOM, NEMKO, NEMKO ERGO, GOST-R, SASO, PCBC, VCCI, BSMI, CCC, PSB, C-TICK, Argentina-S, Green Mark
Market positioning	-
Power management	TCO’99, ENERGY Standards
Tilt angle range	5 - 20 °
Compatibility	PC/Mac
Operating relative humidity (H-H)	10 - 90 %
Maximum operating temperature range (T-T)	0 - 40 °C

Weight and Dimensions

Depth (without stand)	468 mm
Width (without stand)	431 mm
Height (without stand)	201 mm
Weight (without stand)	6700 g
