ViewZ VZ-PVM-Z2B3N User Manual

MOUNTING GUIDE
Wall Mounting (Optional)

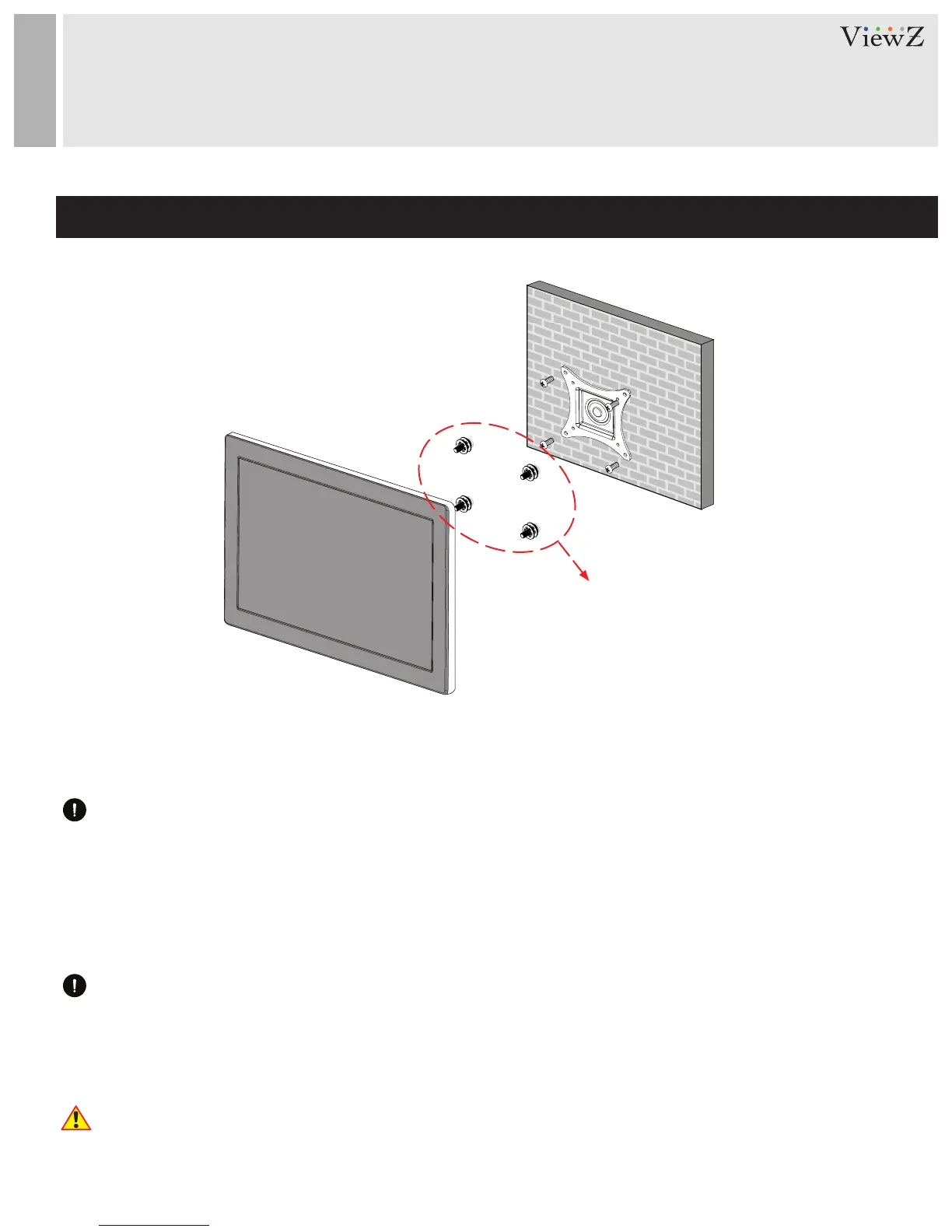

VZ-PVM monitors are suitable for VESA wall mount (not included).
1. VZ-PVM-Z2B3N/Z2W3N : VESA WALL MOUNT 100mm x 100mm, 200mm x 200mm
2. VZ-PVM-Z3B3N/Z3W3N : VESA WALL MOUNT 100mm x 100mm, 200mm x 200mm
3. VZ-PVM-Z4B3N/Z4W3N : VESA WALL MOUNT 200mm x 200mm
Aenon!
VZ-PVM-Z2B3N/Z2W3N (100x100) : You must use 4 * M4 x L10 screws to assemble this monitor and the wall
mount bracket.
VZ-PVM-Z3B3N/Z3W3N (100x100) : You must use 4 * M4 x L10 screws to assemble this monitor and the wall
mount bracket.
VZ-PVM-Z2B3N/Z2W3N(200x200), VZ-PVM-Z3B3N/Z3W3N (200x200), VZ-PVM-Z4B3N/Z4W3N (200x200) :
You must use 4 * M6 x L8 screws to assemble this monitor and the wall mount bracket.
Mounng Safety !
At least two people are recommended to safely install the mount.
WARNING !
If user uses screws longer than
M4 x L10 mm for 100 x 100 - VZ-PVM-Z2B3N/Z2W3N, VZ-PVM-Z3B3N/Z3W3N
M6 x L8 mm for 200 x 200 - VZ-PVM-Z2B3N/Z2W3N, VZ-PVM-Z3B3N/Z3W3N, VZ-PVM-Z4B3N/Z4W3N
it may cause damage to the unit. Please use bolt of correct size and length as instructed.
M4 x L10 screws for VZ-PVM-Z2B3N / Z2W3N (23" - 100x100)
M4 x L10 screws for VZ-PVM-Z3B3N / Z3W3N (27" - 100x100)
M6 x L8 screws for VZ-PVM-Z2B3N / Z2W3N (23" - 200x200)
VZ-PVM-Z3B3N / Z3W3N (23" - 200x200)
VZ-PVM-Z4B3N / Z4W3N (32" - 200x200)
