ITM-0060-0069-ED3
Main features

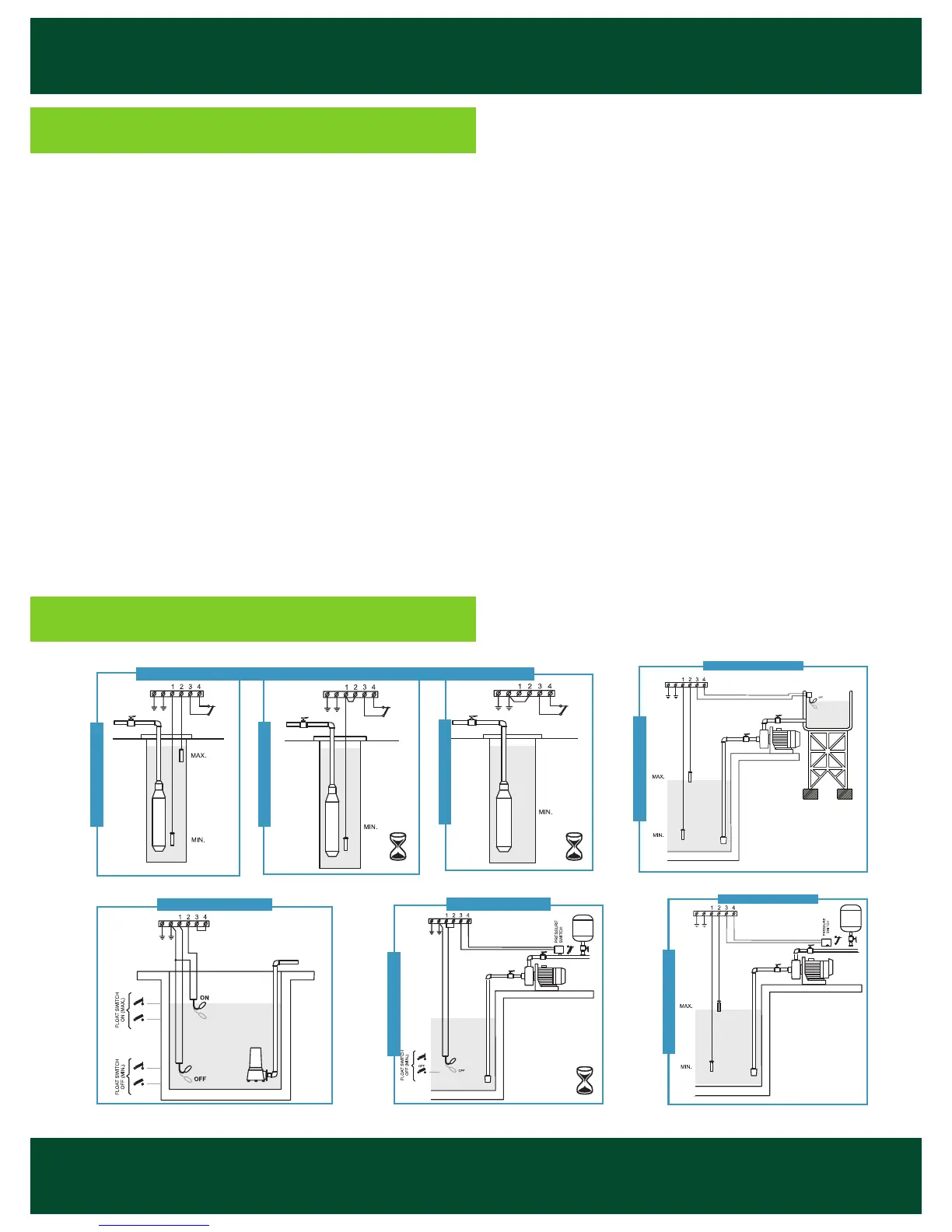

Common applications
An all-in-one control and protection unit for any •
pump.
Multicontrol.•
Vigilec mini: Three-phase. 230/400 V~. Direct-•
on-line starting (DOL).
Vigilec mono: Single-phase 230V~. Direct-on-•
line starting (DOL).
Protection against connection failure to the •
pump.
Protection against overvoltage.•
Protection against overload.•
Protection against underload.•
Protection against phase failure (Vigilec mini).•
Stormproof.•
Protection against dry running with 3 possible •
confi gurations:
1) TWO PROBES: low and high level.
2) ONE PROBE: low level only.
3) Underload: WITHOUT PROBES
In case 2 and 3, restarting after 15 min.
Adjustable OVERLOAD and UNDERLOAD •
electronic relays. Alarm trip in 7 s. (overload)
or in 4 s. (underload).
Protection against pump jamming during long •
rest periods (only in AUTO mode).
Guaranteed against incorrect connections.•
Remote control output admitting 6 to 400 V~/•
V= contact or voltage.
All control devices in low voltage.•
Selection MAN-0-AUT by push-buttons.•
MAIN SUPPLY led, PUMP RUNNING led, •
WATER LEVEL ALARM led, OVERLOAD and
UNDERLOAD leds.
Reset push-button.•
General alarm output relay.•
Wide diameters range and high protection •
cable glands.
DRAINAGE & SEWAGE
BOOSTER SETS
PROBES MODE
WELL & TANK
PROBES MODE
2 PROBES MODE
ON
OFF
ON
OFF
BOOSTER SETS
FLOAT MODE
WITHOUT PROBES MODE
ON
DELAY
OFF (Amp)
ON
DELAY
OFF
1 PROBE MODE
WELL & BOREHOLE
ON
DELAY
OFF
