VIGILEC mini V1N - Internal Components and Adjustments; Vigilec Mono Current Adjustments; Vigilec Mini Current Adjustments

Page 4
ITM-0060-0069-ED3

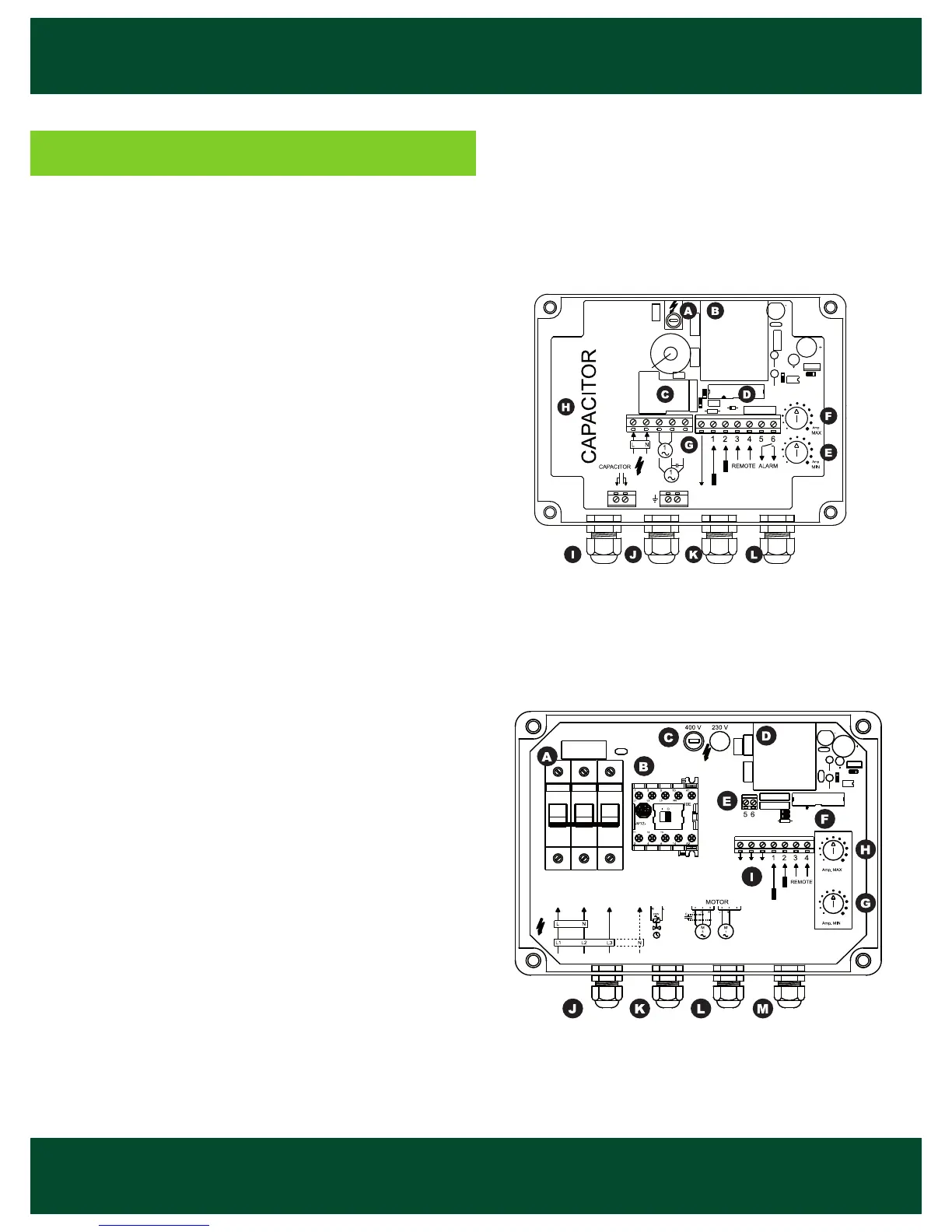

Internal confi guration
Control fuse (0,1A).A
Current transformer.B
Power relay.C
Flat cable connector.D
Minimum current adjustment (Amp. min).E
Maximum current adjustment (Amp. max).F
Control terminal blocks.G
Capacitor housing (submersible pumps).H
Main supply cable gland.I
Motor cable gland.J
Probes and earth cable gland.K
Remote / external alarm cable gland.L
Mod. Vigilec mini
Mod. Vigilec mono
Circuit breaker.A
Running motor contactor.B
Control fuses and voltage selection (0,1 A).C
Current transformer.D
General alarm output relay.E
Flat cable connector.F
Underload adjustment (Amp. min).G
Overload adjustment (Amp. max).H
Control terminal blocks.I
Main supply cable gland.J
Motor cable gland.K
Probes and earth cable gland.L
Remote /external alarm cable gland.M
