Front USB Connector: USB20_34, USB20_12
This connector, compliant with Intel® I/O Connectivity Design Guide, is ideal for
connecting high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like.

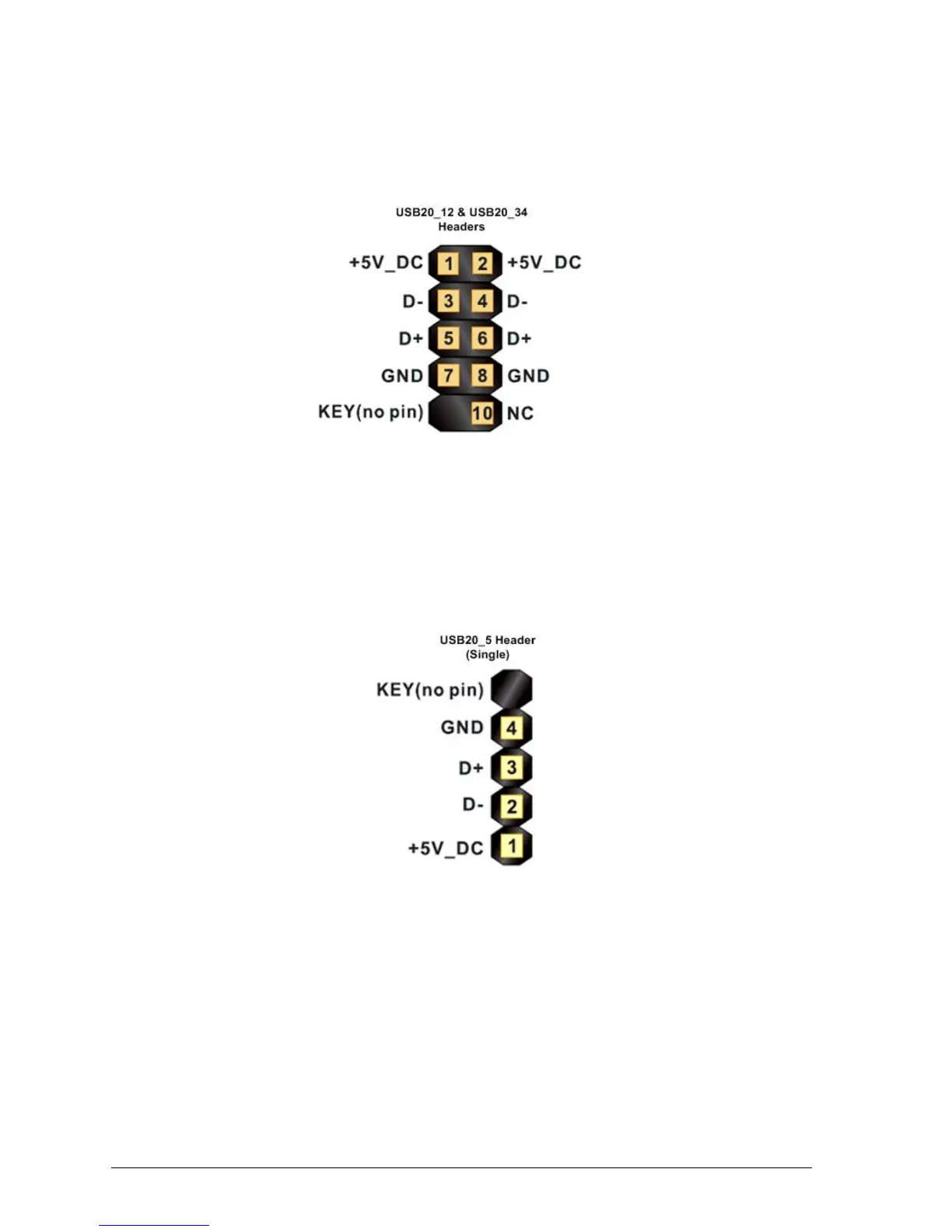

Figure 9: Front USB connectors
Front USB Connector: USB20_5
Figure 10: Front USB connector - single
