Fan Power Connectors: CPU_FAN, SYS_FAN
The fan power connectors support system cooling fan with +12V. When connecting the
wire to the connectors, always note that the red wire is the positive and should be
connected to the +12V; the black wire is Ground and should be connected to GND. The
motherboard has a System Hardware Monitor chipset on-board, which must be used with
fans specially designed with speed sensors to take advantage of the CPU fan control.

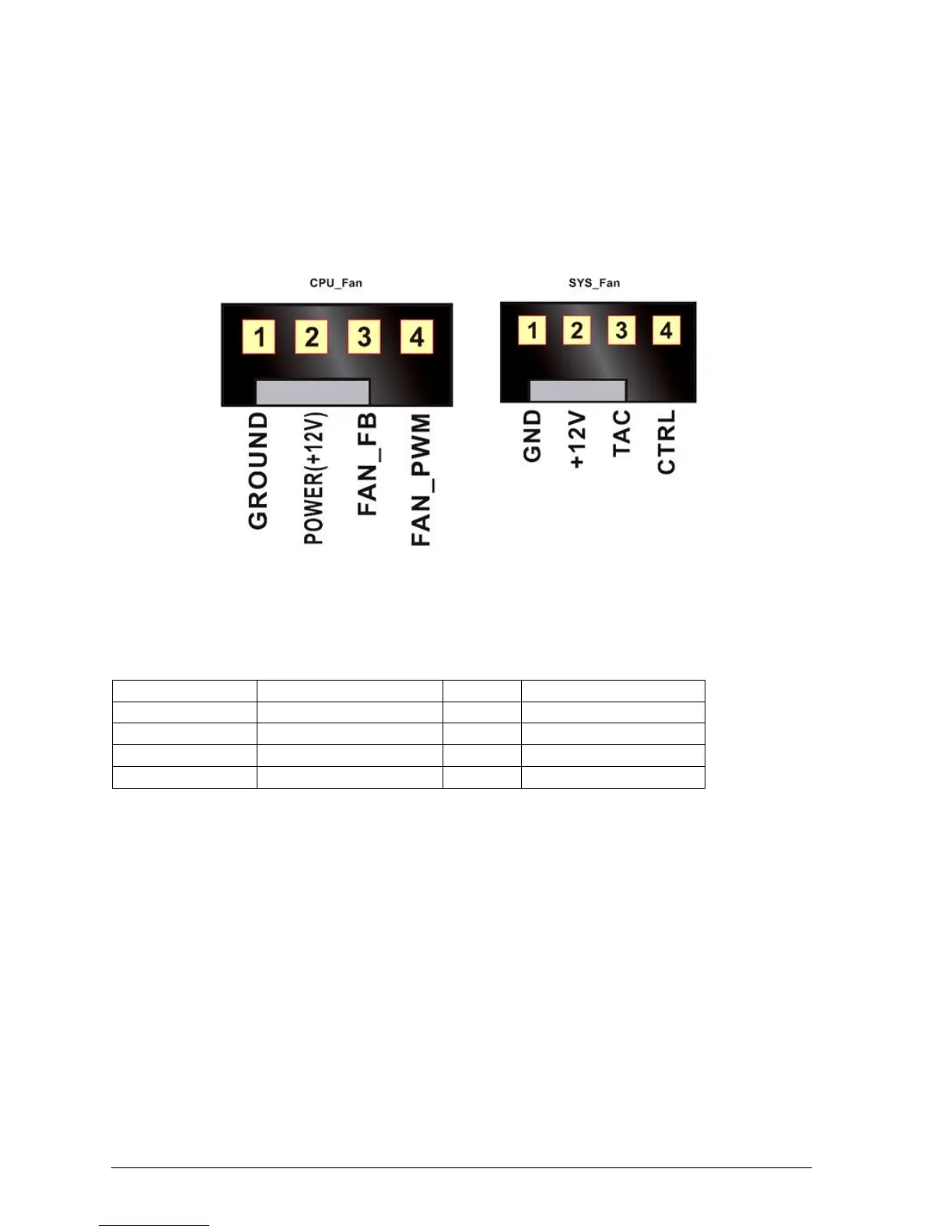

Figure 11: Fan Power connectors
Table 5: System FAN header, CPU FAN header
