Serial ATA Connector: SATA0, SATA1
This connector is a high-speed Serial ATA interface port. Each connector can connect to
one Serial ATA device.

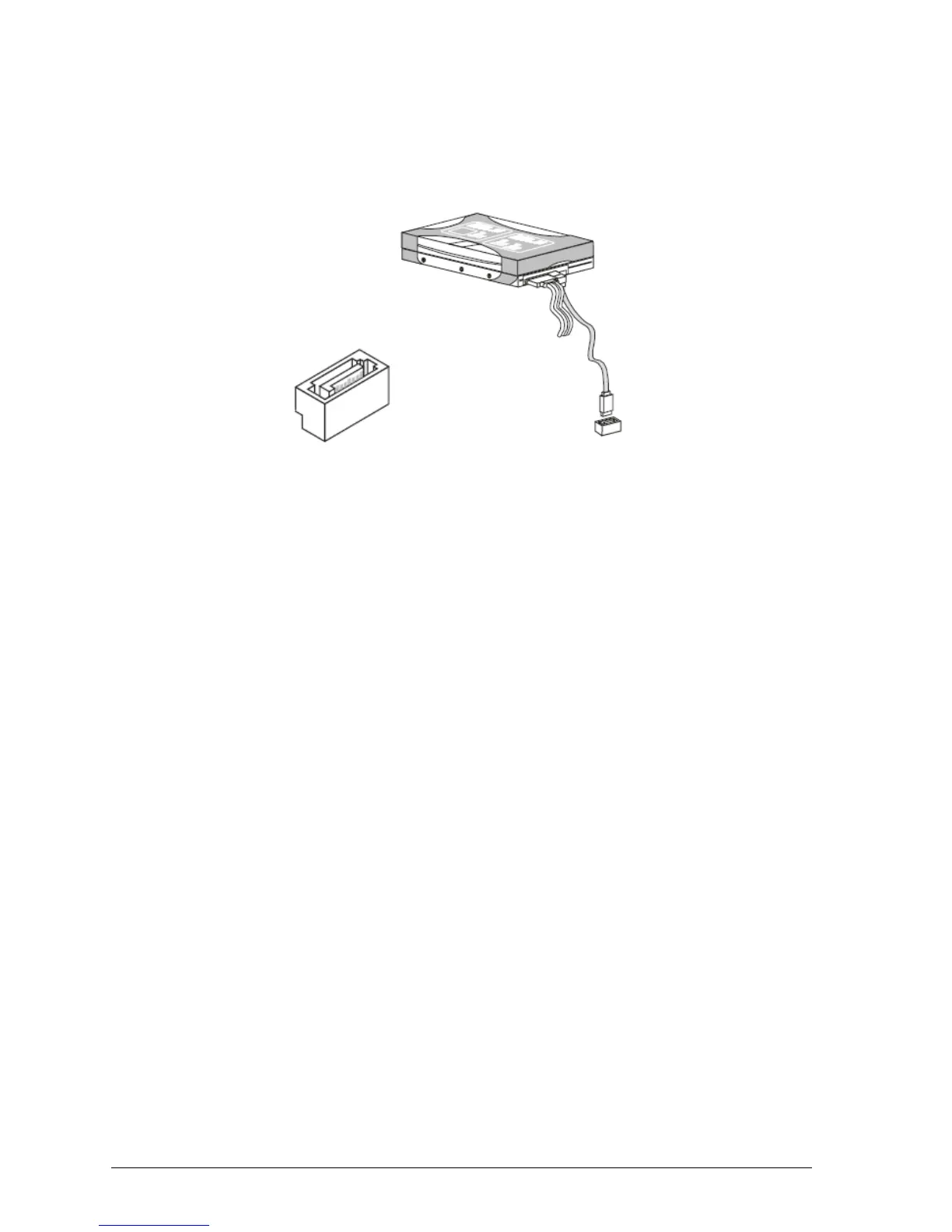

Figure 12: Serial ATA Connector
NOTE:
Please do not fold the serial ATA cable into 90-degree angle. Otherwise, data loss may
occur during transmission.
