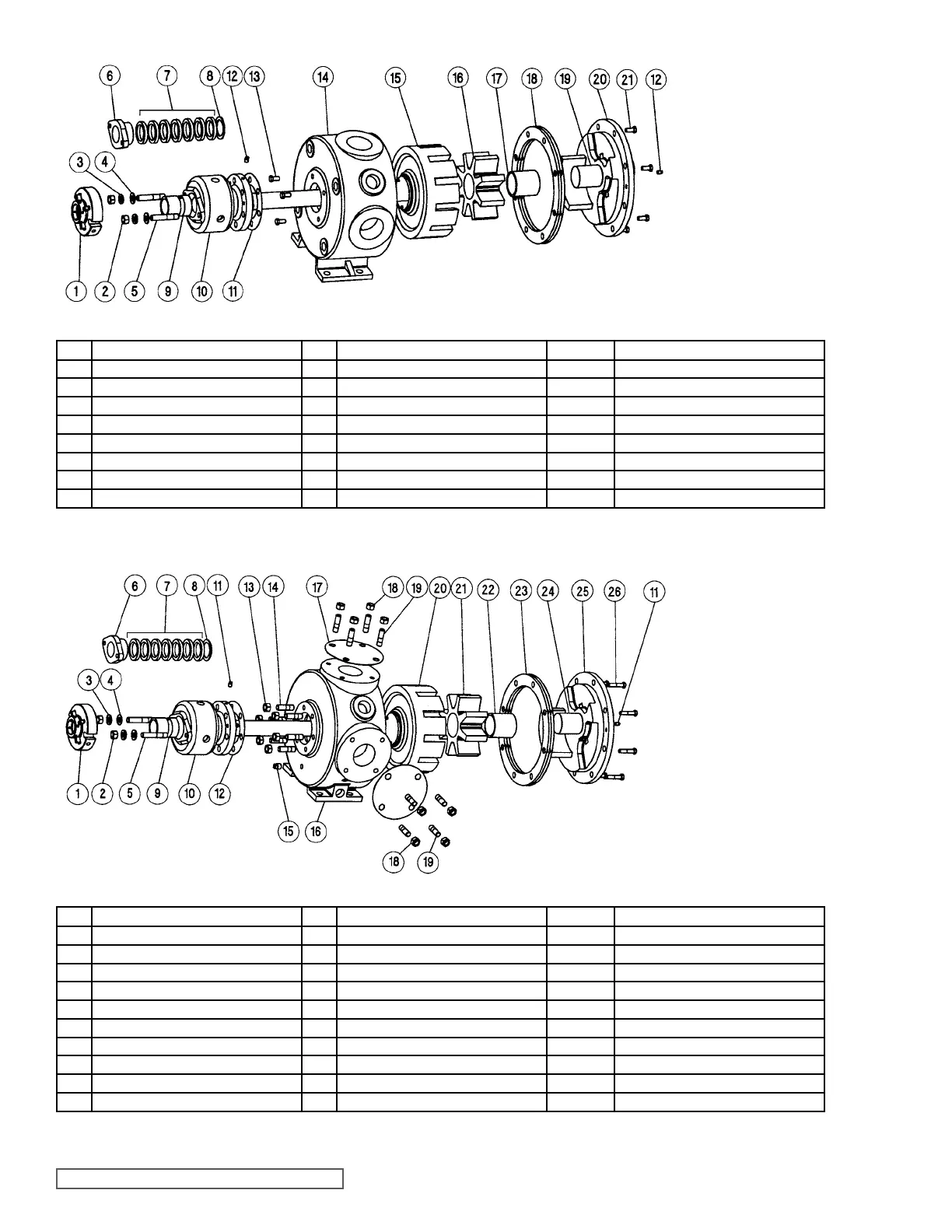

FIGURE 4
EXPLODED VIEW
SERIES 34 & 434 PUMPS (KK SIZE)
ITEM NAME OF PART ITEM NAME OF PART ITEM NAME OF PART
1 Mechanical Seal 9 Rotor Bearing Sleeve Bushing 17 Idler Bushing
2 Nut 10 Rotor Bearing Sleeve 18 Head Gasket Set
3 Lockwasher 11 Gasket 19 Idler Pin
4 Flat Washer 12 Pipe Plug 20 Head (Jacketed) and Idler Pin Assembly
5 Stud 13 Capscrew 21 Capscrew
6 Packing Gland 14 Casing (Jacketed) Not Illus. Relief Valve
7 Packing 15 Rotor and Shaft Assembly Not Illus. Relief Valve Gasket
8 Packing Retainer Washer 16 Idler and Bushing Assembly Not Illus. Relief Valve Capscrews
FIGURE 5
EXPLODED VIEW
SERIES 34 & 434 PUMPS (LQ SIZE)
ITEM NAME OF PART ITEM NAME OF PART ITEM NAME OF PART
1 Mechanical Seal 11 Pipe Plug 21 Idler and Bushing Assembly
2 Nut 12 Gasket 22 Idler Bushing
3 Lockwasher 13 Nut 23 Head Gasket Set
4 Flat Washer 14 Stud 24 Idler Pin
5 Stud 15 Pipe Plug 25 Head (Jacketed) and Idler Pin Assembly
6 Packing Gland 16 Casing (Jacketed) 26 Capscrew
7 Packing 17 Gasket Not Illus. Relief Valve
8 Packing Retainer Washer 18 Nut Not Illus. Relief Valve Gasket
9 Rotor Bearing Sleeve Bushing 19 Stud Not Illus. Relief Valve Capscrews
10 Rotor Bearing Sleeve 20 Rotor and Shaft Assembly
SECTION TSM 430 ISSUE d PAGE 4 OF 9
