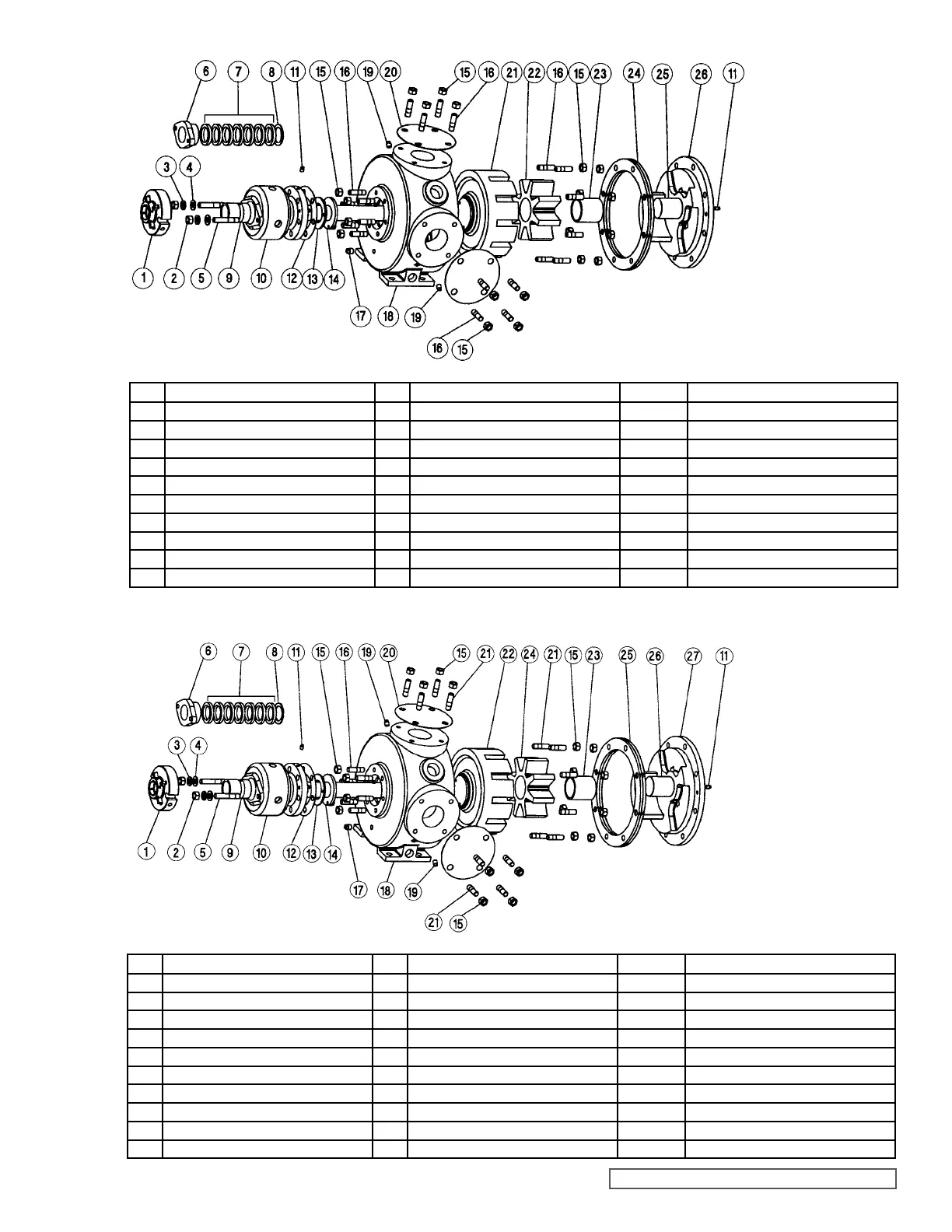

FIGURE 6
EXPLODED VIEW
SERIES 34 & 434 PUMPS (Q SIZE)
ITEM NAME OF PART ITEM NAME OF PART ITEM NAME OF PART
1 Mechanical Seal 11 Pipe Plug 21 Rotor and Shaft Assembly
2 Nut 12 Gasket 22 Idler and Bushing Assembly
3 Lockwasher 13 Thrust Washer, Rotor Bearing Sleeve 23 Idler Bushing
4 Flat Washer 14 Thrust Washer, Rotor 24 Head Gasket Set
5 Stud 15 Nut 25 Idler Pin
6 Packing Gland 16 Stud 26 Head (Jacketed) and Idler Pin Assembly
7 Packing 17 Pipe Plug Not Illus. Relief Valve
8 Packing Retainer Washer 18 Casing (Jacketed) Not Illus. Relief Valve Gasket
9 Rotor Bearing Sleeve Bushing 19 Pipe Plug Not Illus. Relief Valve Capscrews
10 Rotor Bearing Sleeve 20 Gasket
FIGURE 7
EXPLODED VIEW
SERIES 34 & 434 PUMPS (M SIZE)
ITEM NAME OF PART ITEM NAME OF PART ITEM NAME OF PART
1 Mechanical Seal 11 Pipe Plug 21 Head Gasket Set
2 Nut 12 Gasket 22 Rotor and Shaft Assembly
3 Lockwasher 13 Thrust Washer, Rotor Bearing Sleeve 23 Idler Bushing
4 Flat Washer 14 Thrust Washer, Rotor 24 Idler and Bushing Assembly
5 Stud 15 Nut 25 Head Gasket Set
6 Packing Gland 16 Stud 26 Idler Pin
7 Packing 17 Pipe Plug 27 Head (Jacketed) and Idler Pin Assembly
8 Packing Retainer Washer 18 Casing (Jacketed) Not Illus. Relief Valve
9 Rotor Bearing Sleeve Bushing 19 Pipe Plug Not Illus. Relief Valve Gasket
10 Rotor Bearing Sleeve 20 Gasket Not Illus. Relief Valve Capscrews
SECTION TSM 430 ISSUE d PAGE 5 OF 9
