11
Open Burner Type 3
Surface Burner Conversion
Locate bag labeled Open Burner Orifice Type 3.
Remove screws securing open surface burner to burner box and remove open surface burner.
NOTE: Igniter wire must be disconnected to remove burner.

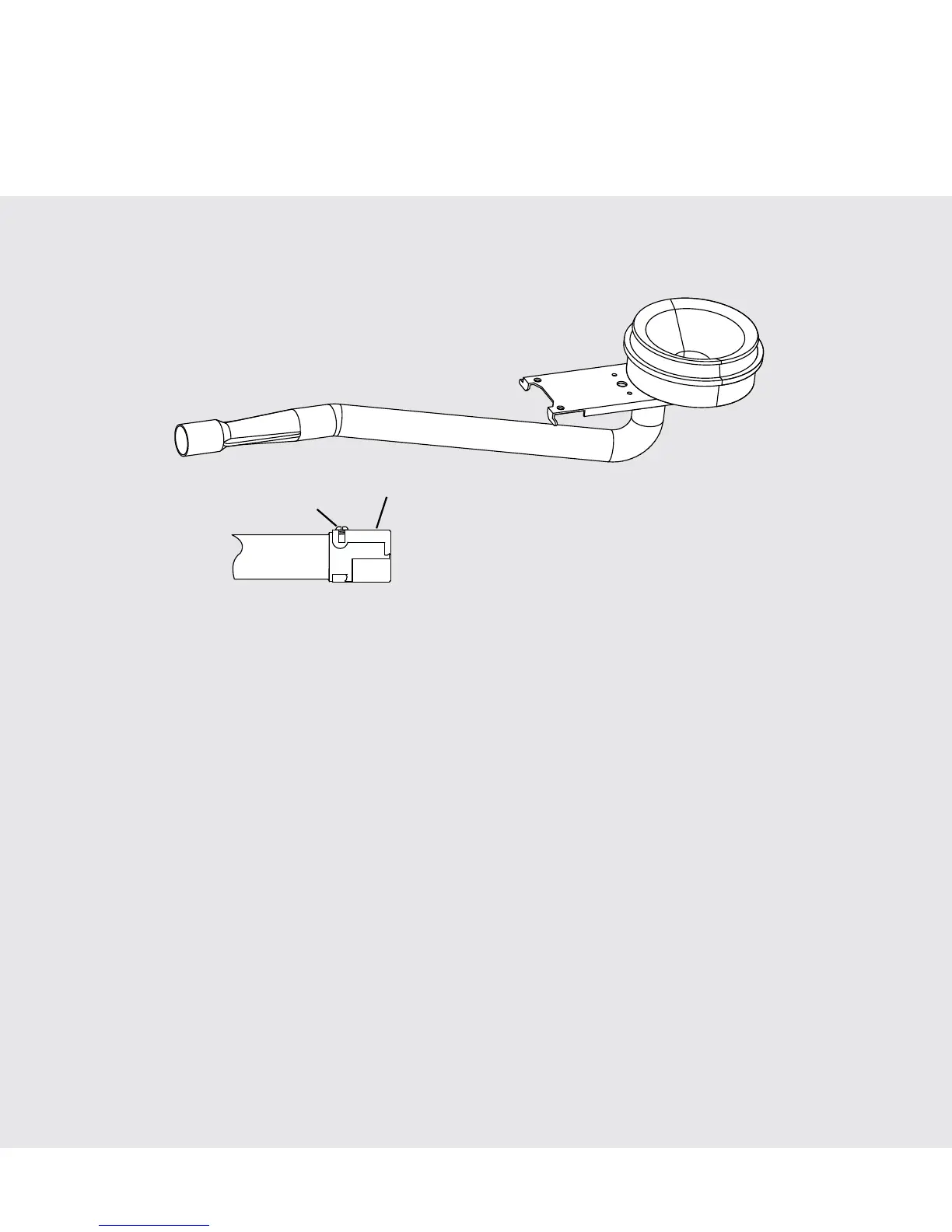

Loosen air shutter screw and adjust opening to 7/16” and tighten air shutter screw.
Locate orifice mounted onto gas valve behind control panel.
NOTE: This can be accessed through the burner box area. Control panel does not require
removal.
Use a 1/2” deep socket wrench to remove orifice by turning counterclockwise.
IMPORTANT: If a valve pin is present, remove valve pin and discard.
Install orifice from bag labeled Open Burner Orifice Type 3.
IMPORTANT: The orifice tip must be located 3/16” inside the burner for proper gas mixture
and combustion. The depth of the orifice can be adjusted by turning the orifice
counterclockwise (more depth) or clockwise (less depth).
Reconnect igniter wire and reinstall burner.
Repeat steps until all surface burners have been converted.
Reinstall all grates, grate supports and burner bowls.
Adjustment
Screw
Air Shutter
To Next Page
