9
Surface Burner Conversion
Locate bag labeled Designer Burner Orifice.

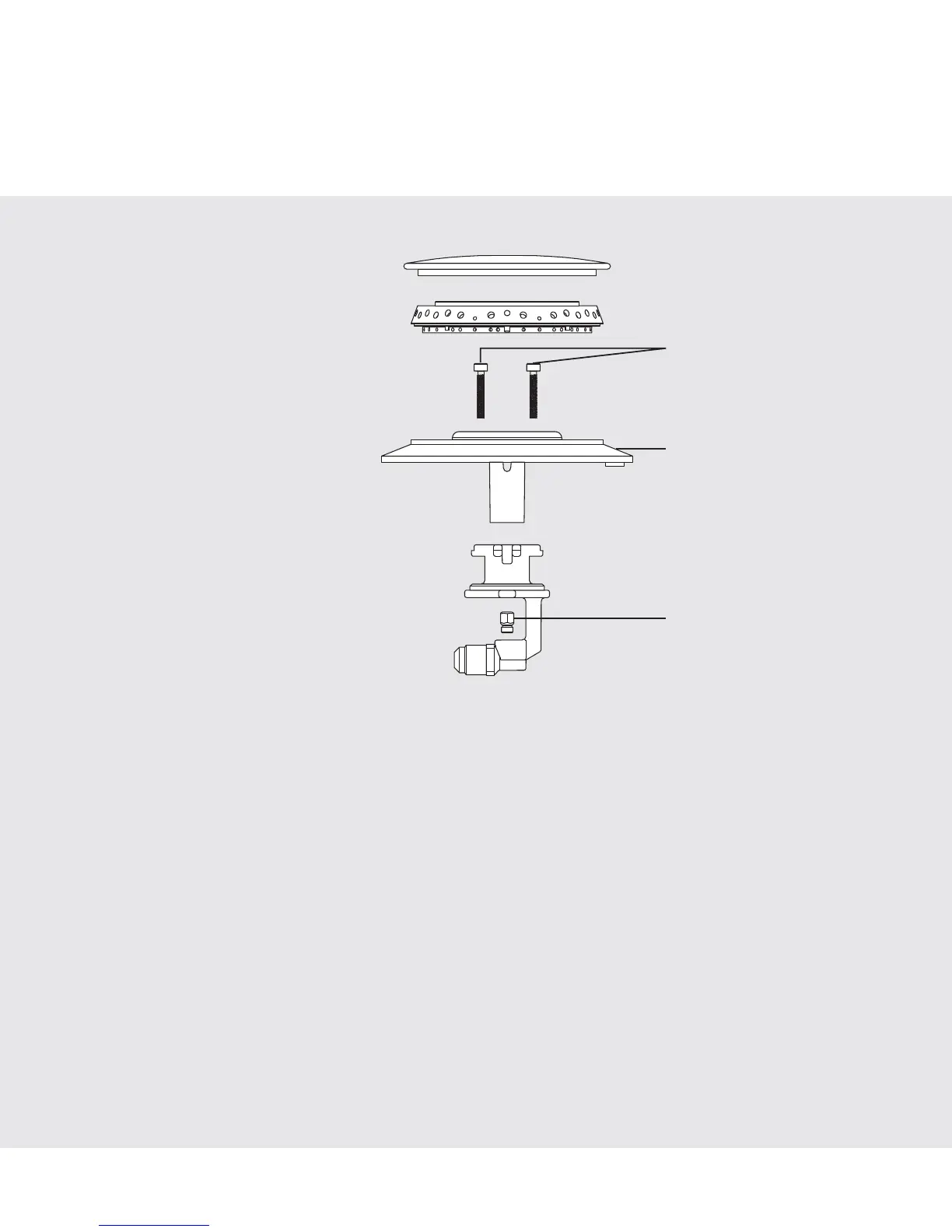

Remove the screws (Item #1) and set burner base aside (Item #2).
IMPORTANT: Burner bases must be handled carefully to prevent igniter wires from becoming
disconnected. Loose igniter wires may fall through top assembly.
Use a 5/16” socket or nut driver to remove orifice (Item #3) and replace it with orifice from bag
labeled Designer Burner Orifice.
Tech Tip: Tape can be applied to the inside of a socket to assist in retrieval of the surface
burner orifices. This can prevent the orifices from falling into the range during removal.
Reverse procedure as needed to reassemble.
IMPORTANT: For proper placement of burner head, rotate until burner head seats into groove.
Designer Range
& Rangetop
Item #1
Item #2
Item #3
