Straight Tube Burner with Glow Bar Ignition
Remove screws securing glow bar igniter to burner box and place glow bar igniter aside.
Remove screws securing metal plate to burner box located underneath griddle burner and
remove metal plate.
Remove screws securing griddle burner to unit and remove griddle burner.

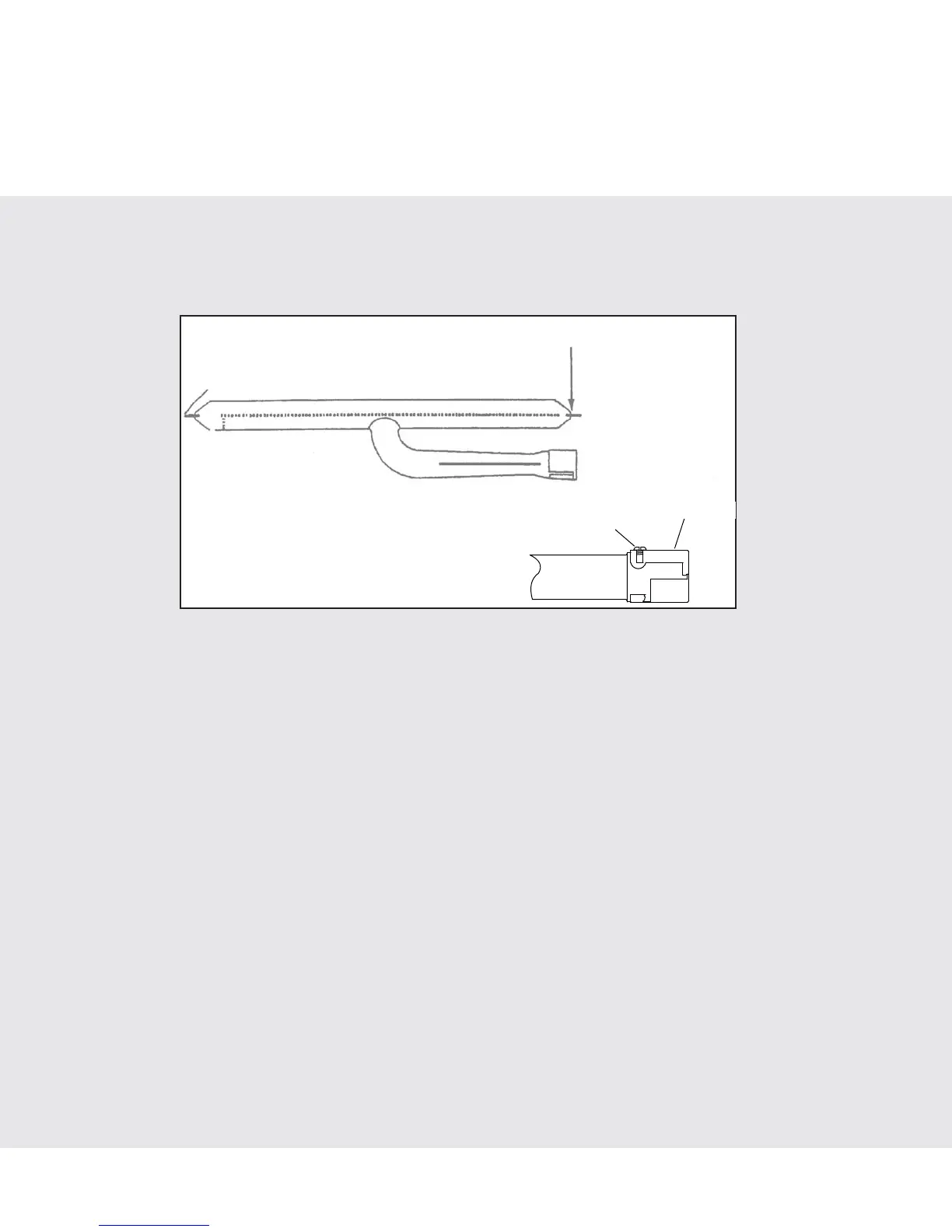

Loosen air shutter screw and adjust opening on burner to 7/16” and tighten air shutter screw.
Use a 1/2” deep socket wrench to remove orifice by turning counterclockwise.
IMPORTANT: If a valve pin is present, remove valve pin and discard.
Install orifice from bag labeled Griddle Orifice.
NOTE: If necessary, repeat steps for 2
nd
burner located on 24” griddles.
Reverse procedures as needed to reassemble.
