Viking DFBB536 - Custom Door Panel Installation - (Refrigerator or Freezer)

51
50
7

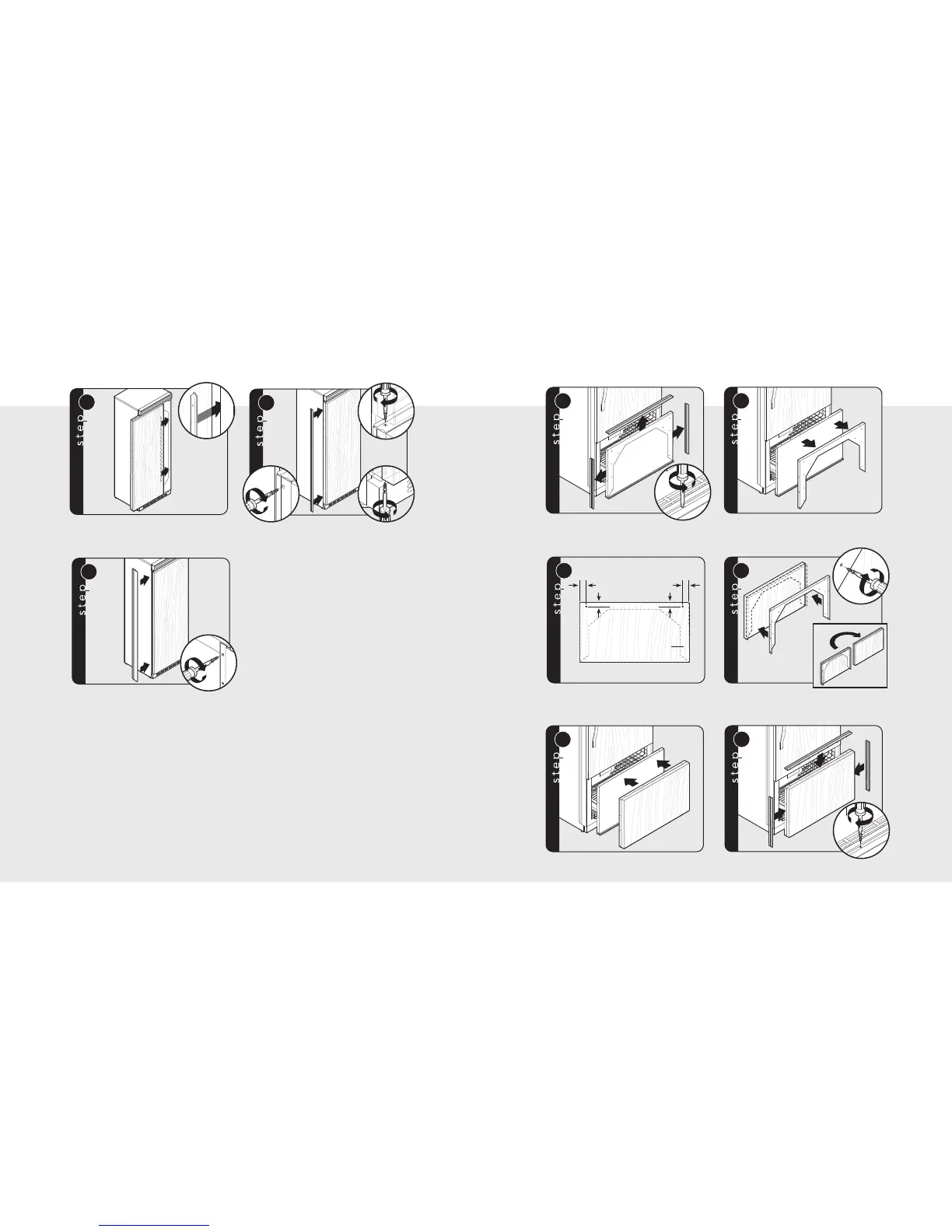

Open freezer door. Remove door trim screws
and door trim with a phillips screwdriver.
Remove FOL bracket.
1
x16
2
Attach FOL bracket to the custom panel.
Align and slide custom wood panel onto door.
4
x13
5
Slide custom wood panel to the hinge side, ensuring
“Z” bracket engages the door FOL bracket.
8
x13
x2
x2
Reinstall handle side door trim
and door trim screws.
Reinstall door trim and door trim screws.
6
x16
Custom Door Panel Installation (Refrigerator or Freezer cont.)
Custom Freezer Door Panel Installation (Bottom-Mount Only cont.)
9
x13
Reinstall cabinet trim and screws.
Measure and mark the first hole on each side of the
bracket.
Back of panelBack of panel
FOL bracketFOL bracket
2-1/64”
(5.1 cm)
2-1/64”
(5.1 cm)
2-1/64”
(5.1 cm)
2-1/64”
(5.1 cm)
1-45/64”
(4.3 cm)
1-45/64”
(4.3 cm)
1-45/64”
(4.3 cm)
1-45/64”
(4.3 cm)
1-45/64”
(4.3 cm)
1-45/64”
(4.3 cm)
3
