Adjust and reposition bezel
as necessary. Tighten all screws securely.
Replace spill tray in lower part of bezel.
Align cube switch with sliding lever and firmly push
until sliding lever is flush with bezel.
For a left hinge door, cut 5/8” x 2 3/4” in lower left corner.
Note: Steps show panel upside down and notched for left
hinge application. Mirror dimensions for right hinge door.
Position upper mounting support over holes
underneath top section of bezel.

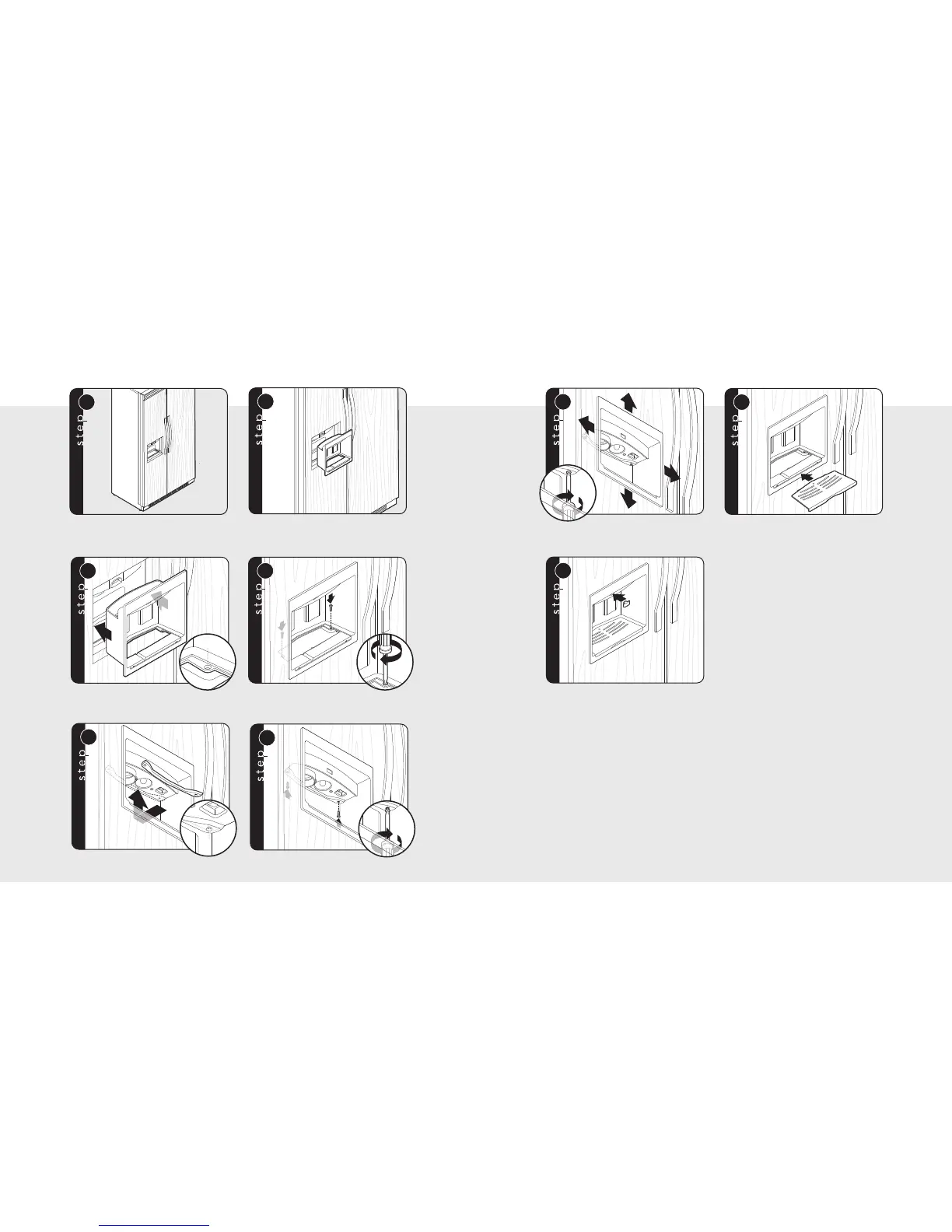

Ice and Water Dispenser Bezel Installation (if required) Ice and Water Dispenser Bezel Installation (if required cont.)
Push firmly into cavity until lower screw holes
align with mounting holes on cavity.
Install two screws in lower part of bezel
but DO NOT tighten all the way.
Install custom wood panels per product’s
installation instructions.
Locate opening in door and position bezel.
Note: Graphics on bezel will be on top end, tilt slightly
forward to allow water tube clearance.
