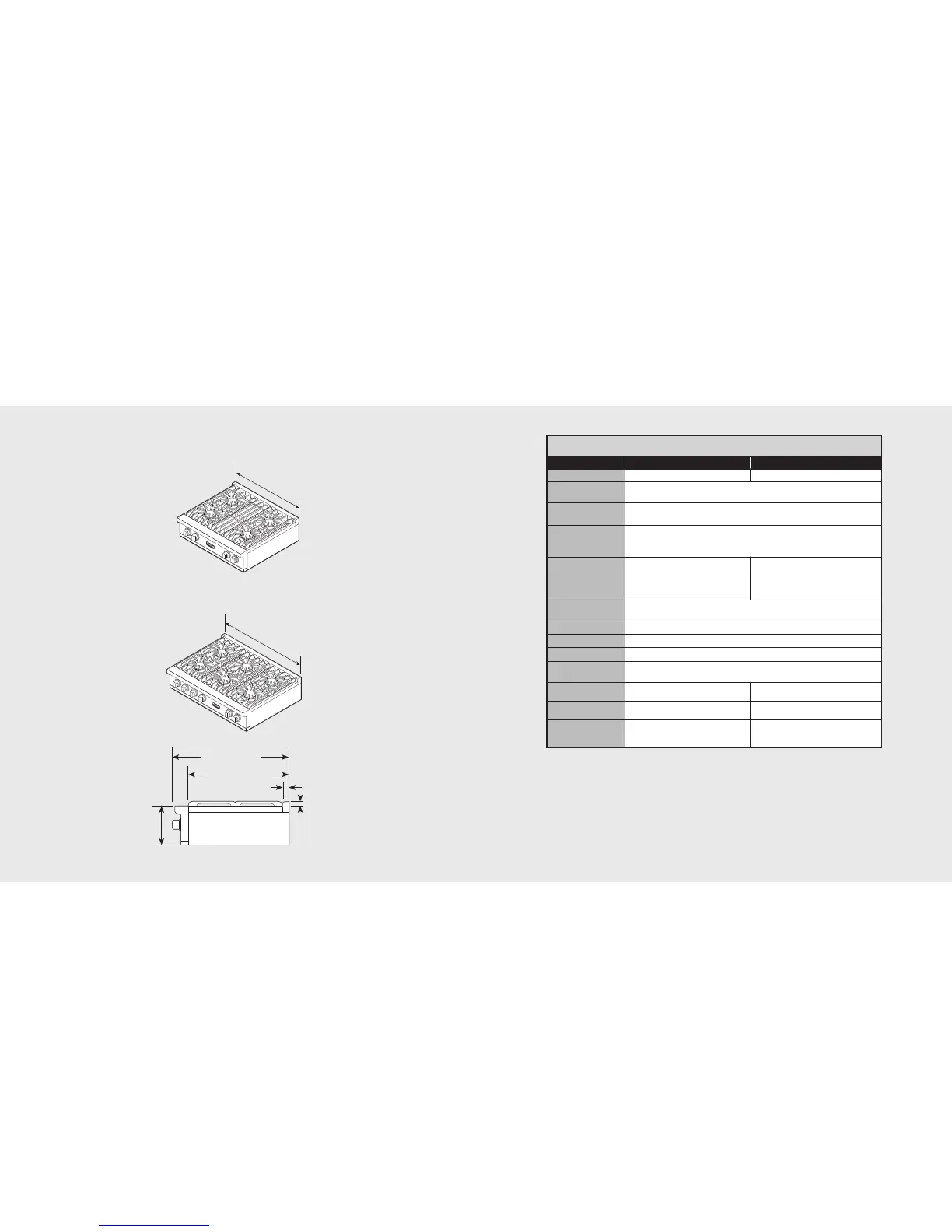

Viking F20637D - Dimensions (30 & 36); Specifications (30 & 36)

Specifications
7
Dimensions
6
Custom Gas 30” Rangetop
3
5
-
7
/
8
”
(
9
1
.
1
c
m
)
8-1/8”
(20.6 cm)
1-5/8” (4.1 cm)
1” (2.5 cm)
28-9/16” (72.6 cm)
24-5/16” (61.8 cm)
Note: Unit shown with standard island trim.
2
9
-
7
/
8
”
(
7
5
.
9
c
m
)
Custom Gas 36” Rangetop
Minimum clearances from adjacent combustible construction
• Cooking surface and below, i.e., 36” (91.4 cm) and below
o Sides—0”
• Above cooking surface, i.e. above 36" (91.4 cm)
o Sides—6” (15.2 cm)
o Within 6” (15.2 cm) side clearance, wall cabinets no deeper than 13” (33.0 cm) must be minimum 18” (45.7 cm)
above cooking surface.
o Wall cabinets directly above product must be minimum 36” (91.4 cm) for open top burners above
cooking surface.
o Rear—0” with backguard or highshelf; 0” with island trim and noncombustible rear wall; 6” (15.2 cm) with island
trim and combustible rear wall.
Custom Gas Rangetops
Description
30” W. Models 36” W. Models
Overall width 29-7/8” (75.9 cm) 35-7/8” (91.1 cm)
Overall height
(from bottom)
To top of grate—9-1/4” (23.5 cm)
To top of island trim—9-1/8” (23.2 cm)
Additions to base
height
To top of backguard—add 8” (20.3 cm)
To top of high shelf—add 23-1/2” (59.7 cm)
Overall depth
(from rear)
To end of side panel—24-5/16” (61.8 cm)
To end of landing edge—28-1/16” (71.3 cm)
To end of knobs—28-9/16” (72.6 cm)
Cutout dimensions
Cutout width—30” (76.2 cm)
Cutout height—7-5/8” (19.4 cm)
Cutout depth—min. 24” (61.0 cm),
max. 25-3/4” (65.4 cm)
Cutout width—36” (91.4 cm)
Cutout height—7-5/8” (19.4 cm)
Cutout depth—min. 24” (61.0 cm),
max. 25-3/4” (65.4 cm)
Gas requirements Shipped natural or LP/Propane gas; field convertible with conversion kit
(purchased separately); accepts standard residential 1/2” (1.3 cm) ID gas service line.
Gas manifold pressure Natural 5.0” W.C.P. / Liquid propane L/P 10.0” W.C.P.
Electrical requirements
120 VAC/60 Hz 4ft. (121.9 cm), 3-wire cord with grounded 3-prong plug
Max. amp usage 0.5 amps
Surface burner rating
Natural/LP
18,500 BTU (5.4 kW)/16,600 BTU (4.9kW)
15,000 BTU (4.4 kW)/12,500 BTU (3.7 kW)
Griddle burner rating NA 15,000 BTU Nat./12,500 BTU LP/Propane
(4.4 kW Nat/ 3.7 kW LP)
Char-Grill burner
rating
NA 18,000 BTU Nat./16,000 BTU LP/Propane
(5.3 kW Nat/ 4.7 kW LP)
Approximate
shipping weight
125 lbs.
(56.7 kg)
6B-150 lbs. (67.5 kg)
4G-160 lbs. (72.0 kg)
4Q-155 lbs. (69.8 kg)
