Viking F20637D - Dimensions (48 & 60); Specifications (48 & 60)

98
Dimensions
4
7
-
7
/
8
”
(
1
2
1
.
6
c
m
)
Note: Unit shown with standard island trim.

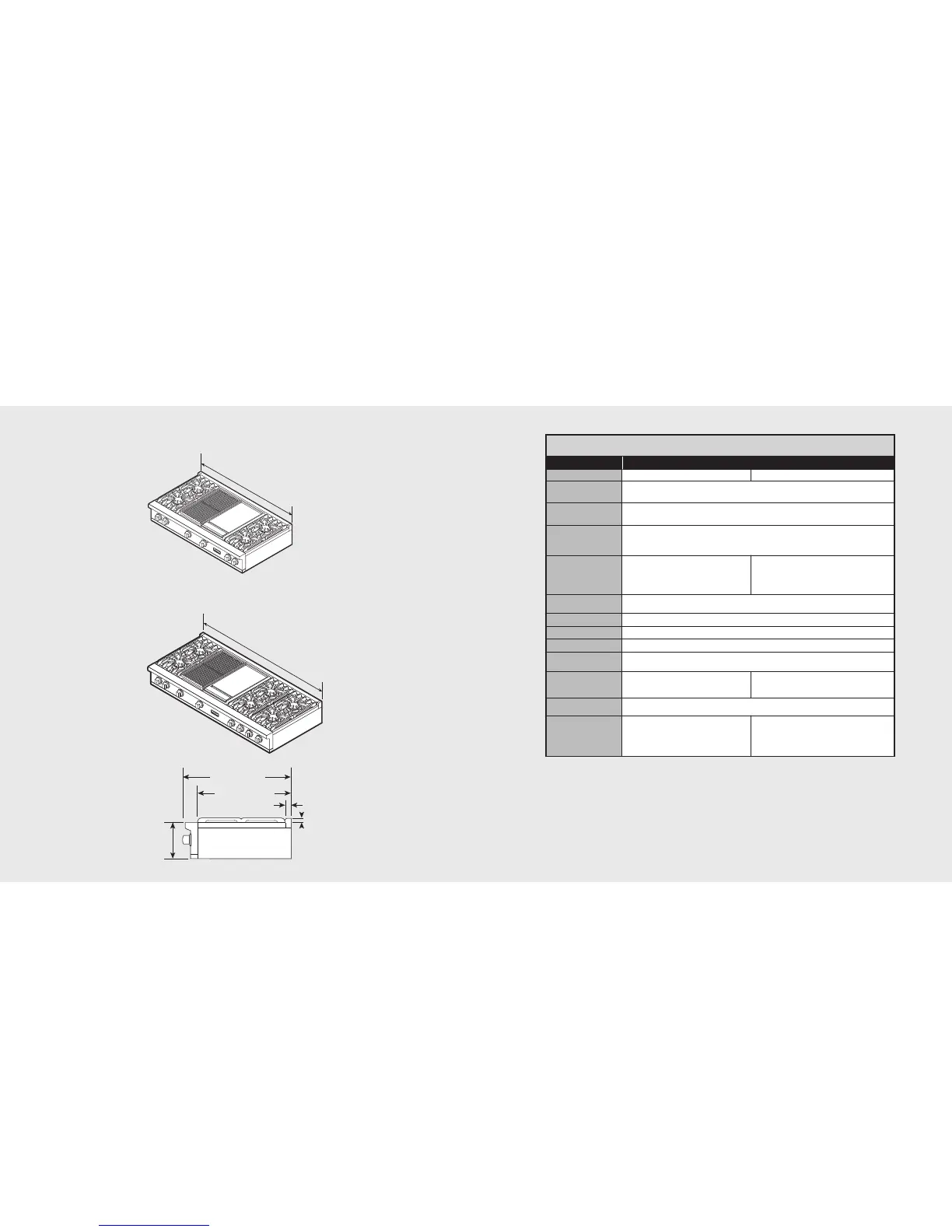

Custom Gas 48” Rangetop
Specifications
Minimum clearances from adjacent combustible construction
• Cooking surface and below, i.e., 36” (91.4 cm) and below
o Sides—0”
• Above cooking surface, i.e. above 36" (91.4 cm)
o Sides—6” (15.2 cm)
o Within 6” (15.2 cm) side clearance, wall cabinets no deeper than 13” (33.0 cm) must be minimum 18” (45.7 cm)
above cooking surface.
o Wall cabinets directly above product must be minimum 36” (91.4 cm) for open top burners above
cooking surface.
o Rear—0” with backguard or highshelf; 0” with island trim and noncombustible rear wall; 6” (15.2 cm) with island
trim and combustible rear wall.
Custom Gas Rangetops
Description
48” W. Models 60” W. Models
Overall width 47-7/8” (121.6 cm) 60” (152.4 cm)
Overall height To top of grate—9-1/4” (23.5 cm)
To top of island trim—9-1/8” (23.2 cm)
Additions to base
height
To top of backguard—add 8” (20.3 cm)
To top of high shelf—23-1/2” (59.7 cm)
Overall depth
(from rear)
To end of side panel—24-5/16” (61.8 cm)
To end of landing ledge—28-1/16” (71.3 cm)
To end of knobs—28-9/16” (72.6 cm)
Cutout dimensions
Cutout width—48” (121.9 cm)
Cutout height—7-5/8” (19.4 cm)
Cutout depth—min. 24” (61.0 cm),
max. 25-3/4” (65.4 cm)
Cutout width—60-1/4” (153.0 cm)
Cutout height—7-5/8” (19.4 cm)
Cutout depth—min. 24” (61.0 cm),
max. 25-3/4” (65.4 cm)
Gas requirements Shipped natural or LP/Propane gas; field convertible with conversion kit
(purchased separately); accepts standard residential 1/2” (1.3 cm) ID gas service line.
Gas manifold pressure Natural 5.0” W.C.P. / Liquid propane L/P 10.0” W.C.P.
Electrical requirements
120 VAC/60 Hz 4ft. (121.9 cm), 3-wire cord with grounded 3-prong plug
Max. amp usage 0.5 amps
Surface burner rating
Natural/LP
18,500 BTU (5.4 kW)/16,600 BTU (4.9kW)
15,000 BTU (4.4 kW)/12,500 BTU (3.7 kW)
Griddle Burner rating 12” Wide
15,000 BTU Nat./12,500 BTU LP/Propane
(4.4 kW Nat/ 3.7 kW LP)
24” Wide
Two 15,000 BTU Nat./12,500 BTU LP/Propane
(4.4 kW Nat/ 3.7 kW LP)
Char-Grill burner rating 18,000 BTU Nat./16,000 BTU LP/Propane
(5.3 kW Nat/ 4.7 kW LP)
Approximate
shipping weight
6G-203 lbs. (91.4 kg)
6Q-193 lbs. (89.1 kg)
4GQ-213 lbs. (95.6 kg)
4G-215 lbs. (96.7 kg)
8B-200 lbs. (90.7 kg.)
6G-256 lbs. (115.2 kg)
6GQ-251 lbs. (113.0 kg)
8-1/8”
(20.6 cm)
1-5/8” (4.1 cm)
1” (2.5 cm)
28-9/16” (72.6 cm)
24-5/16” (61.8 cm)
6
0
”
(
1
5
2
.
4
c
m
)
Custom Gas 60” Rangetop
