Viking FDB451 - Before Operation

17

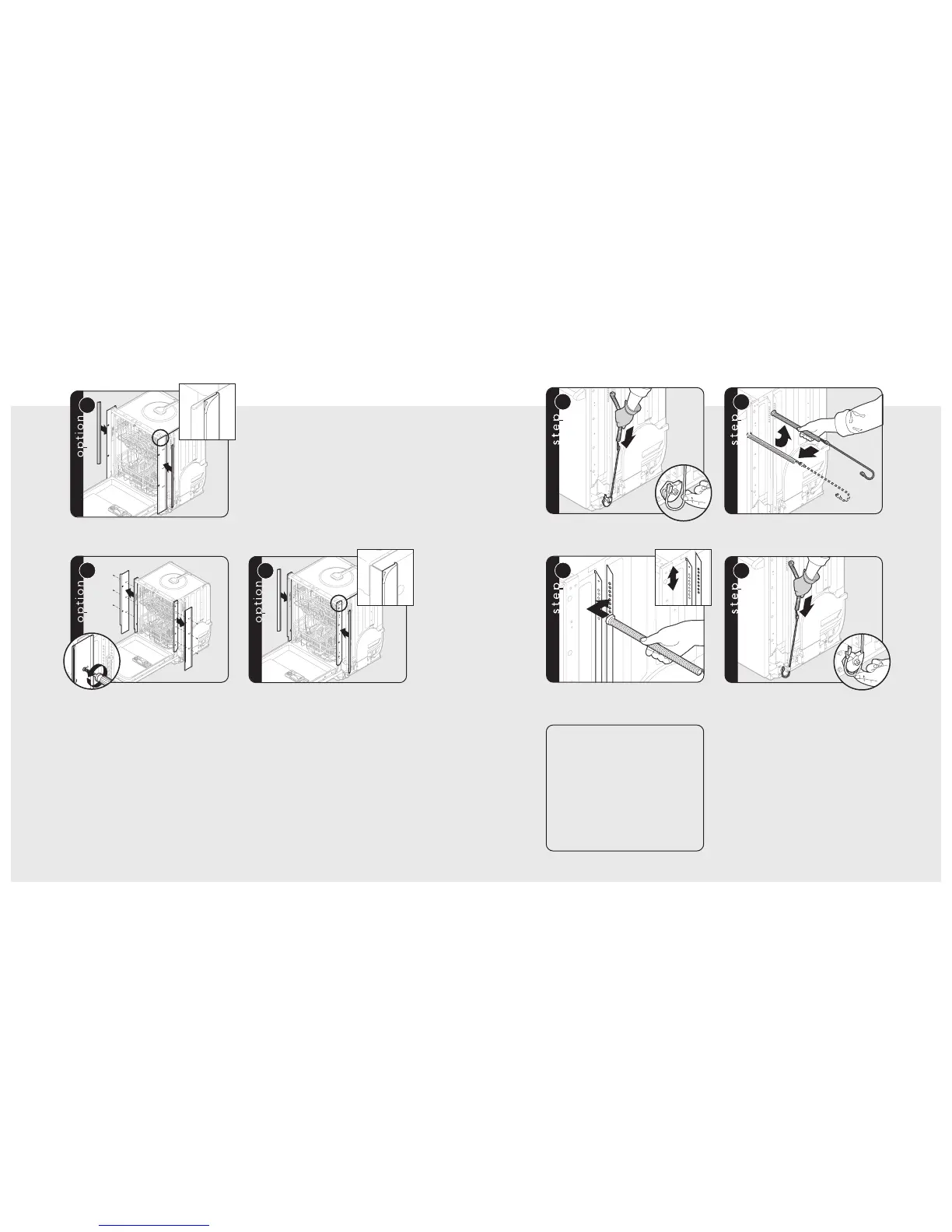

Counter Balance Spring Adjustment (if necessary)
1
1
2
1
2
2
Disconnect cable from hook.
Remove spring from dishwasher.
3
Increase
tension
Decrease
tension
1
4
2
Set counter balance spring connector in appropriate
location.
Reconnect cable to hook.
Note: For custom panel installation,
the door may require adjustment
to the preload of the counterbalance
springs. Follow these steps to
adjust the tension.
16
1a
Trim Installation Options (451 Models)
Dishwasher ships with trim installed for flush install. If
needed, attach wiper gasket to dishwasher by pulling
protective film off adhesive back. Apply behind
hemmed edge of side trim.
2
2
1b
1
x6
2b
To install dishwasher without trim, remove
the 6 screws (3 per side) and remove trim.
If needed, attach wiper gasket to dishwasher by pulling
protective film off adhesive back. Apply to leading
edge of dishwasher frame. Trim gasket to fit.
