Freezer Drawer, Bins, Baskets, Glides
and Glide Adapters (continued)

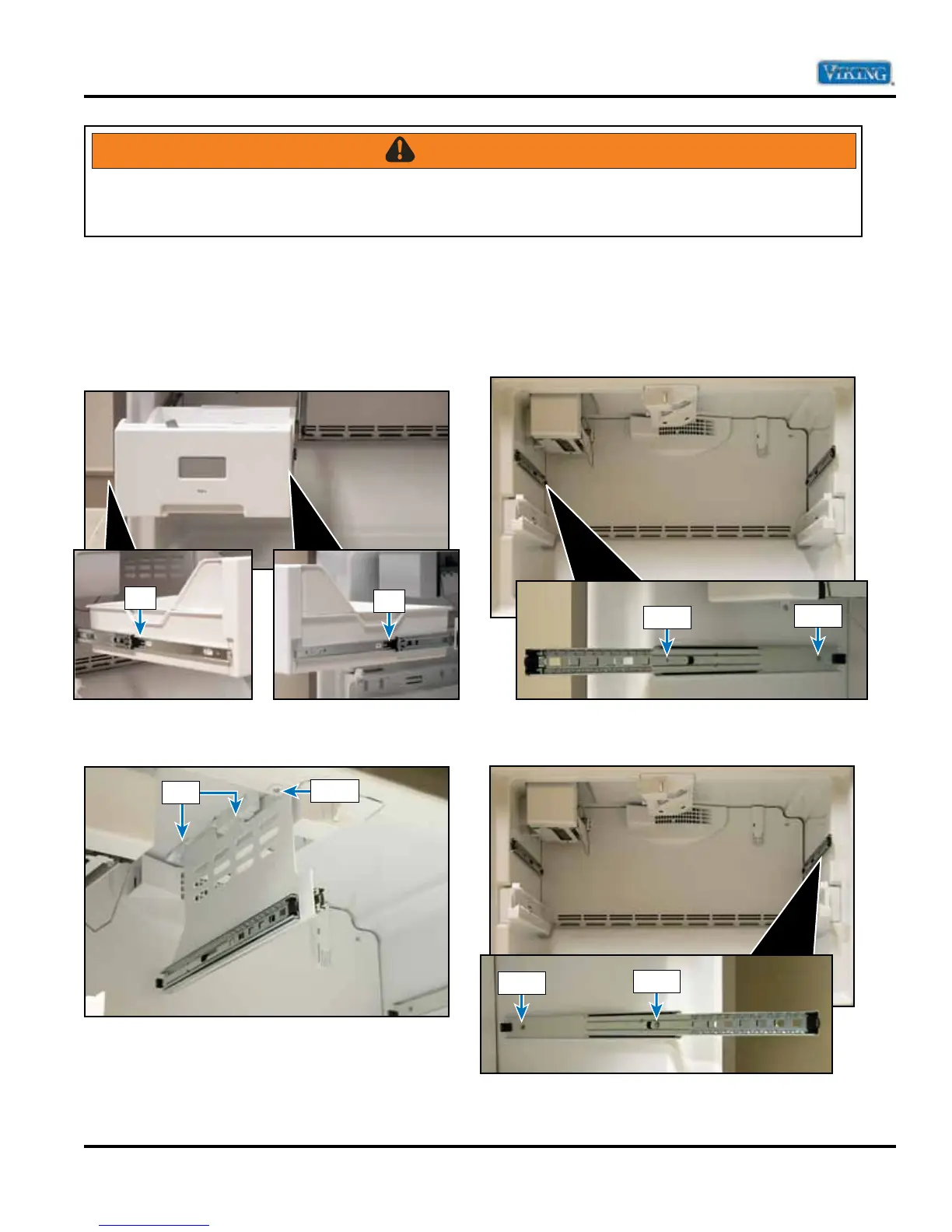

7. Pull out ice maker tray. Press release clips
inward on left and right glides. Pull ice maker
tray forward to remove.
8. Remove screw from center upper drawer glide
bracket.
9. Push bracket towards rear of freezer to
disengage tabs and remove center upper
bracket.
10. Extend left upper glide. Remove securing
screws to remove glide.
11. Extend right upper glide. Remove securing
screws to remove glide.
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit using power
switch before servicing. Wires removed during disassembly must be replaced on proper terminals to insure
correct earth ground and polarization. After servicing, reconnect power using power switch.
Service Diagnostics and Procedures–Disassembly
Clip
Clip
Screw
Tabs
Screw
Screw
Screw
Screw
To Next Page
