Viking RDSOE306 - Flush Mount Installation

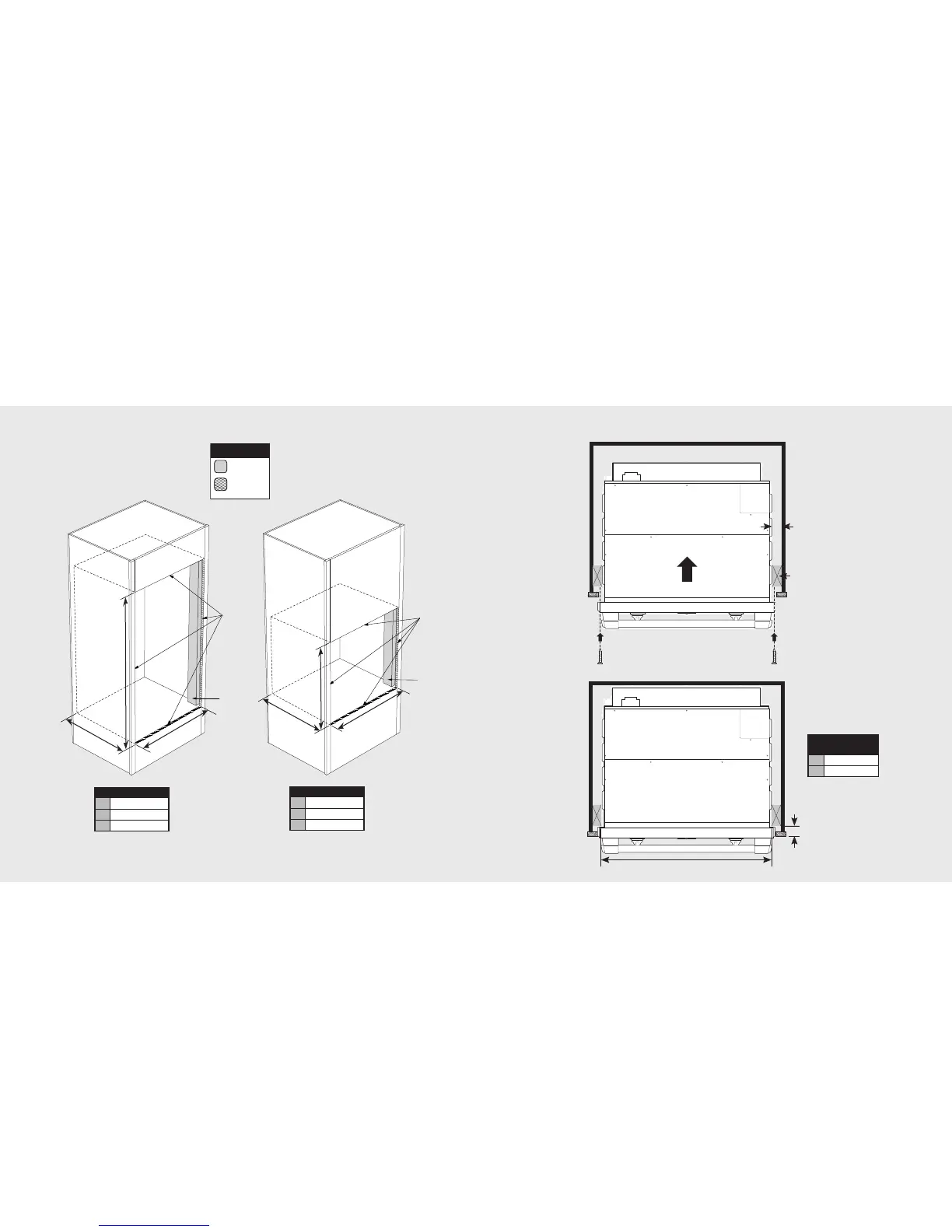

Dimensions (Flush mount installation)
9
Dimensions (Flush mount installation)
8
FLUSH CUTOUT
D 29-5/8” (75.2 cm)
E 25-1/4” (64.1 cm)
F 29-1/2” (74.9 cm)
Finished
Surfaces
Vertical
Blocking
B
A
C
FLUSH CUTOUT
A 29-5/8” (75.2 cm)
B 25-1/4” (64.1 cm)
C 51-1/2” (130.8 cm)
Finished
Surfaces
Vertical
Blocking
E
D
F
LEGEND
Blocking
Finished
Surfaces
ScrewScrew
Vertical
Blocking
Distance will vary
depending on the
cabinet
A
B
Top View
CRITICAL
DIMENSIONS
A 28-1/2” (72.4 cm)
B 1-1/2” (3.8 cm)
*Note: To install the oven in a flush mount application the flush mount accessory kit (D30FTS
for single ovens and D30FTD for double ovens) is required.
