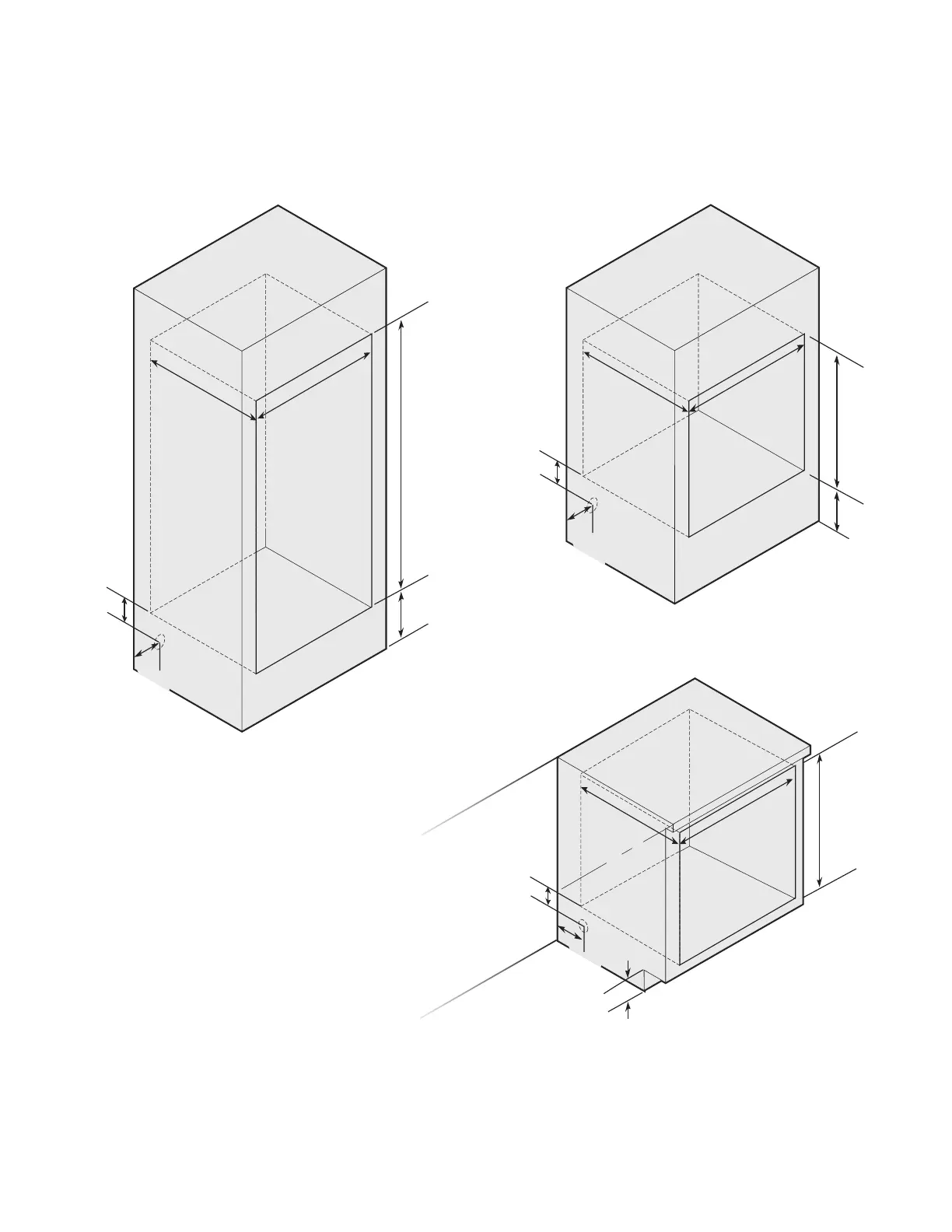

Cutout Dimensions
30” Single Oven
30” Double Oven
28-1/2”
(72.4 cm)
24”
(61.0 cm)
28-1/4”
(71.8 cm)
5” min.
(12.7 cm)
Junction box
location
17”
(43.2 cm)
28-1/2”
(
72.4 c
m)
28-1/4”
(
71.8 c
m)
24”
(61.0 cm)
28-1/2”
(72.4 cm)
50-5/8”
(128.5 cm)
15-1/4”
(38.7 cm) min.
to floor
4”
(10.2 cm)
5” min.
(12.7 cm)
Junction box
location
4-3/4”
(12.1 cm)
(Floor to bottom
of cutout)
5” min.
(12.7 cm)
Junction box
location
4”
(10.2 cm)
24”
(61.0 cm)
4”
(10.2 cm)
30” Single Oven
Undercounter
