20

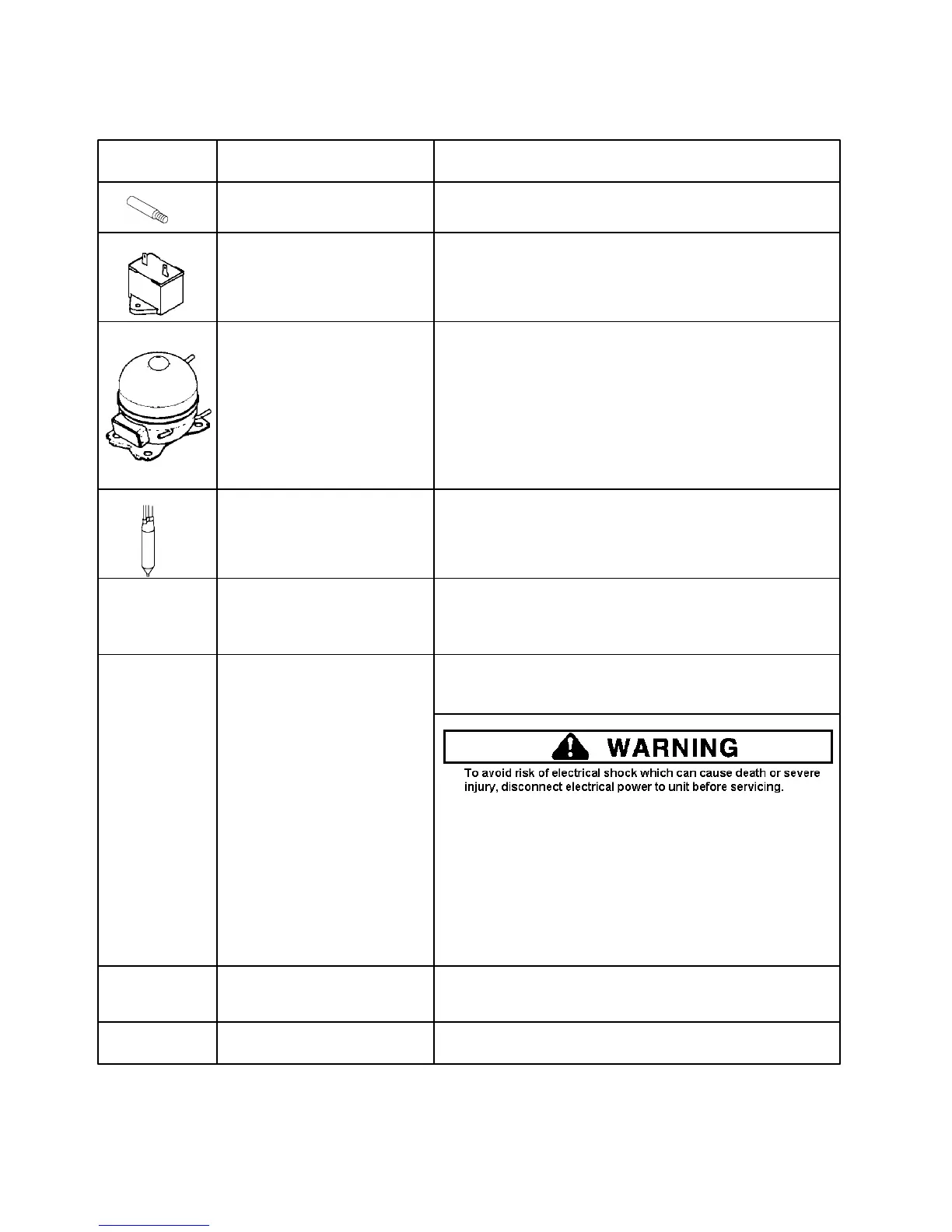

Component Specifications
Component Description Test Procedures
Bulb Volts 120VAC
Watts 40 watts
Capacitor, compressor run Volts 220VAC
Capacitance 15 µfc + 10%
- 5%
Compressor Type Fan cooled, R134a refrigerant
BTUH 970 BTUH
Volts 120VAC 60Hz
Watt 176 watts
Current: Lock rotor 21.3 A
Full load !.6 A
Resistance: Run windings 2.60Ω
Start windings 4.35Ω
Drier Drier must be changed every time the system is opened
for testing or compressor replacement.
Desiccant (20) 8x12.4AXH – 7 M. S.-Grams
Heater, evaporator Volt 120VAC
Wattage 450 ±5% W
Resistance 30 ± 5% Ω
Heater, Mullion Volt 120VAC
Wattage 20Watts
Resistance 661 ± 7.5Ω
For service use only,
foamed in place. Not
powered from the
factory.
To connect mullion heater to power:
1. Disconnect power to unit using power switch.
2 Remove toe grille. Locate water valve wiring harness.
3 Carefully, slit wiring harness vinyl sleeve to expose one
black and one white lead bent with bullet terminators.
4, Locate mullion heater leads at the left side of cabinet and
connect to black and white leads.
5. Wrap vinyl sleeve with electrical tape to close slit.
High voltage circuit board P.C. See “Electronic Functional Description”.
Low voltage circuit board See “Electronic Functional Testing”.
