Installation
Anti-tip Device Installation (Floor Mount)
2
1
x2
3
1
2
4
1

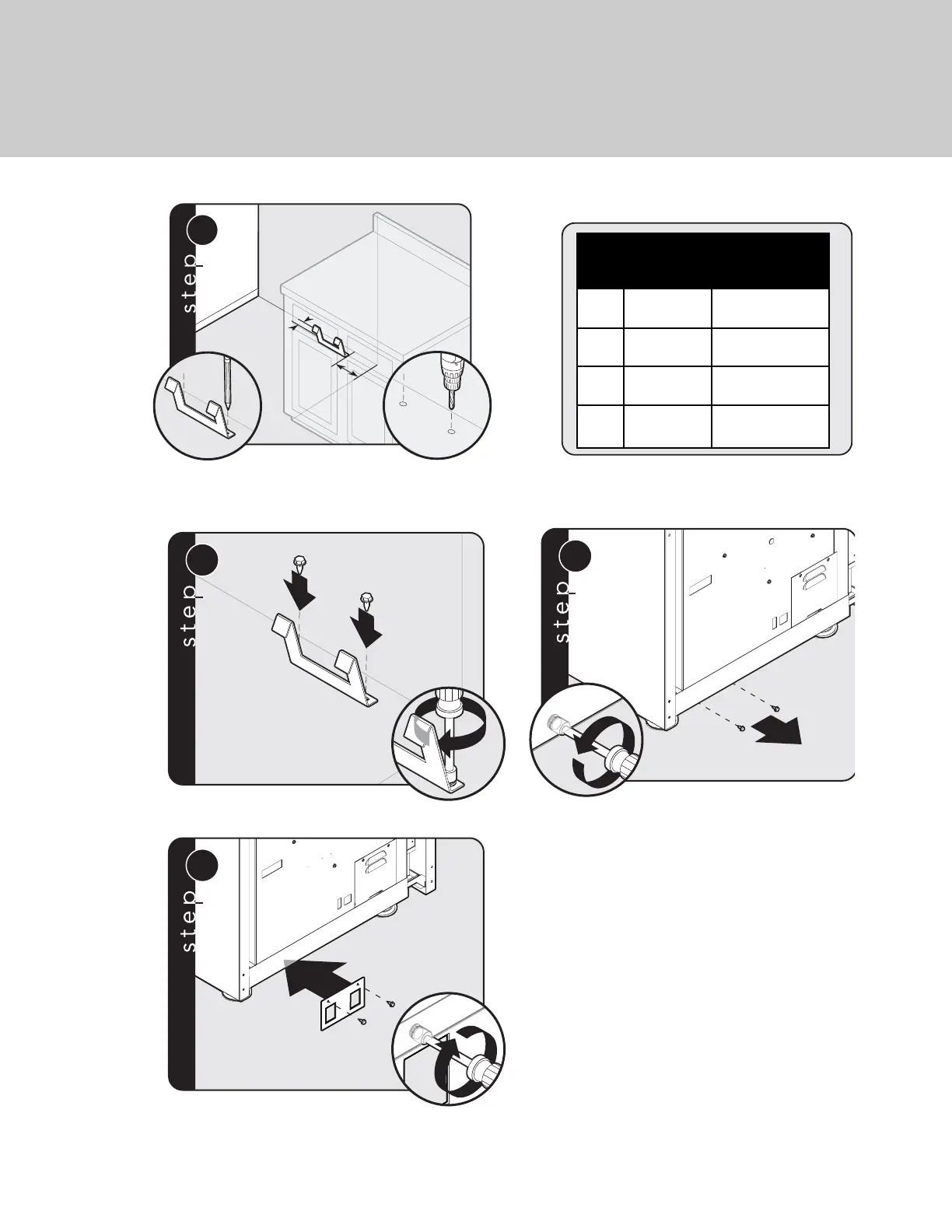

Remove two screws from back of range.
Attach bracket to back of range using two screws.
1
A
Ø 1/8”
Ø
1
/8
(.32 cm)
(.3
2
cm)
Ø 1/8”
(.32 cm)
1-1/4 + B*
1-1/4 + B*
1-1/4 + B*
Locate anti-tip bracket hook on the floor Dim A from side cabinet and 1-
1/4” (3.2 cm) from rear wall when using an island trim or high shelf. If using
an 8” (20.3 cm) backguard, add Dim B to the 1-1/4”.
Mark and drill 1/8” (.32 cm) holes where bracket will be located.
A B
*(Add only when
using 8” backguard)
30”
12-3/4”
(32.4 cm)
3/8”
(.95 cm)
36”
16”
(40.6 cm)
1/2”
(1.3 cm)
48”
16”
(40.6 cm)
1/2”
(1.3 cm)
60”
16”
(40.6 cm)
1”
(2.5 cm)
1
1
2
2
Mount anti-tip bracket hook to floor using screws provided.
