10 Appendix B - Field of View

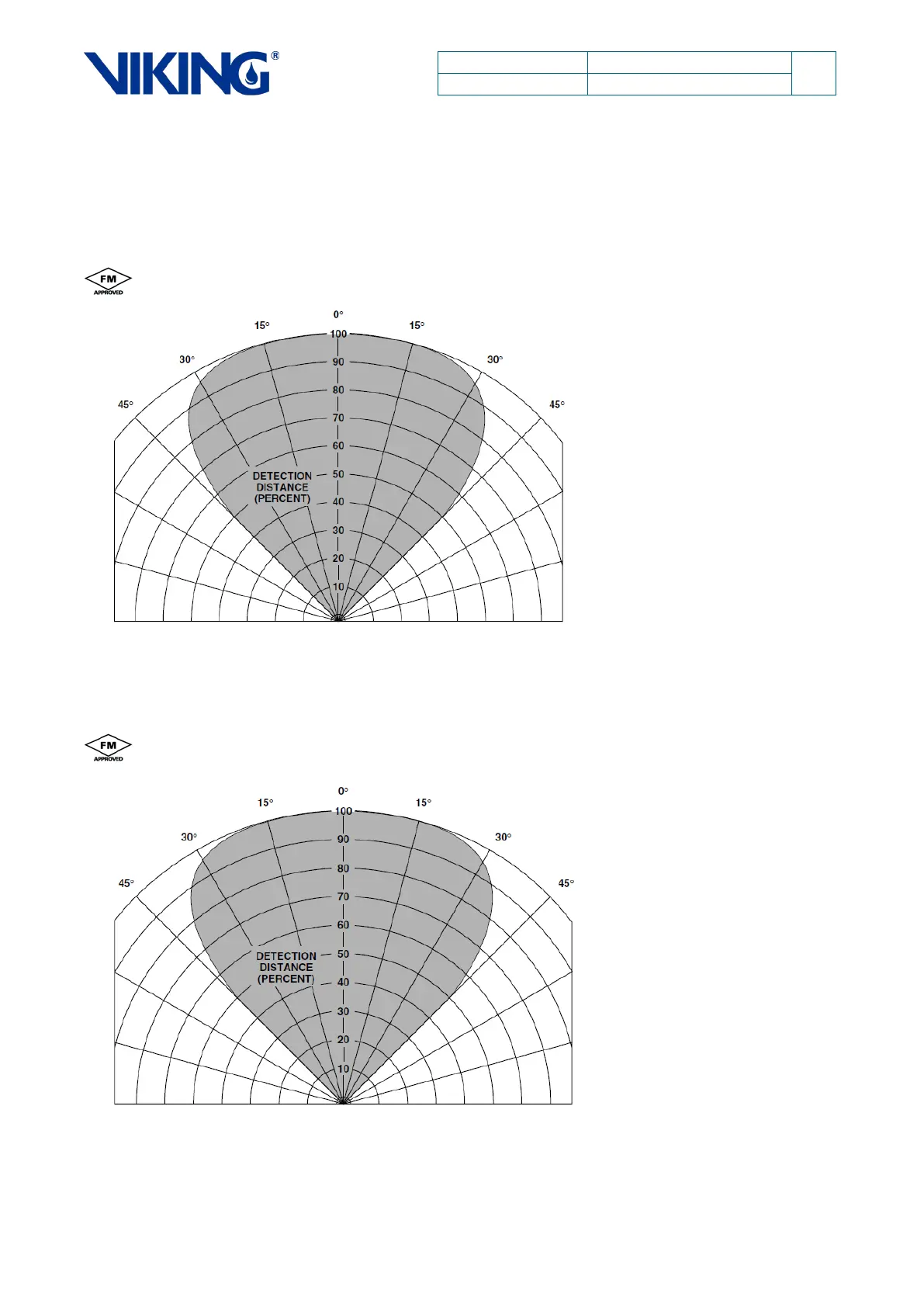

Horizontal field of view to a 1 ft
2
(0.1 m
2
) N-heptane pan fire with an alarm response at standard
sensitivity.
100% = 100 ft (30 m).
Vertical field of view to a 1 ft
2
(0.1 m
2
) N-heptane pan fire with an alarm response at standard
sensitivity.
100%= 100 ft (30 m).
