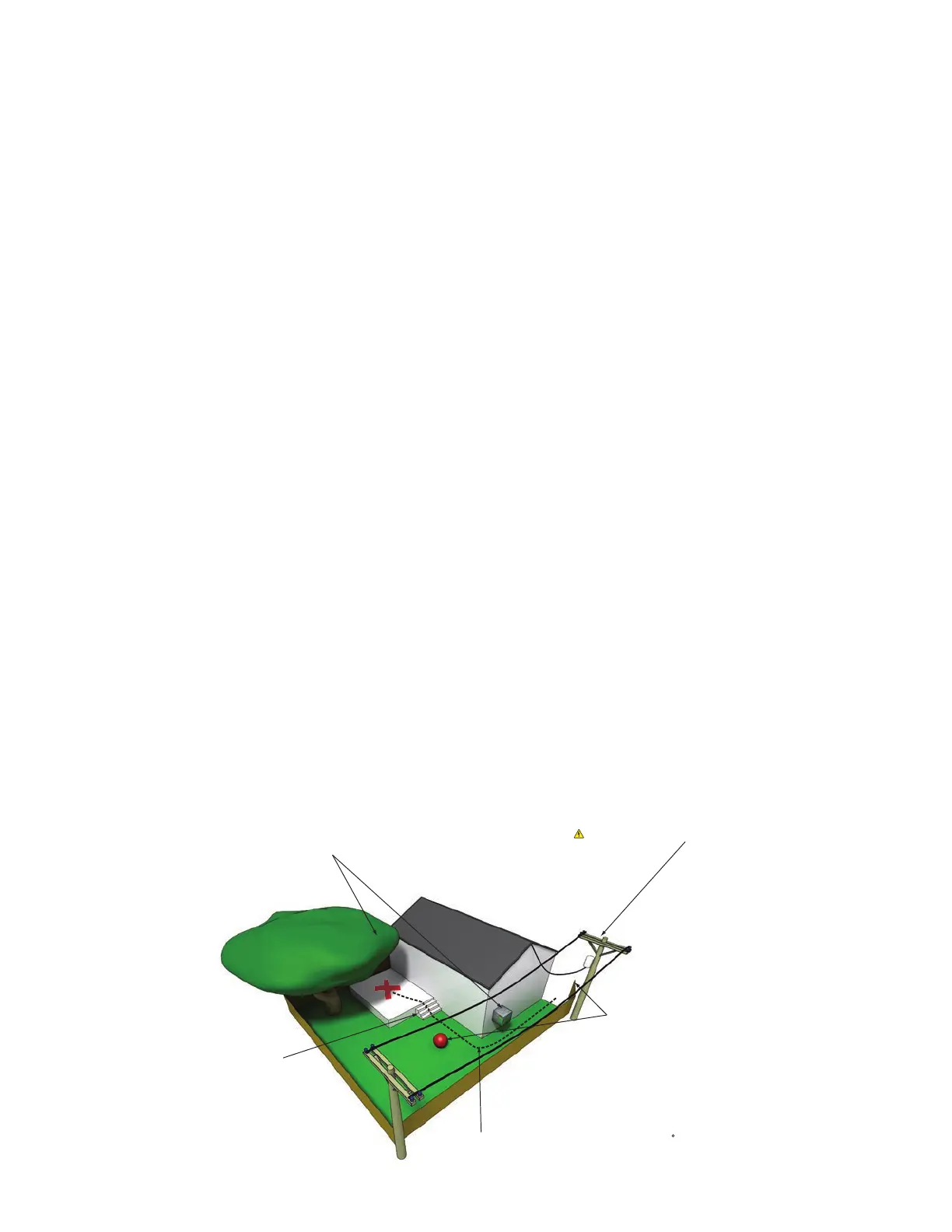

Obstacles such as overhanging tree
limbs, awnings, protruding gas meters,
water meters, and A/C units can
prevent easy access.
It may be necessary to remove a
gate, part of a fence, or other
items in order to dolly the spa to
the desired location.
If there are more than six
consecutive stairs without
a landing then you may be
required to find another
delivery path.
Check the measurements on 90 turns
to make sure the spa will fit through.
WARNING: Watch for power lines.
Electrical Requirements &
Installation Instructions
IMPORTANT: Provide a copy of these instructions to your
Electrician. e installation of all spas must be in accordance
with national and local wiring rules. Always have a licensed
Electrician perform the electrical installation. Each Villeroy &
Boch Spa is manufactured and tested to a standard that provides
maximum protection against electrical shock. Improper wiring
may prevent the spa from operating safely which could result in
electrical shock, injury or death. Improper wiring could also lead
to a malfunction of the spa’s equipment and risk of fire.
Drilling Conduit Hole:
All dimensions are at the bottom base.
1” (2.54cm) Conduit Drill 1-3/8” (3.49cm) hole 3/4” (1.91cm)
Conduit Drill 1-1/8” (2.86cm) hole.
Center of hole is 1” (2.54cm) from the ground.
Important Technical Information
Voltage Definitions: When reading these instructions, the term
120V~ refers to the 110-120V~ range of voltage, while the 240V~
term refers to the 220-240 range of voltage.
Wiring Connection: Appliance must be permanently
connected to fixed wiring.
Wiring Diagrams: In addition to the instructions that follow,
please reference the appropriate Wiring Diagrams (240V~/50Hz
Permanently-Connected).
Electrical Service Wire Size and Type: e size of wire
required to supply the spa with power is dependent upon the
length of the electrical run and should only be determined by a
licensed Electrician. Installation must be in accordance with all
national and local wiring rules. All wiring from the disconnect to
the spa must be copper to ensure adequate connections. Never
use aluminum wiring from the service disconnect or RCD
subpanel to the spa.
Spa Location
Overhead Power Lines: Based upon the national and local wiring
rules that apply to your area, you will need to install your spa at
the required minimum horizontal and vertical distances from all
power lines.
Service Disconnect: Based upon your area, a disconnect
device must be incorporated into the fixed wiring in accordance
with national and local wiring rules. If the national and local
wiring rules permit, a RCD Sub Panel may be used to substitute
the service disconnect, providing that it is located within the same
parameters.
Electrical Outlets, Switches and Devices: Based upon
the national and local wiring rules that apply to your area, you
must install your spa at or beyond the required minimum distance
from all electrical outlets, switches, and devices.
Bonding: Based upon the national and local wiring rules that
apply to your area, the Control System Box located inside the
equipment compartment of your spa must be bonded to all metal
equipment, handrails, fixtures, enclosures, pipe, or conduit that
are located within the maximum specified distances. e bonding
is to be connected to the ground lug connector on the exterior
surface of the Control System Box and all metal items previously
described.
