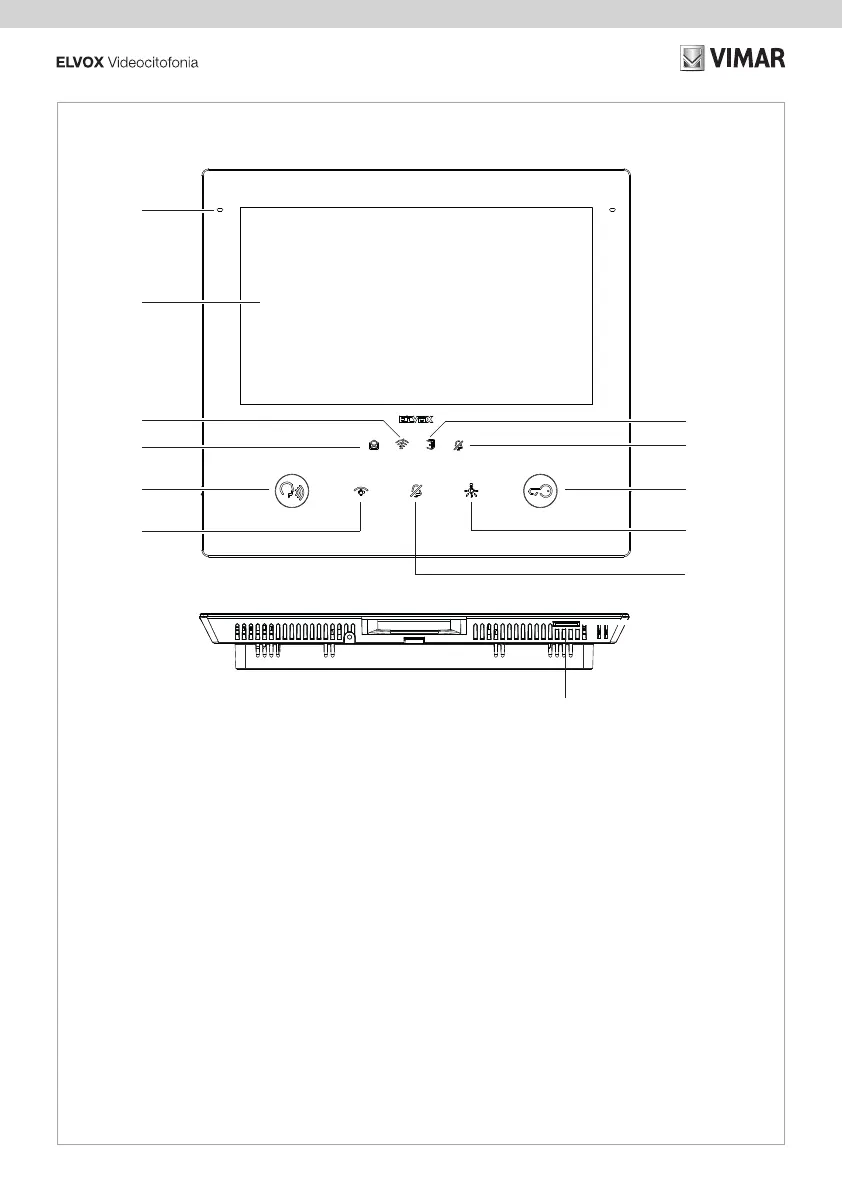

3.3.2.4 Fine Audio tuning
The audio adjustment described here is done from an open entrance panel, once closed the perceived audio result
will dier.
• Press 1 for at least 4 seconds until the name plate label LEDs start to ash (starting audio conguration); at this point, the
outdoor station goes to standby (out of conguration status).
• with outdoor station in talk following a call/self-start, pressing the following push buttons the setting will remain (at the limit stop
a “set audio” beep will be emitted).
a. 1 - 2 adjusts the speaker;
b. 3 - 4 adjusts the microphone;
• The adjustment procedure ends when:
- push button 7 is pressed;
- a call from an indoor station is closed;
- there is an outdoor station timeout (end of communication with the indoor station);
The audio level can be set according to 10 available levels.

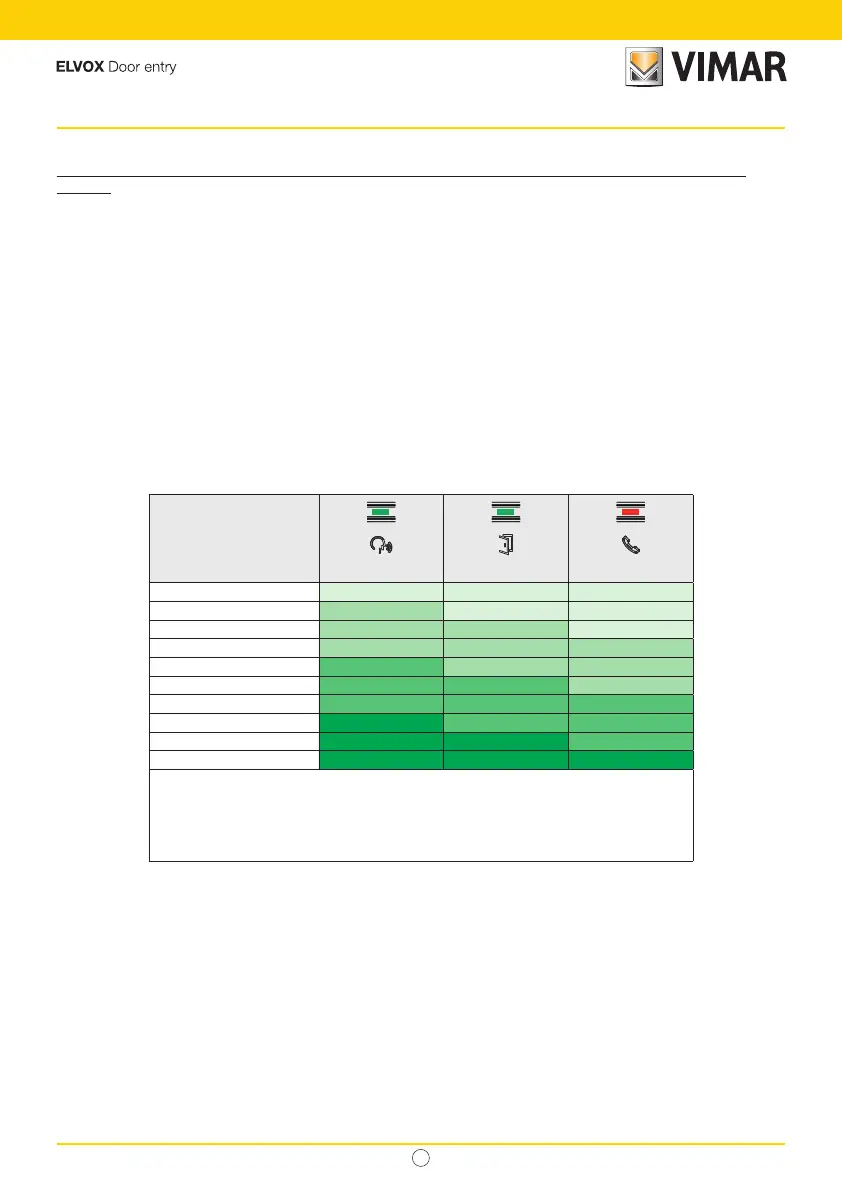

Signalling during audio adjustment
Audio level
(Green LED) (Green LED) (Red LED)
Level 1 0 0 0
Level 2 1 0 0
Level 3 1 1 0
Level 4 1 1 1
Level 5 2 1 1
Level 6 2 2 1
Level 7 2 2 2
Level 8 3 2 2
Level 9 3 3 2
Level 10 3 3 3
Key:
0 → LED o;
1 → LED ashing slowly;
2 → LED ashing quickly;
3 → LED on steady;
