4 Operation
4.1 Video door entry functions

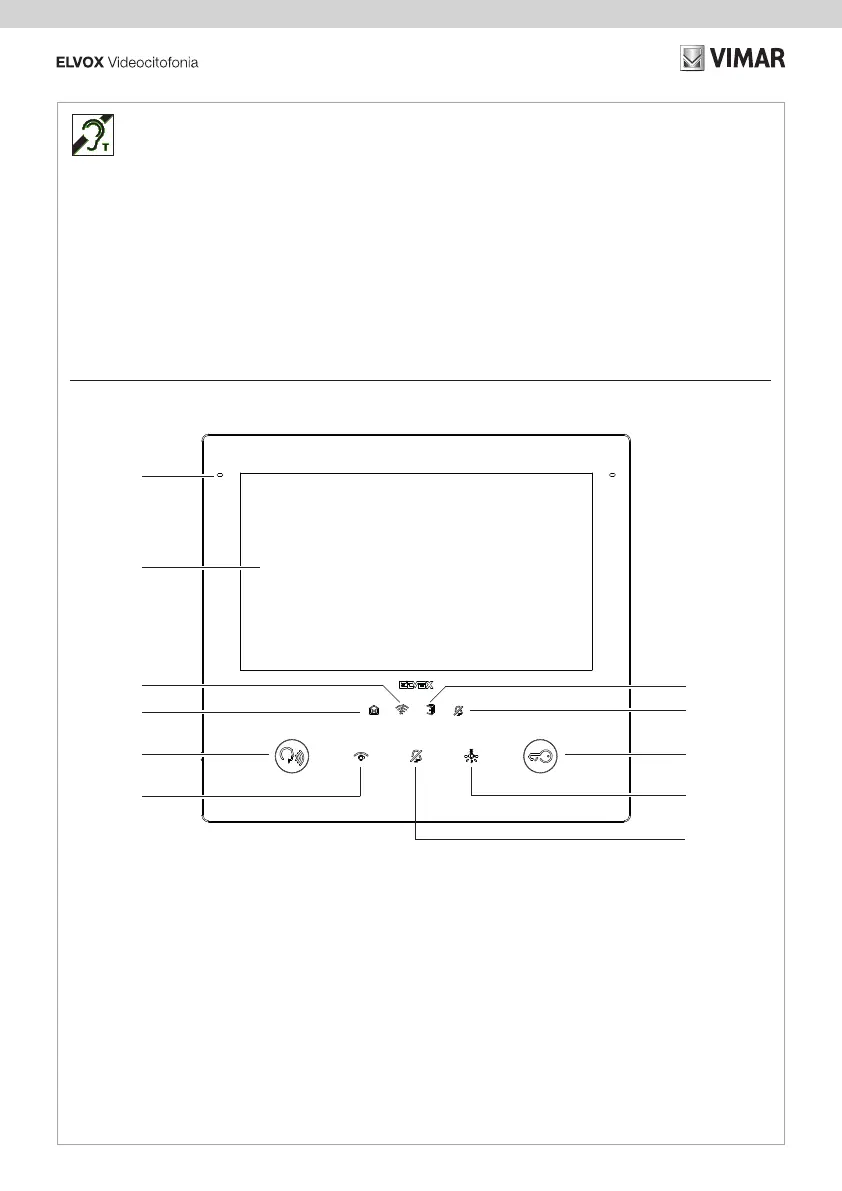

4.1.1 Calls to Indoor Stations

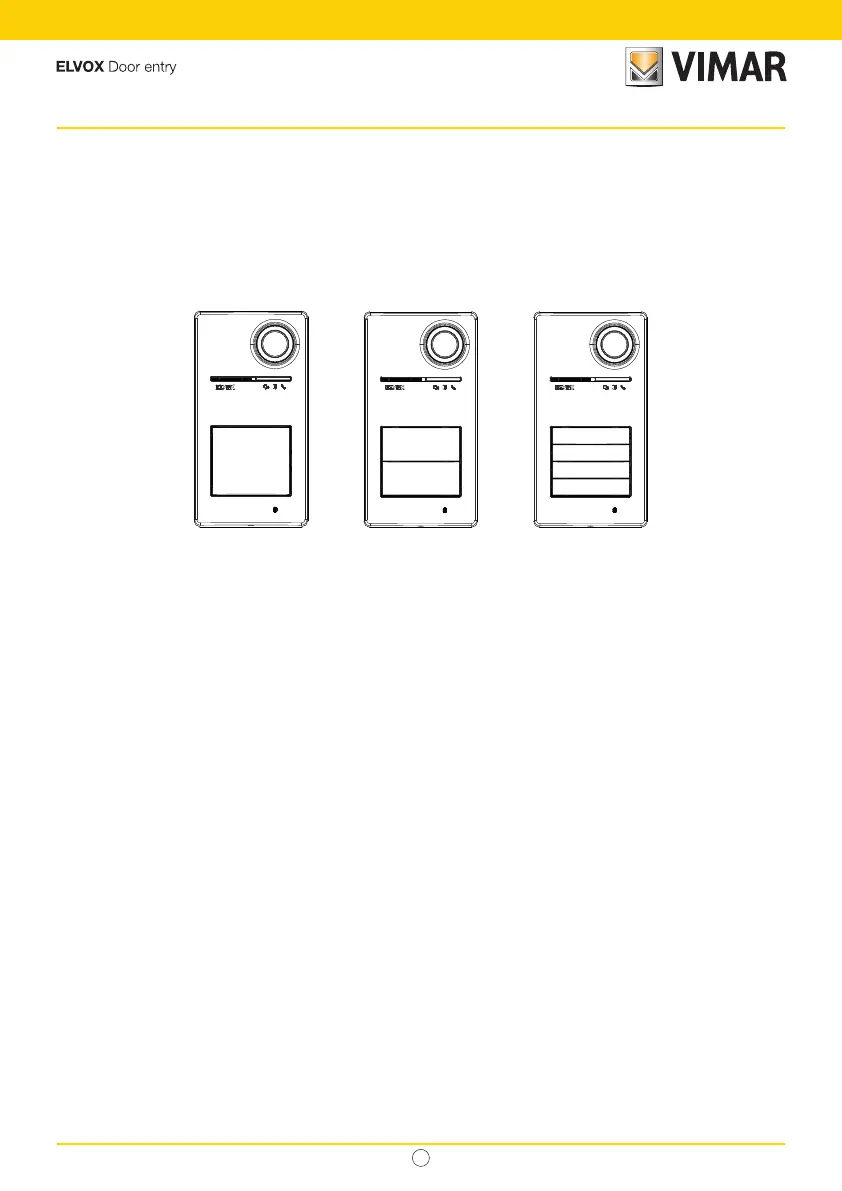

The outdoor station can mange up to 4 video door entry calls to 4 internal users.
1 call button 2 call buttons 4 call buttons
ID1
ID3
ID1
ID1
ID4
ID2
ID3
Default correspondence of call buttons - ID code of the Due Fili Plus system
4.1.2 Lock release control and additional push buttons
An electrical lock connected directly to terminals S+ and S- can be controlled and an additional local push button can be connected
to release a door lock to terminals CA+ and CA-.
Alternatively terminals CA+ and CA- can be congured (via SaveProg and dip-switch) as the input of a sensor for signalling “Door
open”.
