EN
17
Roxie: 40170

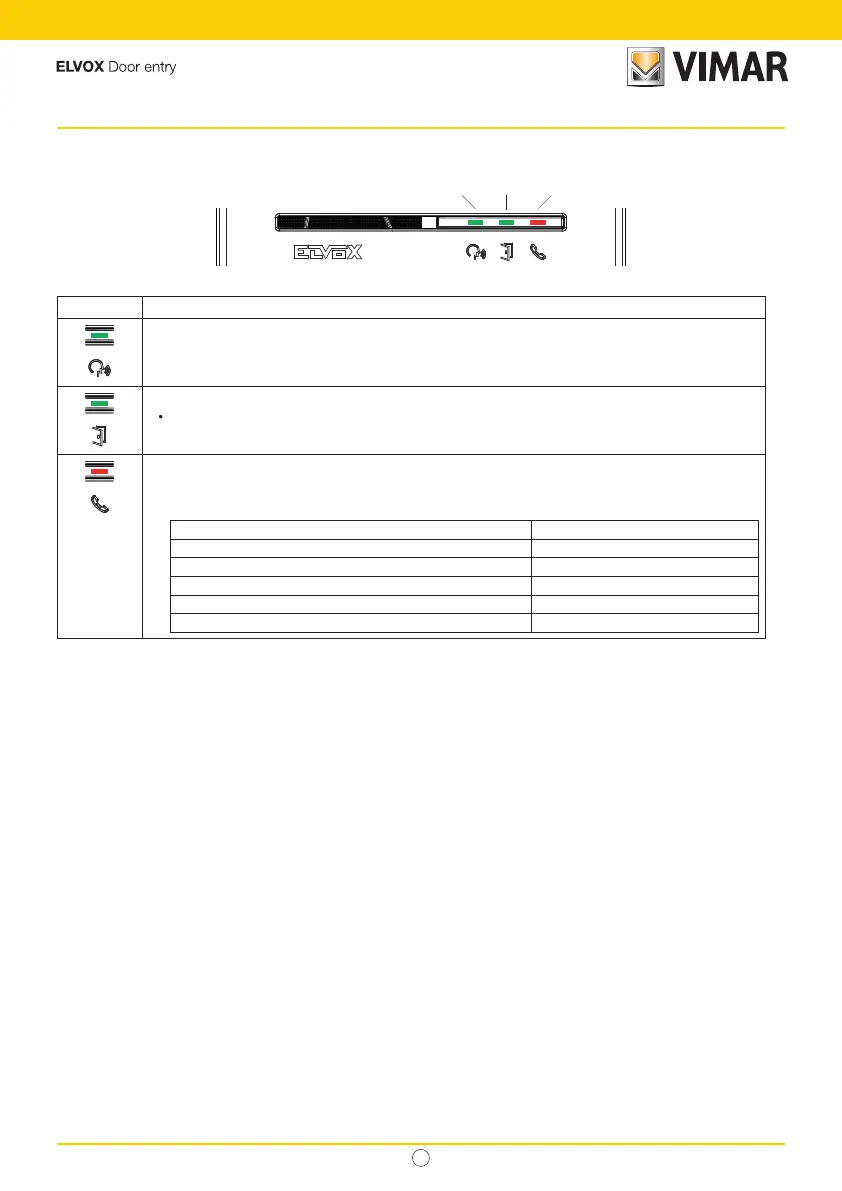

4.1.3 Signalling during normal video door entry system operation
Green RedGreen
LED Meaning
Green LED:
•
Flashing → signalling call in progress (0.5 s on, 0.5 s o, cycle 1 s);
•
On → signals active communication;
Green LED
On → during the lock actuation;
Red LED
•
On → signals Bus busy;
•
Flashing → no communication as described in the following table “Flashing red LED”:
Situation Flash type and duration
Attempt to call with BUS busy ashing for 2 s
Call to indoor station with user absent fast ashing for 5 s
Call to indoor station busy slow ashing for 5 s
The indoor station called does not exist ashing for 1 s
Secondary ID assignment with parent > 50 ashing for 1 s
