Description
Tab surface-mounted entryphone for Due Fili system with handset,
speaker for electronic calls, capacitive keypad for entryphone functions
and intercom calls. Equipped with 4 keys for the main video door entry
functions: door lock release, self-start, auxiliary services (stair lighting),
ringtone muting and 4 additional programmable keys used to execute up
to 4 auxiliary functions or intercom calls.
It is possible to control the following: ringtone volume, ringtone muting by
activating the “ringtone mute” function ringtone type selection. Possibility to
select different ringtones for calls made from different points, e.g.: outdoor
station, landing call, intercom call.
LED signalling of “door/gate open” and “Unanswered calls” (up to 4 calls).
For use in Due Fili Plus systems.
Article 7509/D has a hearing aid function.
Before programming, read the instructions carefully to gain a clear
idea of the characteristics, functions and features offered.
Technical characteristics
• Surface-mounted outdoor entryphone in ABS with mirror gloss finish on
front panel.
• Designed for external surface-mounting or fixing to a wall or box (can be
mounted directly on the wall using wall plugs or to a Vimar V71303 type
unified 3-module rectangular flush-mounting box or a 60 or 70 mm round
flush-mounting box).
• Desktop installation is possible with the desktop base accessory 753A
and the interconnecting stud 753B (sold separately).
• Touch-sensitive keypad.
• Due Fili bus power supply
• Power consumption:
- in standby: 7mA
- maximum conversation current: 60mA
- peak current limited to call time: 100mA
• Operating temperature: 0° to 40°C
• Electronic ringtone: different ringtones for panel call, intercom call and
door call.
• 10 different ringtones can be selected.
• Output for additional ringtone Art. 860A or relay art. 0170/101.
• Input for landing call.
• Entryphone dimensions: 105x180x35 mm
The instruction manual can be downloaded from the website
www.vimar.com
Keys:
If the entryphone is in stand-by or busy, the keys must be
pressed for at least 0.4 s. In any other state they are “rapid”.
A Self-start: for self-start/auto-activation of the entryphone
(to Master entrance panel by default).
B
Ringtone muting: Switches the ringtone muting on/off with
the entryphone in stand-by. During a call from an outdoor
station, it mutes the ringtone for the current call and all
subsequent calls.
In conversation it switches the received audio amplification
by + 3 d. Remains after the entryphone is switched off.
Functions for all calls.
C
Lock: lock opening command (programming can be ad-
justed using the SaveProg software).
D
Auxiliary 1 (stair light): For auxiliary service (actuator 1 of
relay 69RH or 69PH activated by default).
E1
Push button
1: Programmable push button to activate
auxiliary service or intercom call (actuator 2 of relay 69RH
or 69PH activated by default).
E2
Push button
2: Programmable push button to activate
auxiliary service or intercom call.
E3
Push button
3: Programmable push button to activate
auxiliary service or intercom call (last calling entrance panel
function F1 activated by default).
E4
Push button 4: Programmable push button to activate aux-
iliary service or intercom call (last calling entrance panel
function F2 activated by default).

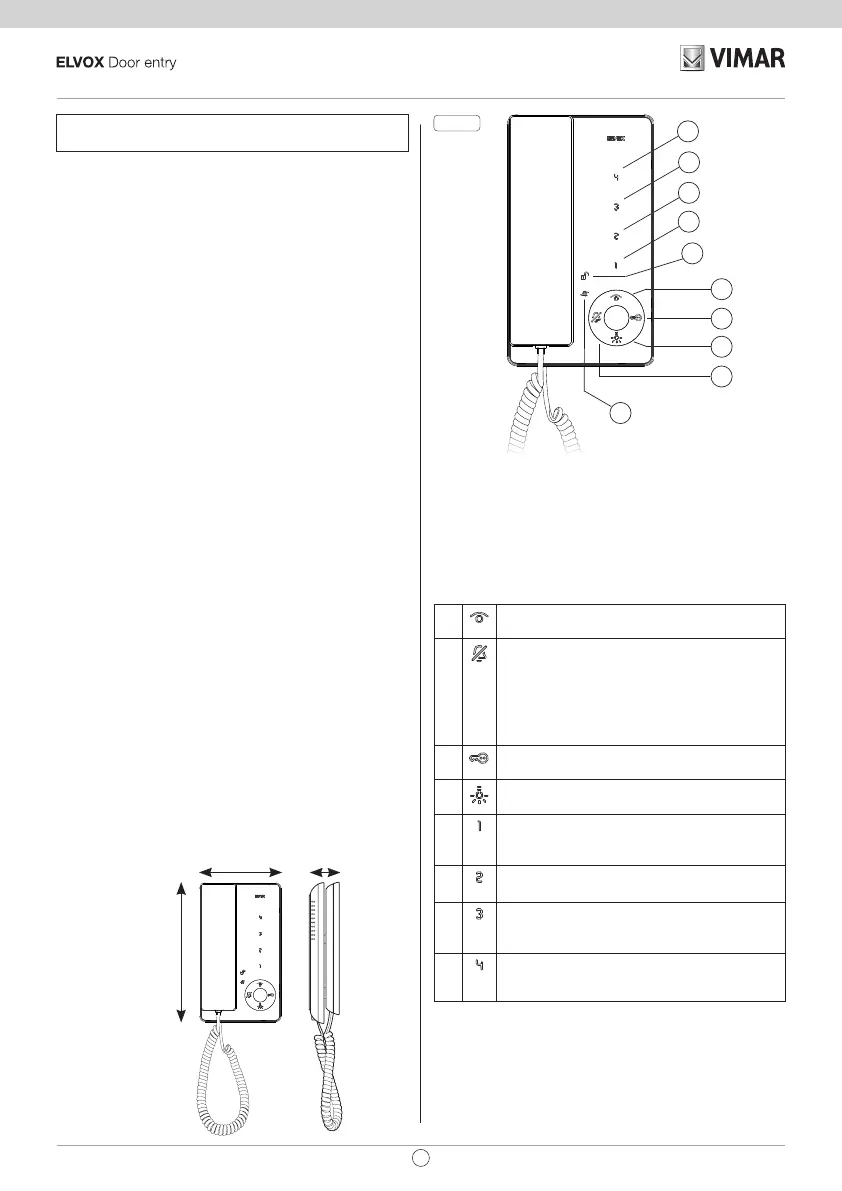

Fig. 1
A
C
D
B
E4
E3
E2
E1
G
F
105 mm
180 mm
35 mm
Dimensions:
8
EN
TAB: 7509
