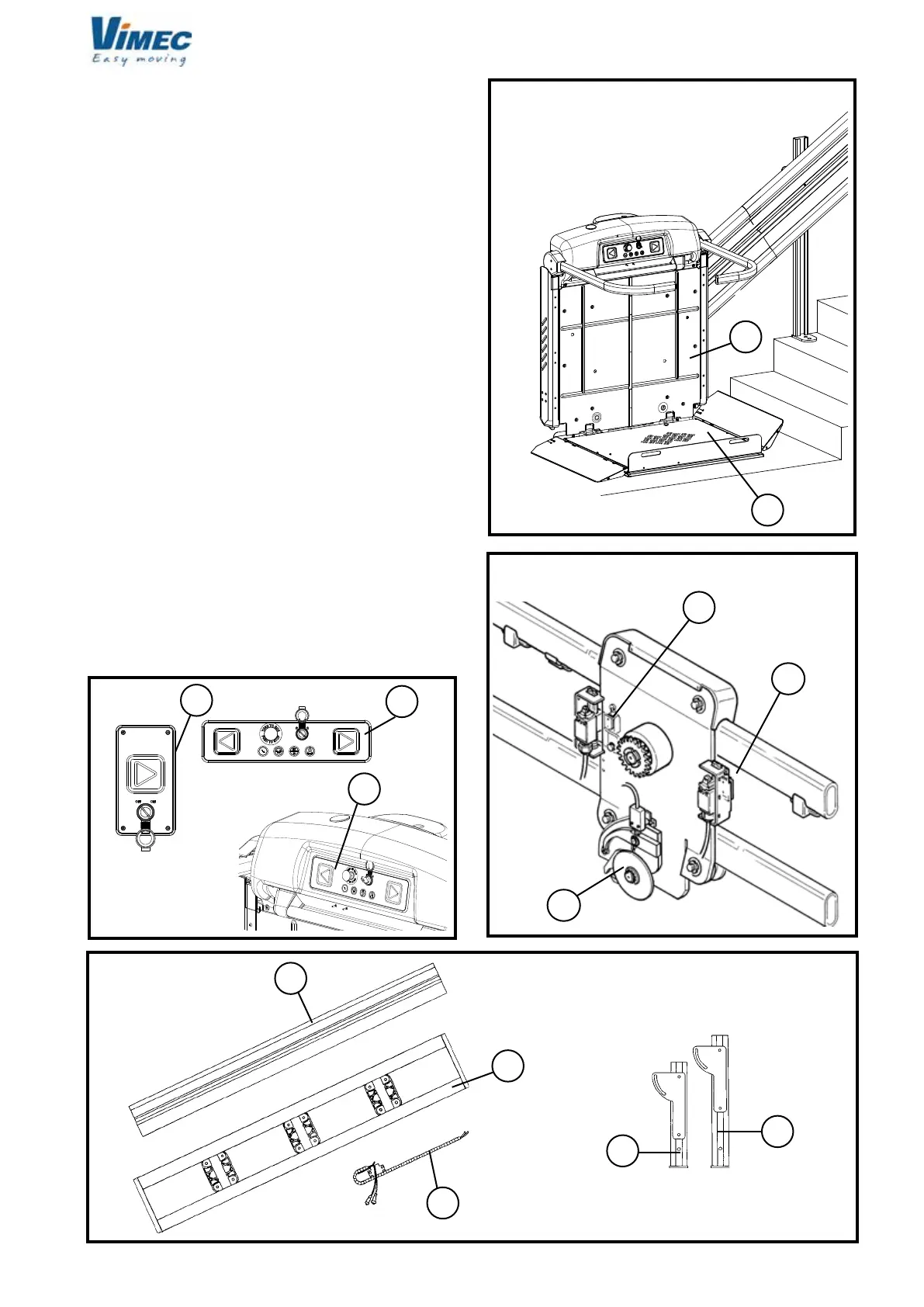

1) SYSTEM SUPPLY CONDITION
The stairlift is supplied subdivided into the following
components:
Lift structure (Fig. 1/a)
Complete with gear motor, safety bars, drive compo-
nents and electrical system.
Carrier platform (Fig. 1/b)
Complete with guard boards and sensor base controlled
by safety microswitches.
Drive carriage (Fig. 2)
Complete with safety gear - Fig. 2/a.
Lift control board (Fig. 3/a)
With lift up/down buttons.
- Emergency push-button
- Bell push-button
Control board at oor (Fig. 3/b)
With lift up/down button.
Rail unit (Fig. 4)
Comprising:
- Complete rail constructed to measure (Fig. 4/a).
- Chain holder prole (Fig. 4/b).
- Cable and wire holder chain (Fig. 4/c).
- Feet for stairs (Fig. 4/d) (optional).
FIG.1
FIG.2
FIG.3
FIG.4
