vimec V 64 - Page 21

21
40
Ø 7
15
Ø 10
Ø 5
a
b
c d
e
A
A
F
d
c
h
g
g
g
a
g
B
B
b
f
c
80
e
7511131

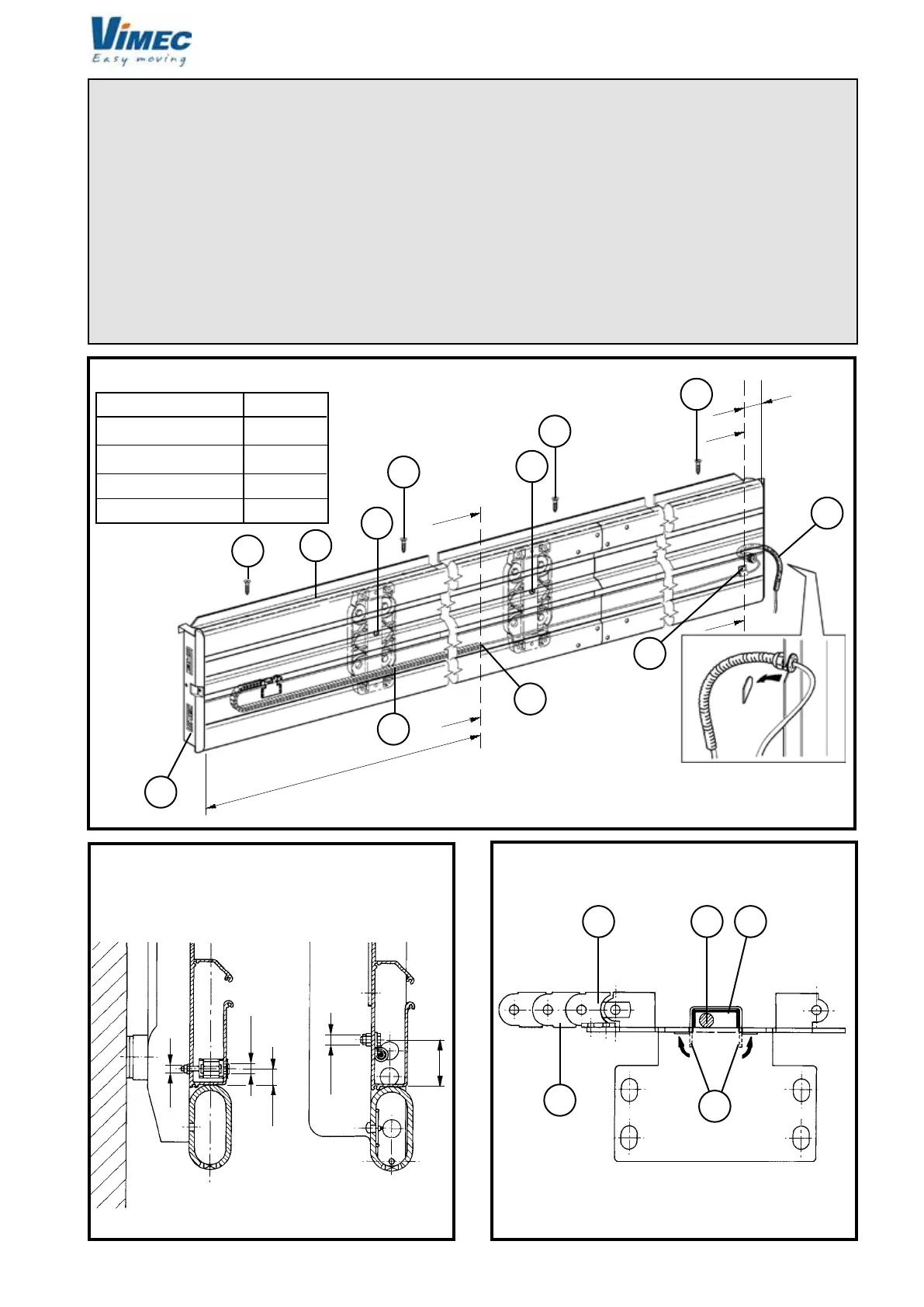

MODULAR OR STOCK RAIL:
- Holding to the specic dimensions (Fig. 9) for each equipment, proceed to the drilling of the chain
holder prole (aluminium casing - Fig. 10).
- Assemble the terminal link (Fig. 11/a) to the cable holder chain (Fig. 11/b) and x it to the support.
The cable (Fig. 11/c) must be placed with the protection guard (plus its seal - Fig. 11/d) bending the two
tongues (Fig. 11/e).
- Insert the cable holder chain (Fig. 9/f) and x it with the special screw TSPCE M4x45, washer 6x18
and self-locking nut M4. Fix the cable-stopper clamp (Fig. 9/b) with the special screw TE M6x14 and
self-locking nut M6.
- Assemble and x the telescoping plate (Fig. 9/h) with self-tapping screws 4.8x13 (Fig. 9/g).
- Assemble and x the cable guide prole.
- Assemble the guard and the cover with the special self-threading screws 4.8x13, on the rail lower side
(Fig. 9/d).
FIG.9
FIG.10 FIG.11
LOWER SIDE
UPPER SIDE
SECTION A-A SECTION B-B
Rail length
Dimension F
from 1500 to 3300
from 3300 to 6900
from 6900 to 14100
from 14100 to 20000
1400
3200
6800
9835
7512131
