V30 models
1 Rubber cover 2 Screw
4 & 7 Screw 5 Top hinge module
8 Lower hinge module-Left 9 Cabinet’s leg-short

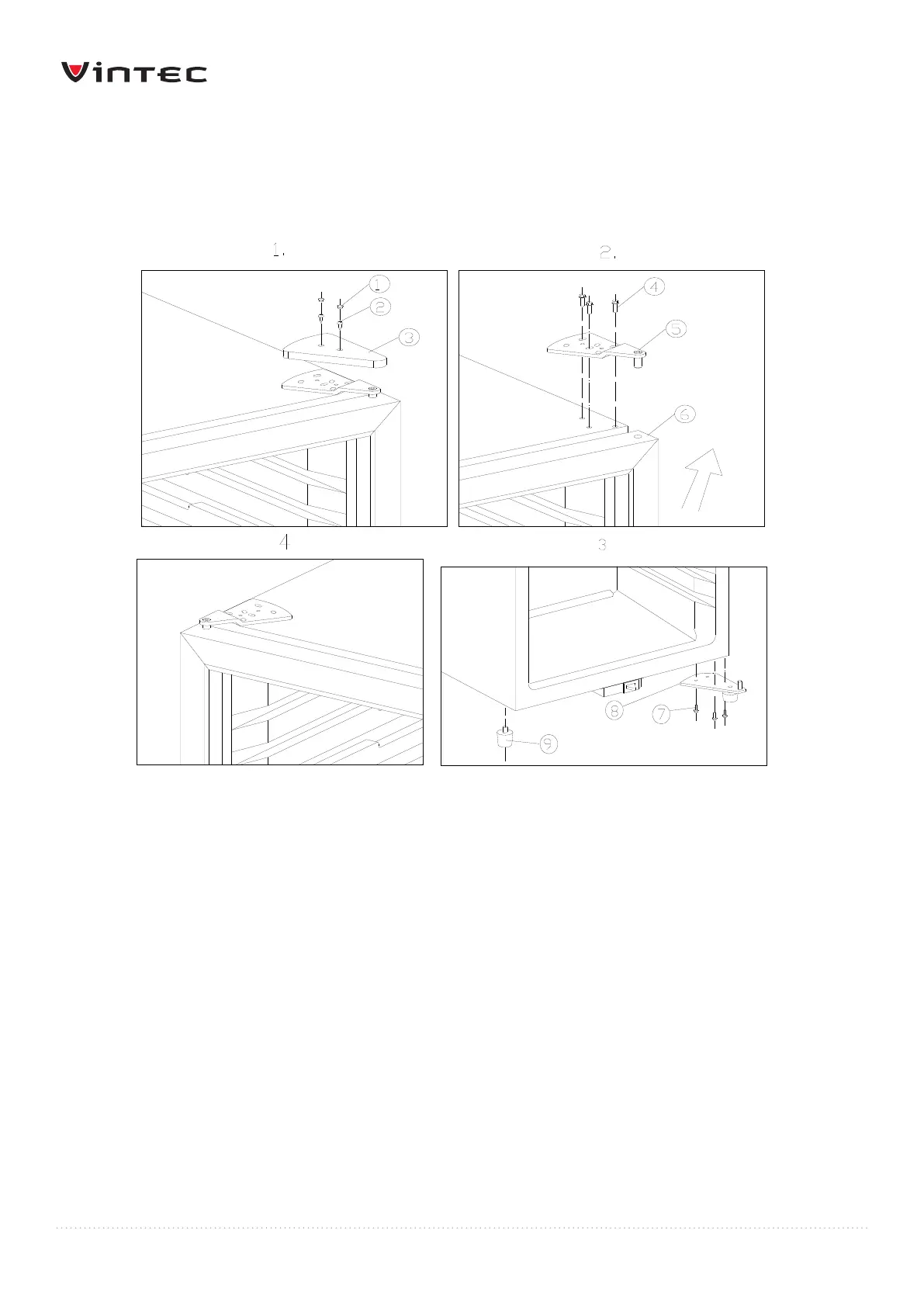

- Unscrew and remove the decorative cover. (Fig.1)
- While holding the door firmly, loosen and remove the top hinge, lift up and remove the
door (See Fig.2)
- Unscrew the lower hinge (8).
- Remove the long cabinet leg (9) on the left side, and shift it to the right end side. (Fig. 3)
- Install the lower hinge and tie it with the bolts.
- Install the door on the axis of lower hinge (8) the same way it was removed, screw back
the top hinge on the right
- Fix back the decorative cover and rubber cover.
3 Hole covers
6 Door
