V30SGME V30SGMEBK V30SGES3 AL-V30SGE 19
User Manual

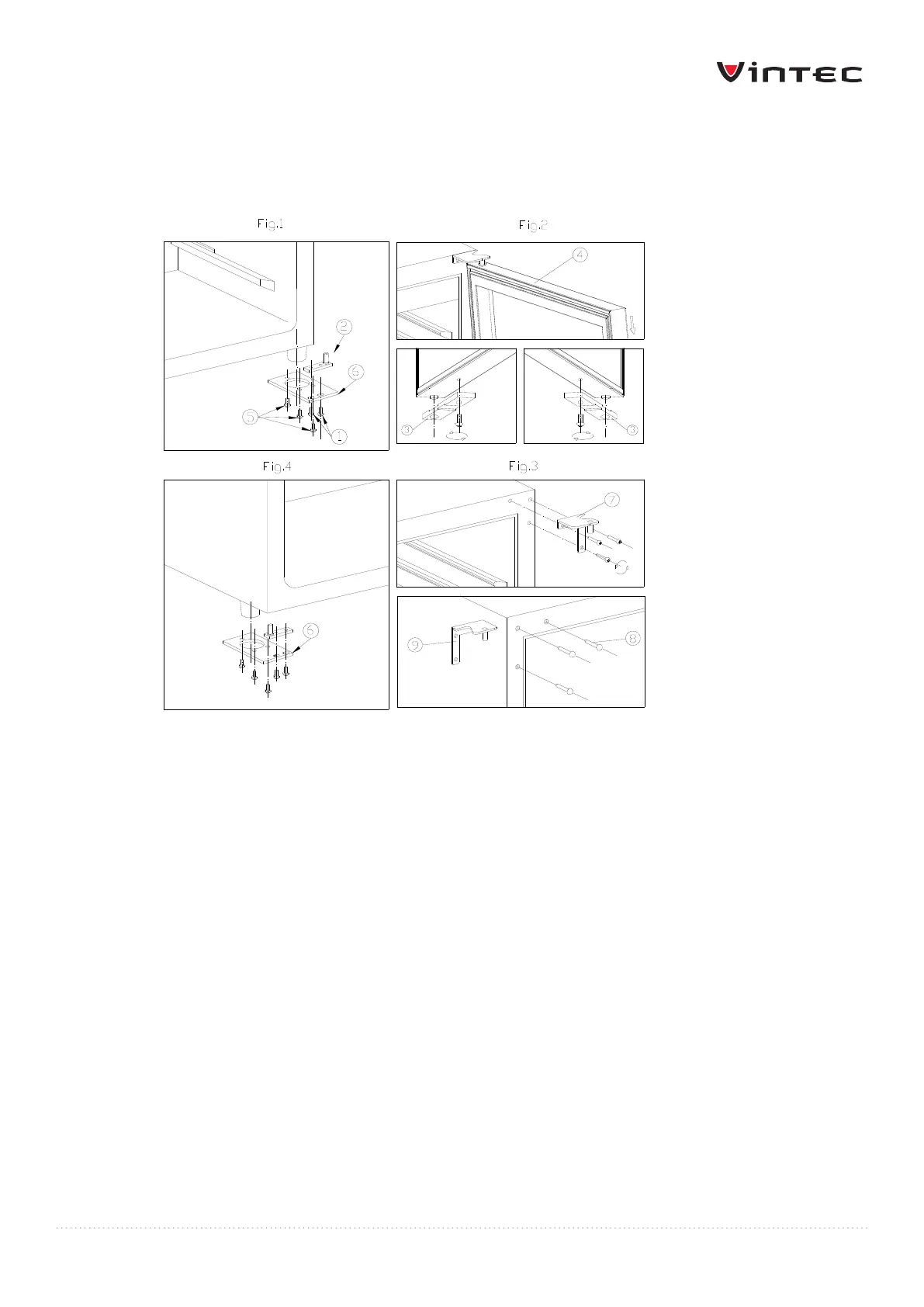

V30SGM e BK model
1. Screws 2 . Door axis 3 . Door limit device
4. Door 6. Lower hinge
7. Top hinge(Right)
5. Hinge Screws
8. Hole covers 9. Top hinge (Left)
1. Open the door to a 90 degree angle, take out the 2 screws (1) from door axis (2),
remove the door (4), Remove the Door axis (2) (Fig. 1& Fig.2).
2. Unscrew the screw located
underneath the door frame and the limit device (3), and re
locate it at left end side of the door frame. (Fig. 2)
3. Take out the 3 hinge screws from the top hinge (right) (7) and remove it. (Fig. 3)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (9)
at left top of cabinet with 3 screws. (Fig. 3)
5. Overturned the lower hinge(6). Install the lower hinge at left lower of the cabinet with 3
screws(5).(Fig.4)
6. The door axis(2)
revolves 180 degree, Put it into the door axis hole of the door. (Fig.4)
7. Install and aligned the door.
Screw down the 2 screws(1). (Fig.4)
8. Insert the plastic caps to cover the holes(8).
