Vintec V50SG e - V40 Models: 85 mm Recess Door Reversal; V40 85 mm Plinth Hinge Removal; V40 85 mm Plinth Door Reinstallation

15
- Fix the left top hinge and the bottom left hinge with the bolts as per Fig. 4,
- Re-install the door the same way it was removed and fix back the door axis.

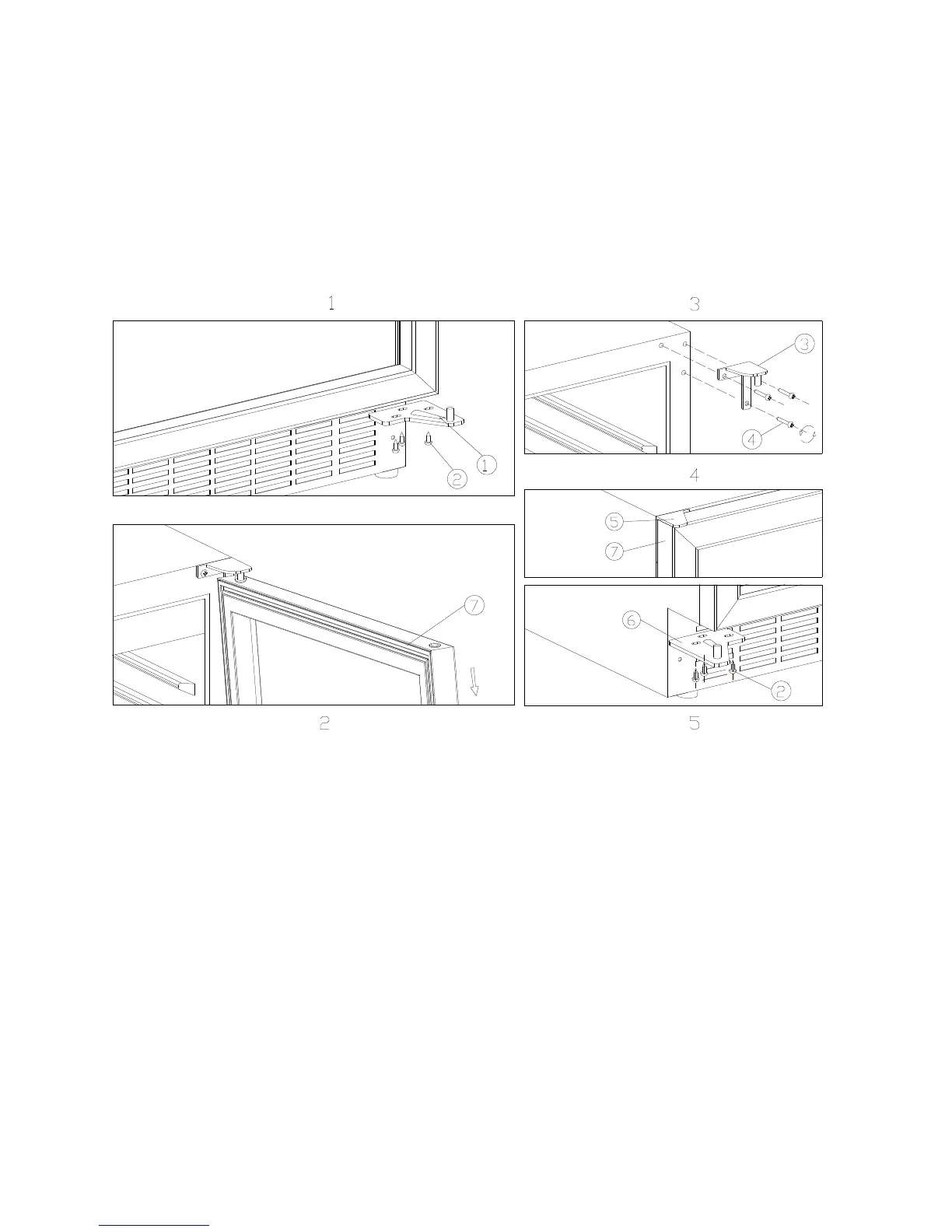

V40 models (85mm recess plinth)
1 Lower hinge (Right) 2 Lock screws 3 Top hinge (Right)
4 Lock Screws 5 Top hinge (Left) 6 Lower hinge (Left)
7 Door
- While holding the door firmly, remove the three lock screws (2) from the lower
right hinge module, and remove it.（Fig.1)
- Remove the three lock screws (4) from the top right hinge and remove the hinge
(3) . (Fig.3)
- Fix the top left hinge (5) at the top left corner with the three lock screws (4) . (Fig.4)
- While holding the door, insert the axis core into the door’s (7) upper left hinge’s
hole. Fix the left bottom hinges by inserting the axis core first into the door’s lower
left hinge’s hole (6). Then tie the lower left hinge to finish the door replacement. (Fig.
5)
