Vintec V50SG e - V40 Models: 30 mm Recess Door Reversal; V40 30 mm Plinth Door Removal; V40 30 mm Plinth Hinge Replacement

14
V40 models (30mm recess plinth)

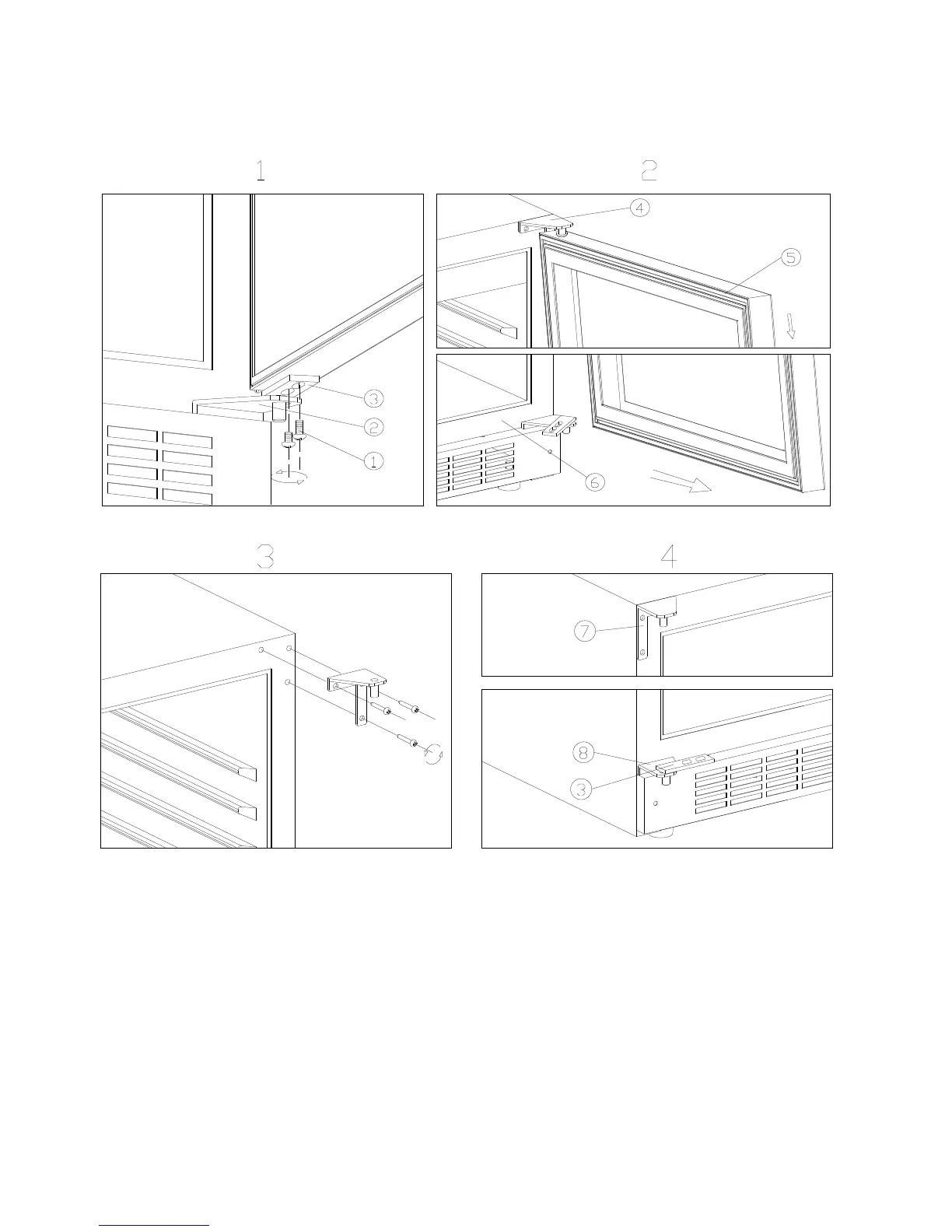

1 Lock screws 2 Lower hinge (Right) 3 Door axis
4 Top hinge (Right) 5 Door 6 Cabinet body
7 Top hinge (Left) 8 Lower hinge (Left)
- Unscrew the lock screws (1); (Fig. 1) to remove the door axis located at the bottom.
- While holding the door firmly, pull the door (5) outward and take it out; (Fig. 2)
- Remove the 3 bolts and take out the right top hinge (2); (Fig. 3)
