Vintec V50SG e - V50 Models Door Reversal; V50 Model Door Removal; V50 Model Hinge and Door Reinstallation

16

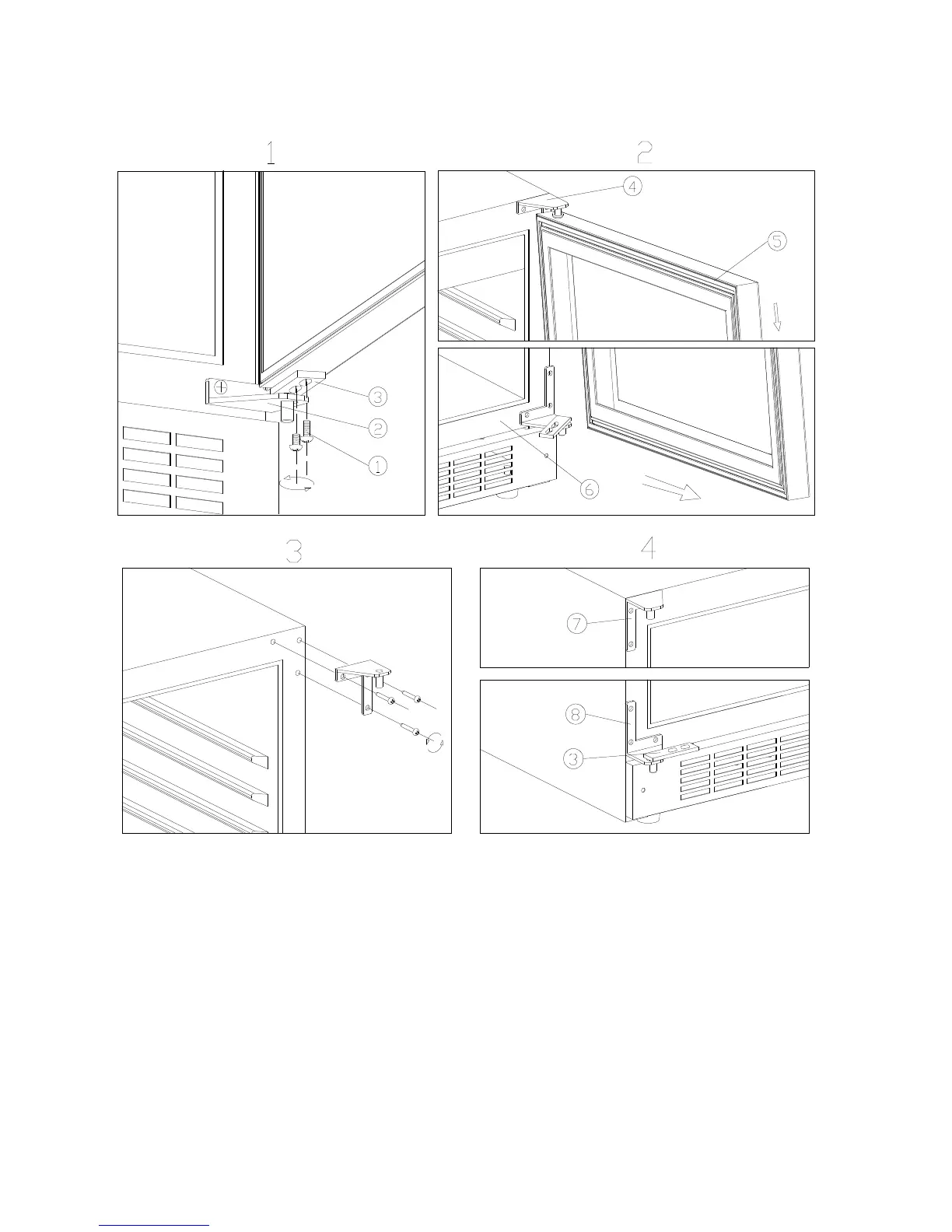

V50 models
1 Lock screws 2 Lower hinge (Right) 3 Door axis
4 Top hinge (Right) 5 Door 6 Cabinet body
7 Top hinge (Left) 8 Lower hinge (Left)
- Remove the lock screws to untied the door axis at the bottom of the door (Fig 1)
- While holding the door firmly, pull the door (5) outward，take it out；(Fig. 2/4)
- Remove the Right Top hinge, (Fig 3).
- Install the left top hinge and left lower hinge , with bolts as per Fig. 4
- Put the door in position between the hinges and fix the door axes (3) onto the door.
