The EFP Quickfit™ adaptor [15] is installed on the slide plate ex factory (Fig. 7). To mount the
camera attach the wedge adaptor in the middle position on the camera slide plate using the two
3/8 in. BSW camera screws in accordance with the instructions supplied with the camera.
To fit the camera to the head, proceed as follows:
Engage the centre lock [2] (Fig. 6).
Insert the forward edge of the camera wedge into the EFP Quickfit™ adaptor [15]
(Fig. 7).
Push the wedge down until the lock bar clicks out.
Slide the safety lock plate backwards to hold the lock bar in position.
Install the remainder of the payload (lens, zoom and focus controls, viewfinder, prompter etc).

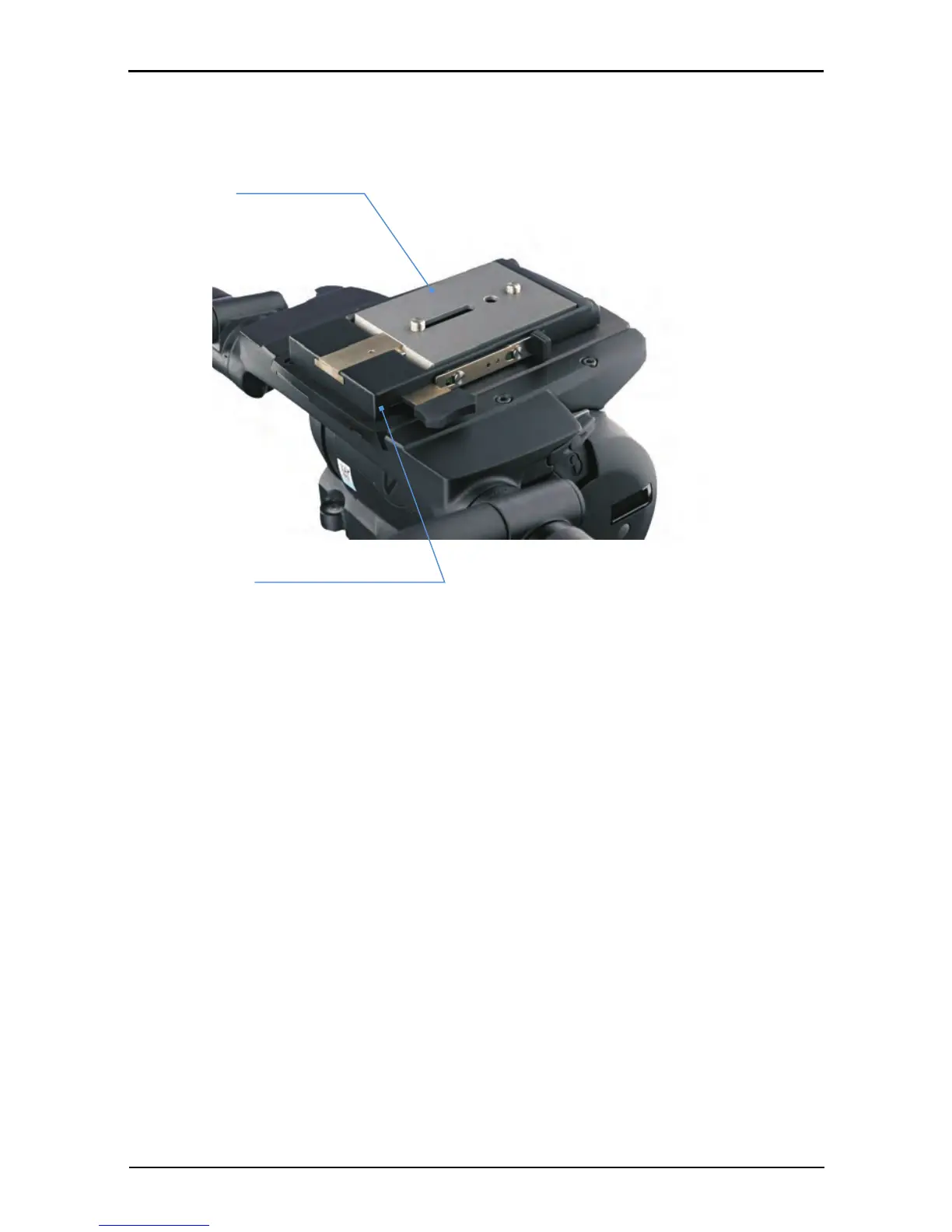

Fig. 7 EFP Quickfit adaptor and wedge adaptor
